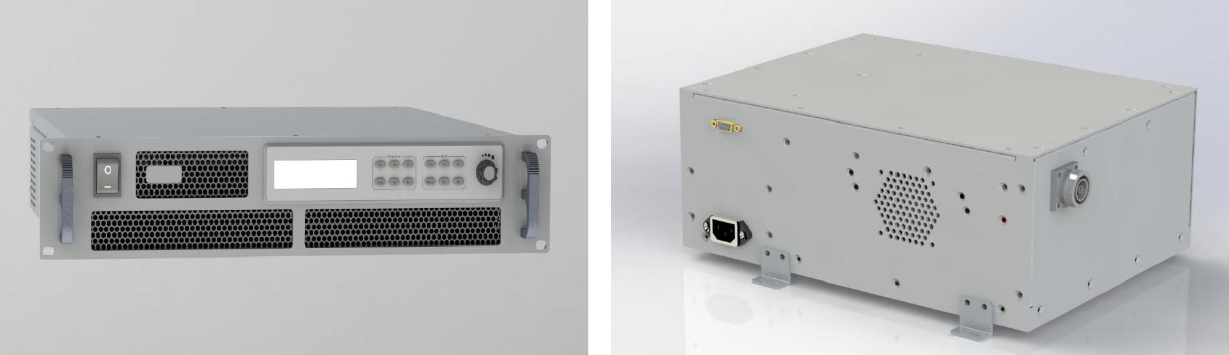

RF power supply product introduce

The RF power supply uses the stable and reliable power amplifier and the company's core DC control system, so that the product has very stable performance and high product reliability. And provide a variety of models and series, each model and series has different power levels and output frequencies. Chinese and English display interface, easy to operate.

Product Planning

Product series: fixed frequency power supply, wideband power supply, hand / automatic matcher

Frequency planning: 2MHz, 4MHz, 13.56MHz, 27.12MHz, 40.68MHz, 60MHz;

Power planning: 0.75kW to 5kW;

Cooling method: air cooling within 1kW, water cooling above 1kW

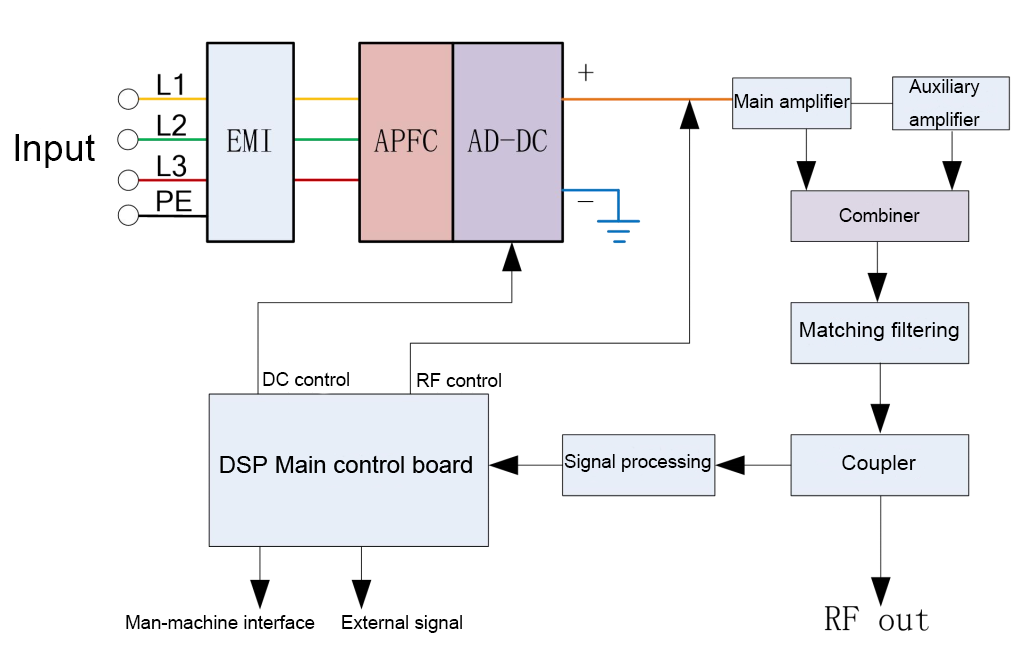

System chart

APFC: Incoming line Power Factor Correction

AC / DC: Power amplifier power supply, adjust the output voltage to change the output power

Main control board: signal processing, function control and RF amplifier control

Amplifier: Switching type amplifier, including signal source (crystal generated), drive and amplification

Combiner: Combiner of output power signals

Matching filtering: main reactance transformation, output 50 ohms

Coupler: forward and reverse power detection

Features of RF power supply:

1. AC 220V and 380V input voltage optional;

2. The incoming line has an APFC module to improve the input side power factor;

3. The frequency conversion series has the function of automatic load matching, which can work and switch under fixed frequency and frequency conversion;

4. With advanced software algorithms, such as: heuristic intelligent frequency tracking, intelligent power limit algorithm, etc .;

5. Using NXP power amplifier chip, high precision 16-bit synchronous ADC;

6. Full digital control, high stability and rich operation menu;

7. RS232, EtherCAT, EtherNET communication interface;

13.56MHz Main Specifications

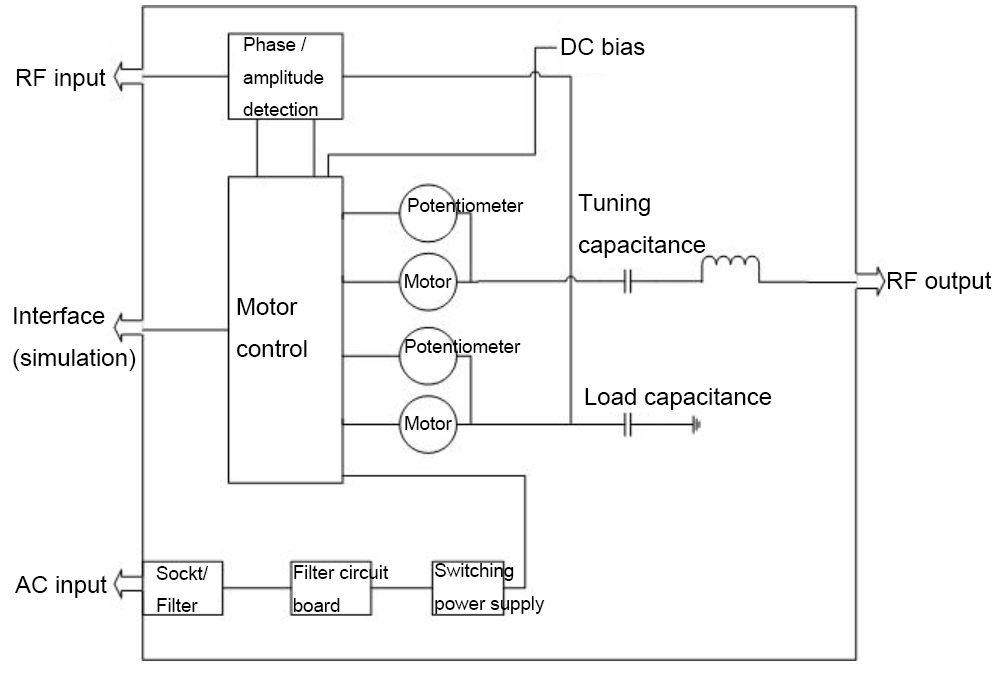

RF Matcher Block Diagram

RF matcher description

RF input and RF output: The RF power source inputs power into the matcher network, and the power is adjusted by the matcher and then connected to the load.

Load capacitance and tuning capacitance: The matching network structure adopts L-type topology, and the load capacitor and tuning capacitor are variable capacitors.

AC input: matching network control power supply.

Phase / amplitude detection: The RF power is connected to the matching network through the RF generator on the phase / amplitude sensor module. The phase / amplitude module provides phase and amplitude signals to the motor control section, thereby controlling the rotation of the load capacitor and tuning capacitor.

Motor control: The phase and amplitude signals are used to generate the driving signals required by the motor for adjustment. Manual control and automatic control can be set. Adjust the position value and limit value of the capacitance through the voltage provided by the potentiometer. After the motor reaches the mechanical limit value, it needs to rotate in the reverse direction.

DC bias: The DC bias voltage is provided by the PCB board and the motor drive control board. The DC bias board provides voltage divider. motor drive board rectifies dc offset voltage, so that the make the interface DC bias voltage always positive.

Matcher main technical indicators
