8 Channel Battery Charge Discharge Electric Tester with Software 8 Channel Battery Charge Discharge Electric Tester with Software 8 Channel Battery Charge Discharge Electric Tester with Software

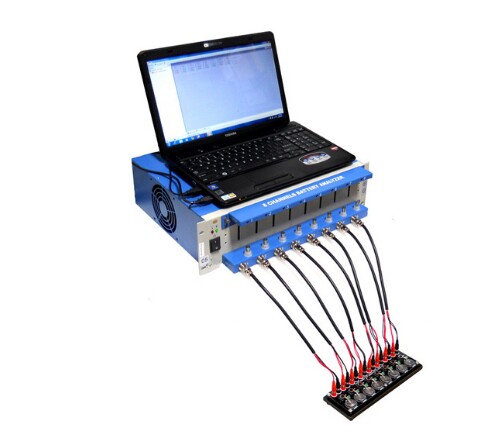

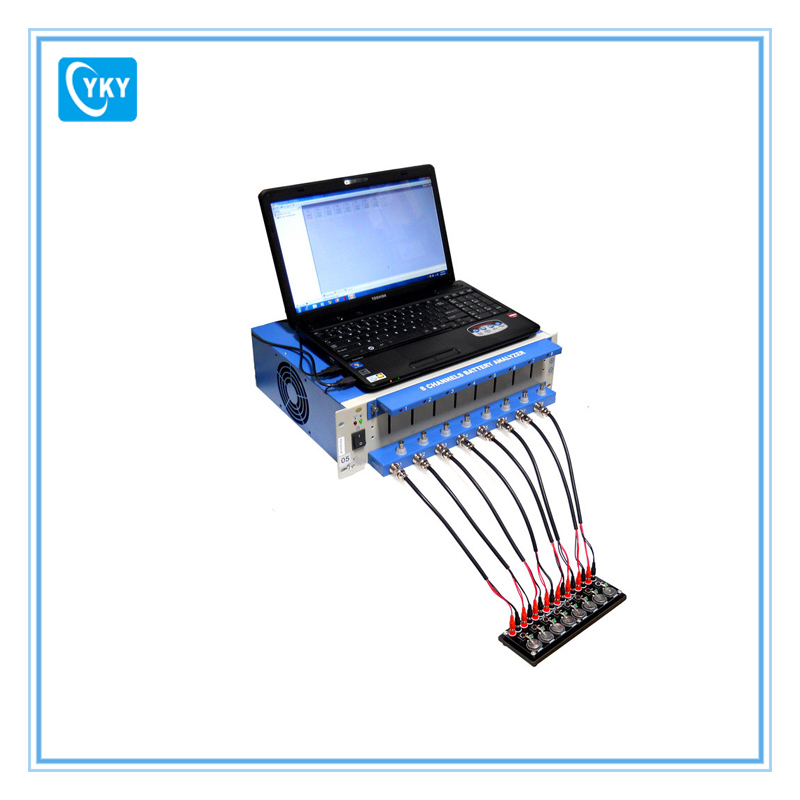

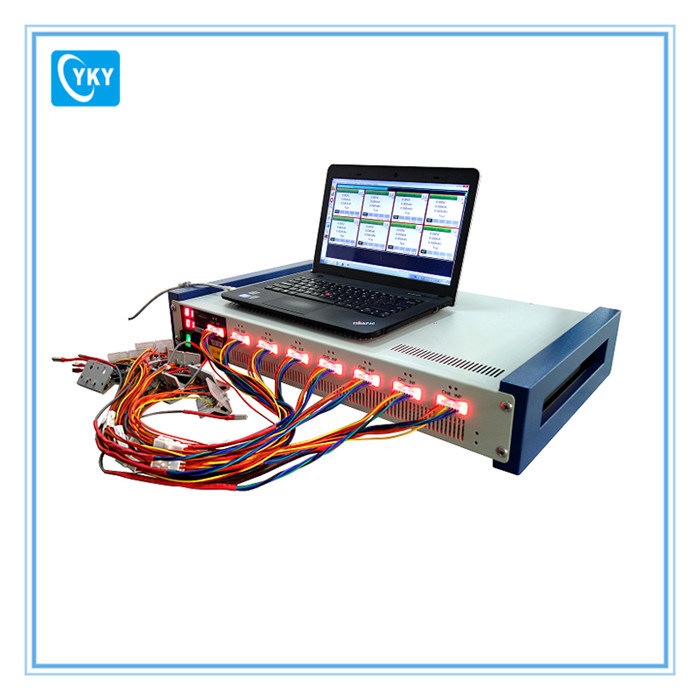

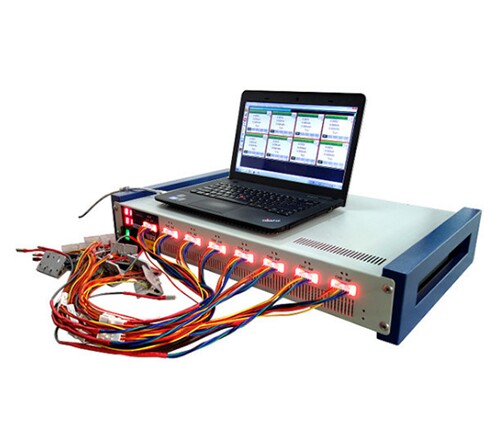

8 Channel Battery Charge Discharge Electric Tester with Software

    Equipment Model :BTS-5V3A Battery Testing Equipment     Equipment Item Code:CT-3008W-5V3A-164

Basic Info


  • Model NO.: CY- BST8-WA

  • Test Region: Charge and Discharge

  • Customized: Customized

  • Testing Sample: 4-Wire Connecting

  • Record Frequency: 1Hz

  • Certificate: Ce

  • Transport Package: Wooden Box

  • Origin: Zhengzhou, China

  • Type: Finished Batteries Tester

  • Application: Lithium-ion Battery

  • Input Power: 224W

  • Noise: <85dB

  • Warranty: One Year

  • Trademark: CY

  • Specification: 5V 3A

  • HS Code: 85141090


Product Description


BTS-5V3A Battery Testing Equipment

Equipment Model :BTS-5V3A Battery Testing Equipment     Equipment Item Code:CT-3008W-5V3A-164

Project indexParameter index
Input PowerAC 220V ±10% / 50Hz
resolutionAD:16bit;DA:12bit
Input Resistance≥1MΩ
Input Power224W
Channel FeaturesConstant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control ModeIndependent Control
VoltagePer Channel Voltage Range10mV~5V
Discharge Min Voltage0.8V
Accuracy± 0.1% of FS
Stability± 0.1% of FS
CurrentPer Channel Current Range6mA~3000mA
Accuracy± 0.1% of FS
Stability± 0.1% of FS
PowerPer Channel Output Power15W
Stability± 0.2% of FS
TimeCurrent Response Time1ms (0-Full Range)
Step Time Range≤(365*24 )hour/step,
             Time Form Support 00:00:00(h,min:s,ms)
Data RecordingRecord ConditionTime△t:1S-60000S
Voltage△U:10mV-5V
Current△I:6mA-3000mA
Record Frequency1Hz
ChargeCharge ModeConstant Current Charge,Constant Voltage Charge,
             Constant Current and Constant Voltage Charge
End ConditionVoltage,Current,Relative Time,Capacity
DischargeDischarge ModeCCD,CPD
End ConditionVoltage,Current,Relative Time,Capacity,
PulsechargeCCC
DischargeCCD
Min Pulse Width500ms
Automated SwitchAutomated switch from charge to discharge for each pulse
End ConditionVoltage, Test Time
CycleLoop Measure Range1~65535 times
Max Steps Per Loop63
Nested LoopNested loop Function,Max Support 3 Layers
ProtectionSoftware Protection
  1. Power-down Data Protection

  1. Off-line Testing Function

  1. Setting Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage limit,Low Current limit,Upper Current limit,Delay Time

Hardware ProtectionAdditional Anti-reverse Protection Model
Voltage and Current Testing Sample4-wire connecting
Noise<85dB
DatabaseMySQL Database
Data OutputEXCEL2003/2010,TXT
Communication InterfaceR232
Per Unit Main Channels No.8
Dimensions3U,480*330*130(mm)
