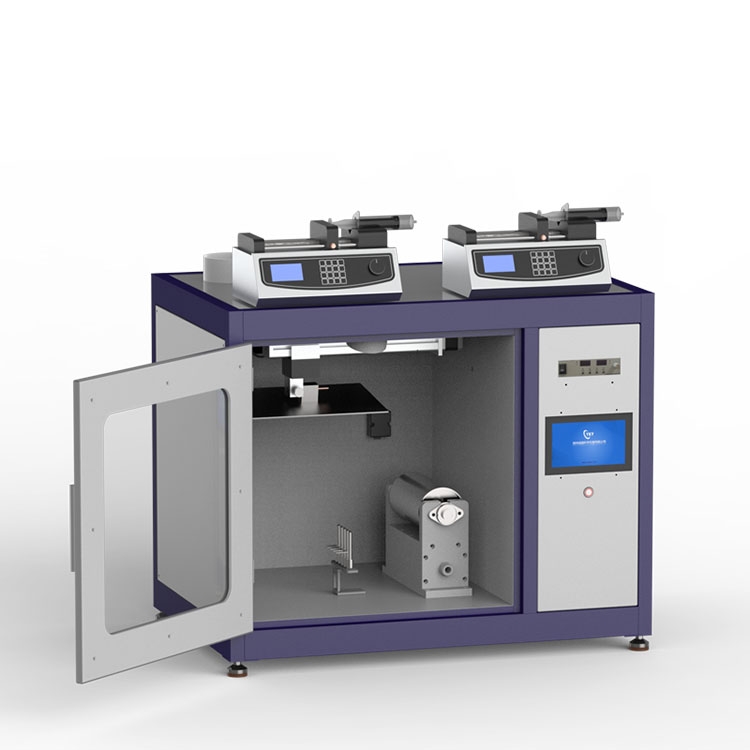

high-voltage electrospinning machine produced by our company is a device for preparing ultra-fine fibers based on electrospinning technology by using polymer solution or melt to spray in a strong electric field
The spinning head has multiple nozzles and the number of nozzles is optional. The bracket can be adjusted to obtain the best spinning distance and non-woven fabric with different width. The high-voltage power supply can provide long-term stable electric field and the electric field strength for electrospinning is 0-30kV.
Compared with the traditional laboratory electrospinning equipment, the whole set of instruments has more outstanding integrity, controllability and consistency, and is safe, efficient and highly integrated.
NanoFiber Electrospinning technical parameters:
Item | Detail |
Supply voltage | AC220V，50Hz |
Total power | 2.5KW |
High voltage power supply | Input voltage | 0-30kV |
Max current | 0.5mA |
Heating source | Heating method | Infrared heating tube |
Max temperature | Substrate temperatures up to 60℃ |
Max heating power | 1000W |
Syringe pump （2 set） | Syringe capacity | 2.5ml~60ml |
Flow range | 2.779μl/min~72.24ml/min |

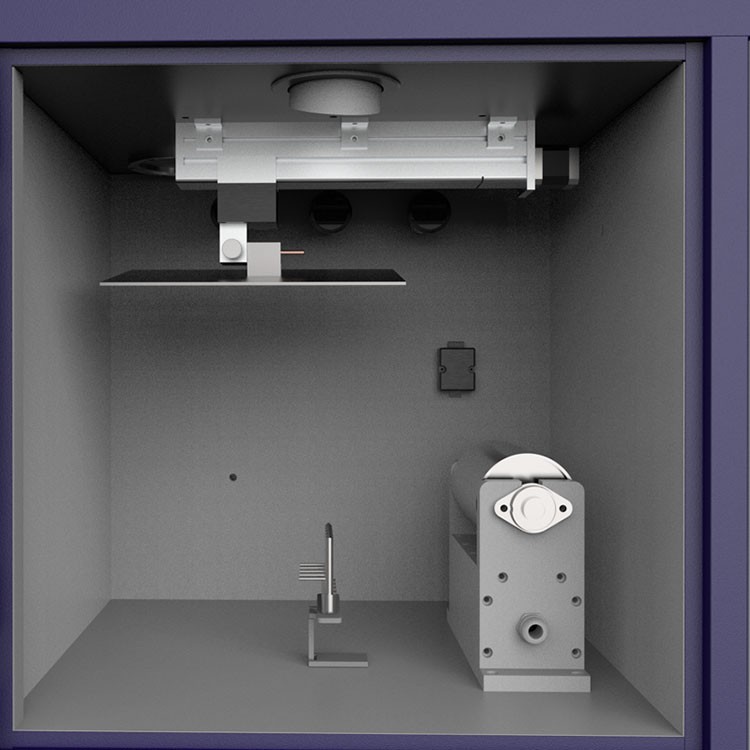

Collector | Roller type | 200mm × φ100, 25, 12, 7, 6.0, 2.0mm; you could choose size Actuator: brushless motor; mandrel shaft speed: 300-6000 rpm; used for electrospinning |
Lab Nozzle | 5 NOZZLES LINEAR ARRAY SPINNERET | Supply kinds of nozzles, Optional inner and outer diameter |
