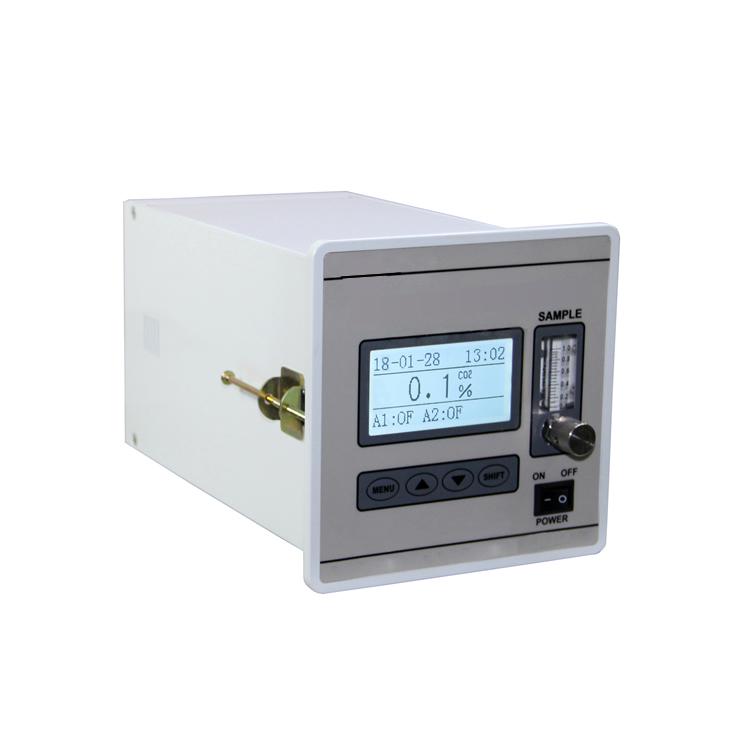

Infrared carbon dioxide analyzer

Infrared carbon dioxide analyzer

    Infrared carbon dioxide analyzer is based on the infrared absorption principle, there is no abrasion on the measurement part thus no need to maintain. It is of good selectivity to the tested gas. The built-in temperature compensation sensor can reduce the error from temperature change on the measurement.

Infrared carbon dioxide analyzer is used for welding and cutting proportional gas.

Infrared carbon dioxide analyzer main features:

1.Friendly communication menu makes the operation visual and simple;

2.Long calibration interval cycle, high accuracy and reliable stability;

3.Function of storing 5000 history data allows users to look through the historic data at any time;

4.With the standard RS232(default)or RS485 communication port carried by it,the analyzer can do bidirectional communication with the computer;

5.The installation mode of frame mount makes it easy and convenient to install;

6.With power supplied at a wide range, the influence from mains fluctuation on the analyzer can be eliminated;

Infrared carbon dioxide analyzer technical parameters:

Test principle

 infrared   principle

Display mode

128×64   matrix dot LCD

Test range

0 ~   30/50/99.9% CO2

Resolution

 0.1%

Accuracy

≤±1%FS

Repeatability

≤±1%

Response time

T90≤15S

Analog output

4-20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm)

0-10V.DC(non-isolated output, loaded resistance higher than 10k Ohm)

1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)

Communication port

RS232(default)or RS485

Power supply

AC170 ~ 264V 50/60Hz  power dissipation less than 10VA

Sample gas temperature

-10℃ ~ +50℃

Environment temperature

80RH

Sampling mode

sample gas pass-in

Sample gas flow

400 ~ 600ml/min

Sample gas pressure

0.05Mpa≤entrance displayed pressure≤0.35Mpa,steady pressure environment

Background gas

CO2 and inactive gas

Appearance Size

155mm×155mm×290mm(H×W×D)

Install Hole Cut

135mm×135mmH×W

Serving life

>40 months (under normal use)

Gas circuit port

Φ6   plastic pipe inlet and outlet

Install mode

frame mount
