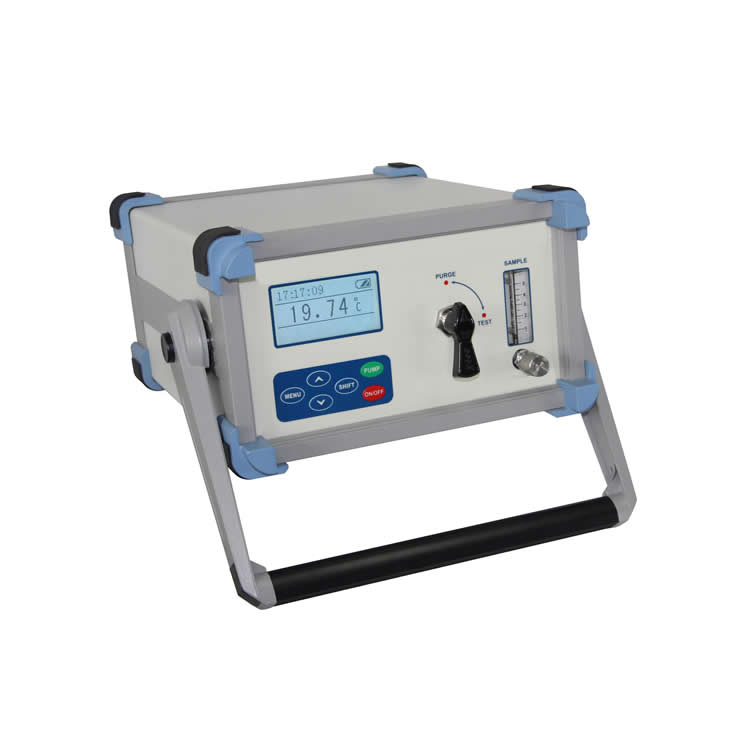

Portable dew point analyzer

Portable dew point analyzer

    Portable dew point analyzer has a friendly communication menu to make the operation visual and simple. All the sampling pipes inside the analyzer adopt stainless-steel pipes with internal and external polished.The unique gas circuit  design is with good hermeticity, permeation-proof and anti-hydroscopicity for features.

Portable dew point analyzer can be widely used in the portable analysis of trace water concentration under explosion-proof occasion in petroleum industry, chemical industry, desiccant manufacturer and user, SF6 dew point measurement of electronic power system, food production industry, plastic substrate drying industry, machine manufacturing industry and air separation industry, etc.

Portable dew point analyzer main features:

1.The imported built-in full-compensating capacitive gas sensor with high performance;

2.The unique function of sensor protection could improve the response speed of the analyzer efficiently;

3.Function of storing data automatically allows users to look through historic data at any time;

4.With the built-in large-capacity lithium battery, the analyzer of inserting mode can be used continuously for a month and the analyzer with sampling pump built in can be used continuously for 20 hours at one charge;

5.Built-in extraction pump (optional).

Portable dew point analyzer technical parameters:

Test principle

thin-film capacitor

Display mode

128×64 matrix dot LCD

Test range

basic type,-60 ~ +20

standard type,-80 ~ +20

expansive type,-100 ~ +20

Resolution

0.1

Accuracy

≤±2

Repeatability

≤±1.5

Stabilization

≤±1.0%FS/7d

Response time

-40→-105s(10s)

-10→-4015s(240s)

Working temperature

-10 ~ +50

Sampling mode

sample gas pass-in or extraction

Sample gas flow

2 ~ 4L/min

Sample gas pressure

(without pump) 0.05MPa≤entrance displayed pressure≤ 0.35MPa

Sample gas pressure

(with pump) micro-positive pressure, micro-negative pressure or ordinary pressure

Background gas

HeH2CO2N2inactive gas

Appearance Size

155mm×260mm×340mmH×W×D

Serving life

48 months (under normal use)

Gas circuit port

NPT 1/8 internal thread

Power supply

AC220V±10% 50/60Hz transferred to D12V 2.5A

Install mode

portable charging
