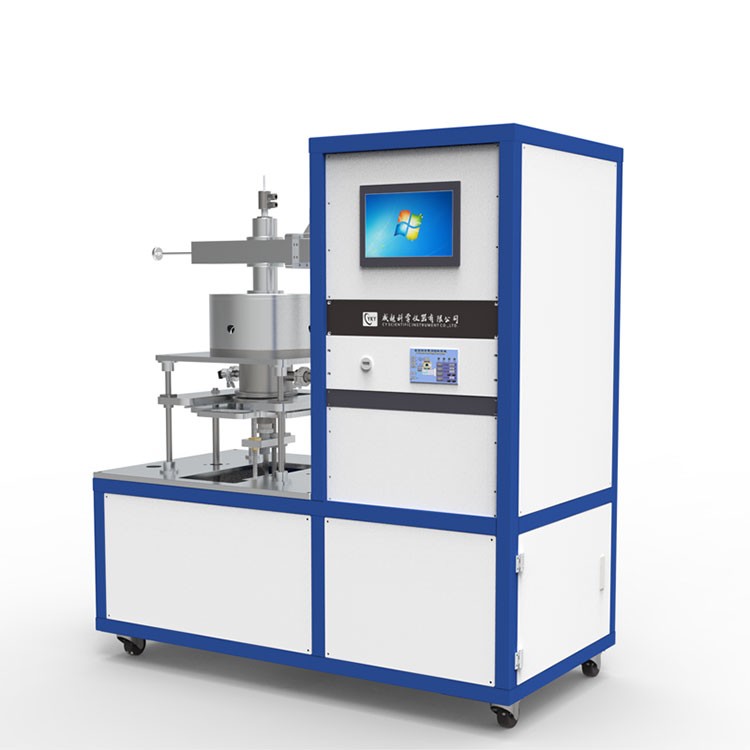

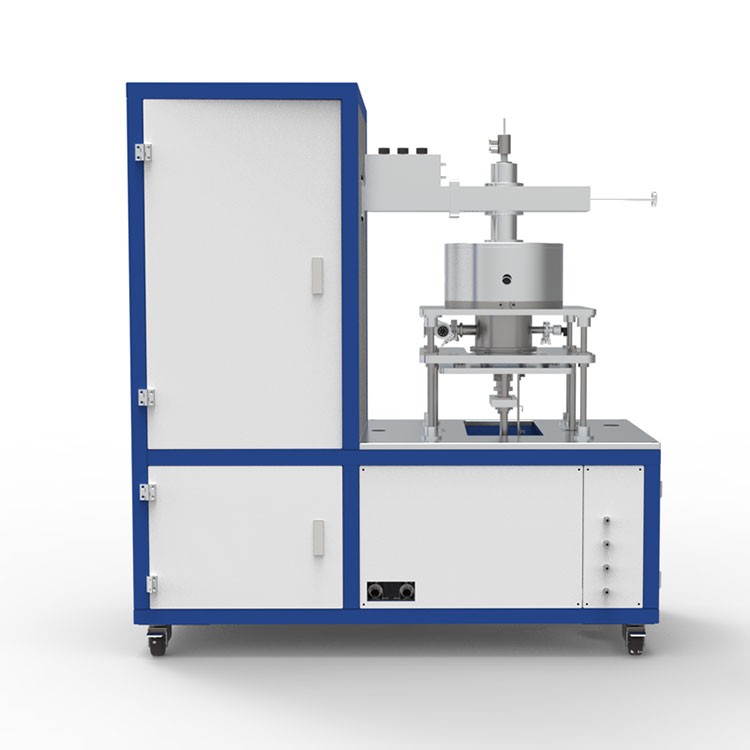

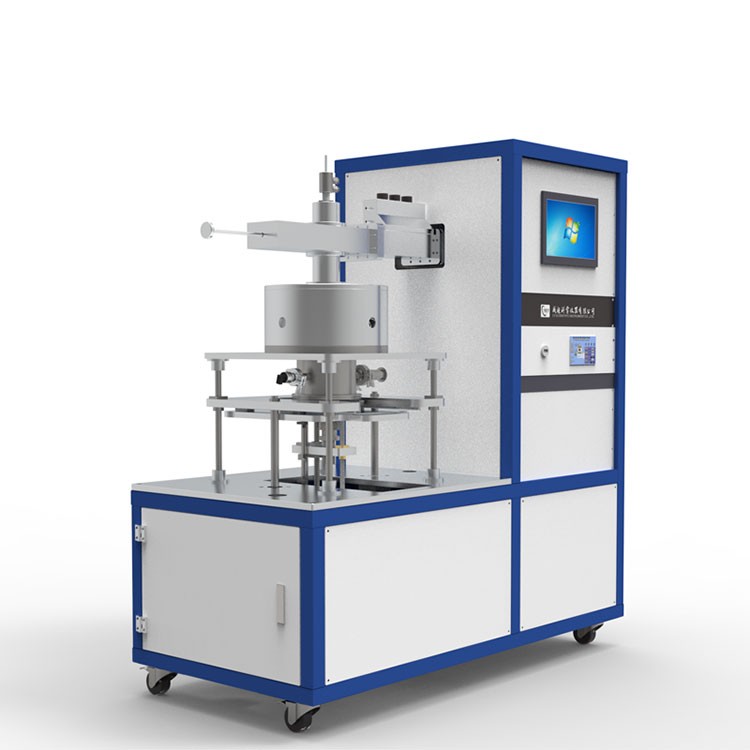

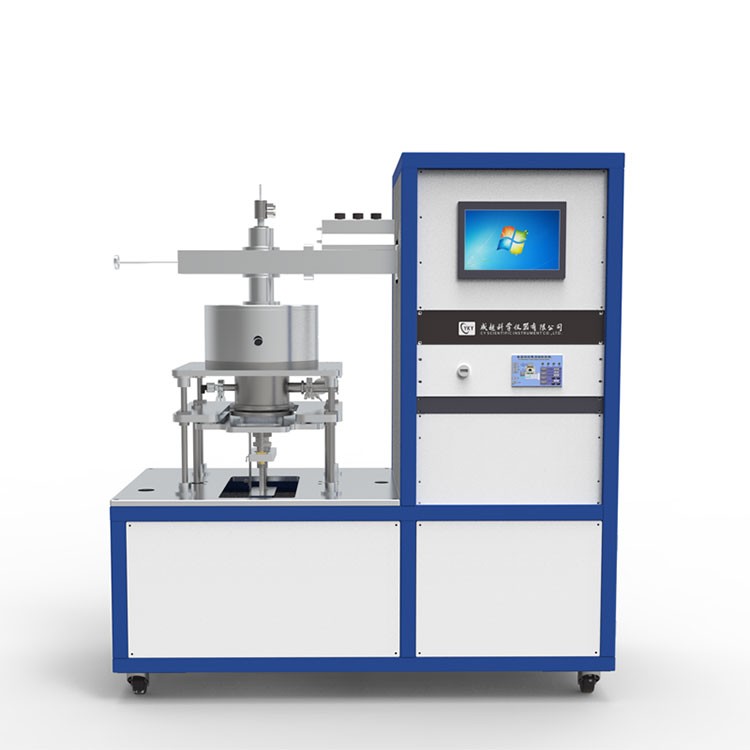

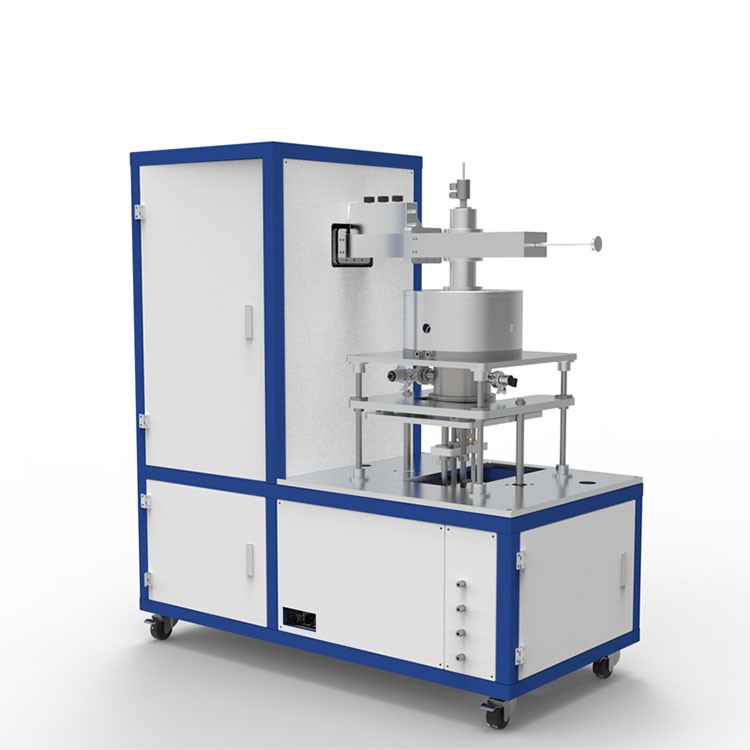

MPCVD single crystal diamond deposition equipment

    Preparation of High Quality Single Crystal Diamond by Chemical Vapor Deposition

    Preparation of high-quality polycrystalline diamond self-supporting thick films by chemical vapor deposition

    Preparation of High Quality Polycrystalline Diamond Thin Films by Chemical Vapor Deposition

    Preparation of various carbon nanofilms such as graphene, carbon nanotubes, fullerenes and diamond films by chemical vapor deposition


Suitable applications:

Preparation of High Quality Single Crystal Diamond by Chemical Vapor Deposition

Preparation of high-quality polycrystalline diamond self-supporting thick films by chemical vapor deposition

Preparation of High Quality Polycrystalline Diamond Thin Films by Chemical Vapor Deposition

Preparation of various carbon nanofilms such as graphene, carbon nanotubes, fullerenes and diamond films by chemical vapor deposition

MPCVD single crystal diamond deposition equipment

Features:



This product is a stainless steel cavity type 6kw microwave plasma equipment with high power density;

Water-cooled substrate stage and water-cooled metal reflection chamber ensure that the system can work stably for a long time;

The substrate temperature is achieved by microwave plasma self-heating;

The vacuum measuring instrument adopts a full-scale vacuum gauge, which can accurately measure the background vacuum and working gas pressure;

The vacuum pump and valve use turbo molecular pump (the ultimate vacuum is 1×10-5Pa) and rotary vane mechanical vacuum pump (the ultimate vacuum is 1Pa), and the system can automatically control the deposition pressure;

Equipped with cooling water circulation system to ensure long-term safe and stable operation of the device under high power;

The system has a 15-inch touch screen, PLC automatic control, constant temperature or air pressure can be set, and up to 20 sets of process files can be saved and reused;

Fully automatic process control module for stable and reliable preparation of high-quality diamond films and crystals

Specifications and Characteristics

Project name

Specification

Configure

Main control   unit


PLC automatic   program control

Microwave   source

6kw  2.45Ghz

Microwave power

Microwave generator

Waveguide

6kw

three pins

Mode converter

6kw


Resonant cavity

6kw

Cylindrical   water cooling chamber

Abutment

φ70mm

Electric lift

Basic   parameters of diamond growth


7x7mm   37 PCs

8x8mm   29 PCs

9x9mm   21 PCs

10x10mm  13 PCs

MFC (Proton   Flow Meter)

5 way

Ch4  0-500sccm

H2   0-500sccm

N2  0-500sccm

Ar   0-500sccm

O2   0-500sccm

Temperature   measuring element


High precision   infrared thermometer

Vacuum   measurement


High Precision   Vacuum Gauge

Molecular pump


Default   None/Optional

Hydrogen   purification


9N class

Water cycle


3P water   cooler
