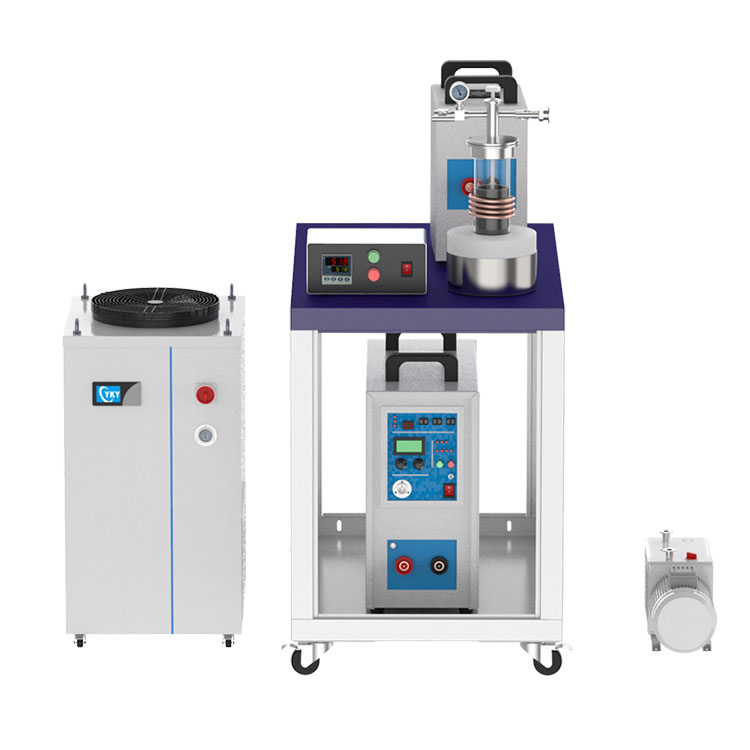

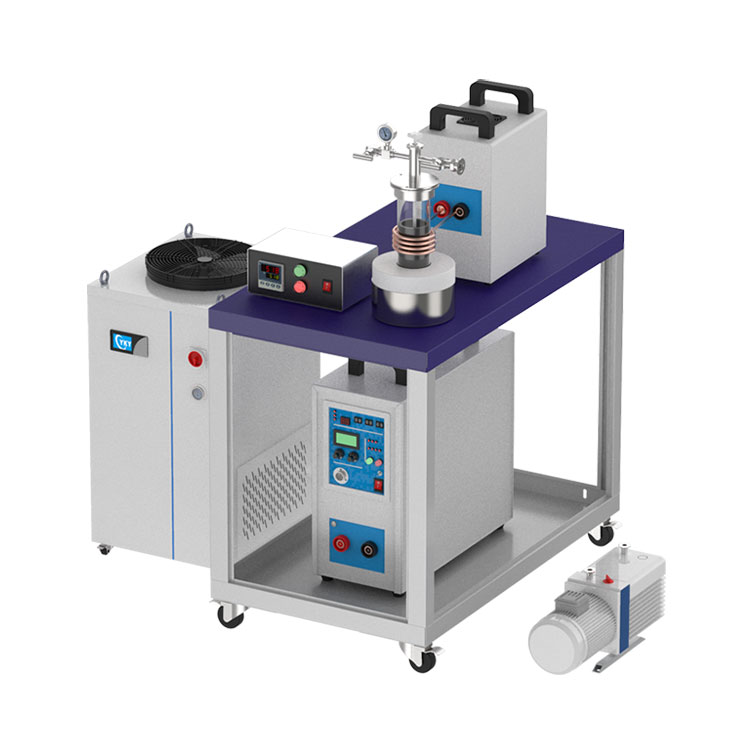

Working Voltage: 220V AC, 50/ 60 Hz, Three Phase
Working Current: 42 Amp (50A breaker required)
Max. Input Power: 15KW
Output Frequency: 30 - 80 kHz Adjustable
Duty Cycle: 80%
Induction Coil: 95mm(OD) x 85mm(ID) x 50mm(H)
Auto Heating Time: 1-99 seconds
Auto Dwell Time: 1-99 seconds
Auto Cooling Time: 1-99 seconds
Air Cooling: Rear Fan
Protection: Automatic water pressure, over-temperature, and overpower protection
& Graphite Crucible

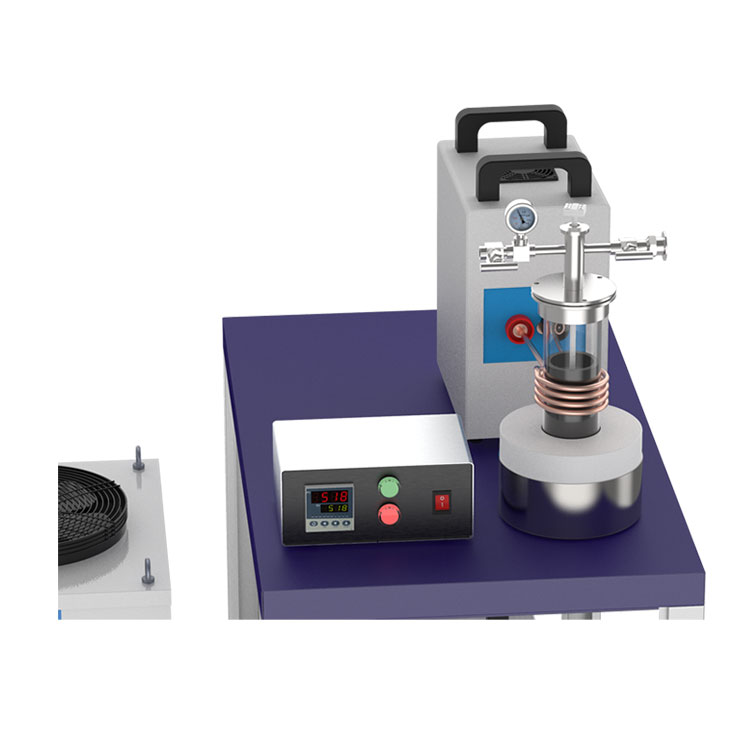

Stainless Steel Flange with high-temperature silicone o-ring and self-tighten structure
Two valves and vacuum gauge installed on the flange.
KF25 connector and 1000mm long SS pipe is included for connecting to the vacuum pump
High Purity Graphite Crucible: 2.285"(OD) x 1.415"(ID) x 3.05"(Deep) Crucible (79mL) included for heating and melting
Complete refractory assembling made of alumina, including bottom crucible support, crucible holder, and cover.
One chamber shield is included to protect the chamber from foreign objects damage as well as containing the exploded piece of the chamber.
This induction heating system can reach 2000℃ via graphite heater
No temperature controller. The temperature will be determined by sample melting via adjusting current
If you need accurate temperature control, please order the induction heating system at CYKY
Temperature range: 5 - 30℃
Water Flow Rate: 16 L/min
Water Tank: 12 Liters made of stainless steel
Note: It is recommended to use the specific coolant to get the best performance.
For US customer, 110V water chiller will be included
One 156L/m Rotary Vane Vacuum Pump is included
Rate: 156 L/min
Max. Power Consumption: 0.4KW / 0.37KW
For US customer, 110V Vacuum pump will be included
Heavy Duty Mobile Cart
For Non-UL Certified version, a protective shield made of phenolic sheets will be provided.
For UL Certified version, a clear protective shield made of polycarbonate will be provided.
The protective shield is to be placed around the quartz tube to contain the shooting glass shards if accidents were to happen.
Induction Heater: 18.5"(L) x 12"(W) x 17"(H) (470mm x 300mm x 430mm)
Water Chiller: 18"(L) x 8.7"(W) x 28"(H) (460mm x 220mm x 530mm)
Heavy Duty Mobile Cart: 600mm(L) x 800mm(W) x 597mm(H)
One year limited warranty with lifetime support
Consumable parts such as processing tubes, o-rings, and heating coil are not covered by the warranty
The heater will shut down if over output occurs. Please reduce coil cycle number or sample size to keep the heater operating under Max power
Melting time and temperature are related to materials, the crucible, refractory insulation, etc. If you do not know whether the induction heater can melt your sample or not, please contact our engineer for consulting. Have your alloy's composition, melting point, and quantity to be melted prepared
The Induction Melting System is designed for use under vacuum and low pressure < 0.02 MPa / 0.2 Bar/ 3 PSI and the flow rate for gases should be limited to < 200 SCCM ( or 200ml/min
Attention: A pressure regulator must be installed on your input gas tank and have the output gas pressure set below 3 PSI at all times after opening the gas tank with the gas maintained in a continuous flowing condition. Gas build-up with pressure levels exceeding over 3 PSI may cause irreversible damage to the furnace chamber.
Never heat the furnace while the gas release valve is closed and a positive pressure condition exists within the furnace chamber. The pressure gauge must be used to closely monitor the chamber condition at all times during the heating process; please open the gas release valve immediately once the chamber pressure has reached over 3 PSI to prevent unforeseeable damages.
105 kg (230 lbs)
