25KW Induction Heating System with Temperature-Controller up to 1700℃

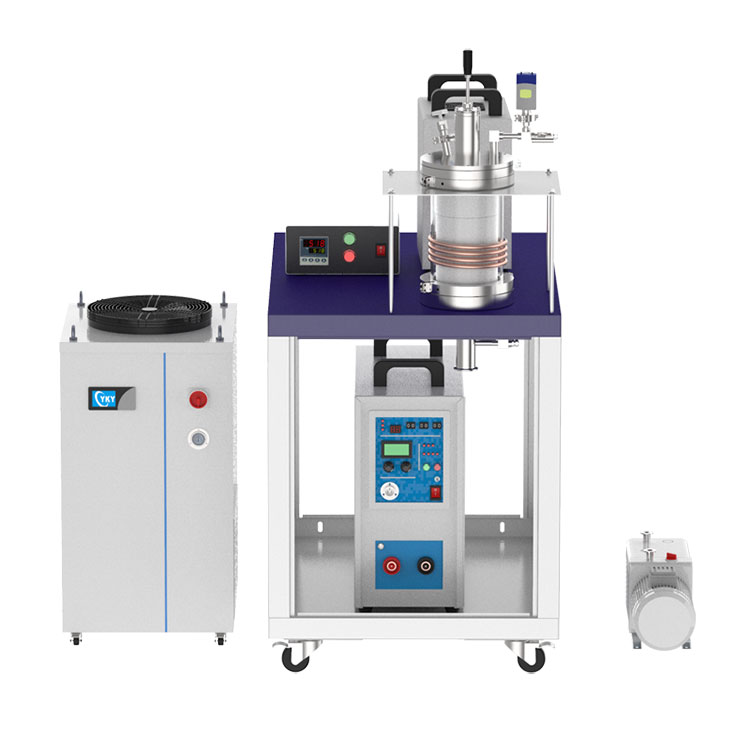

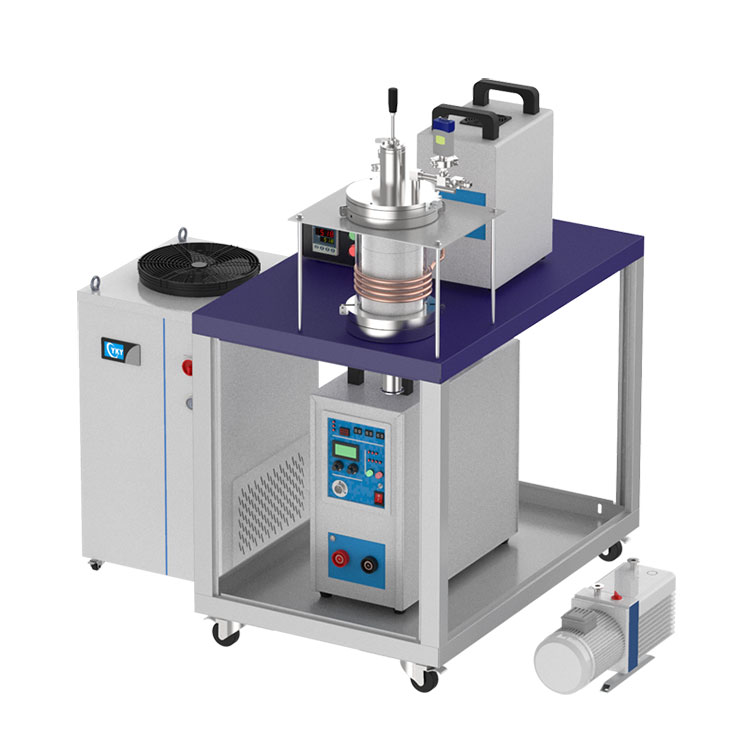

    It is a larger temperature-controlled induction heating/melting system with complete accessories, which includes a 25KW Induction Heater, 11" O.D Quartz Tube with Hinged type Flanges & Valves, Graphite Crucible & Refractory Assembly, 58L/m Recirculating Water Chiller, Vacuum Pump, and Mobile Cart.

CY-11KTC is a larger temperature-controlled induction heating/melting system with complete accessories, which includes a 25KW Induction Heater, 11" O.D Quartz Tube with Hinged type Flanges & Valves, Graphite Crucible & Refractory Assembly, 58L/m Recirculating Water Chiller, Vacuum Pump, and Mobile Cart. It is an ideal tool for melting and sintering new metallic alloys with melting point < 1700℃ (under protective gas environment).

Technical parameters of 25KW Induction Heating System:

Induction Heater

  • Working Voltage: 220V AC, 50/ 60Hz, Three Phases (380VAC, 3phase available upon request)

  • Working Current: 10~86 Amps (100A breaker required)

  • Max. Input Power: 25 KW

  • Output Frequency: 30 - 80 kHz

  • Duty Cycle: 100%

  • Induction Coil: 150mm(OD) x 140mm(ID) x 65mm(H)

  • Air Cooling: Rear Fan

  • Protection: Automatic water pressure, over-temperature, and overpower protection

  • Refractory Assembling: Complete refractory assembling made of alumina, including bottom crucible support, crucible holder, and cover

Temp. Controller & Thermocouple

  • Precision digital temperature controller with Automatic PID tuning

  • 30 segments programmable for controlling heating and cooling rate as well as dwell time.

  • Overheating & thermocouple failure protection.

  • +/- 3 temperature accuracy.

  • Thermocouple: C type ( 1/4"x10"L )

  • Continuous Working Temp. Range: 1000~1700

  • Max. Working Temperature: 1800℃ (for less than an hour)

  • Optional: Eurothermo Controller with +/- 0.5 accuracy at the extra cost

Graphite Crucible & Refractory liners

  • High Purity Graphite Crucible: 6" O.D x 5" ID x        6"H, is included for induction heating.

  • Three-layer special design refractory liner can withstand temperature up to 1800.

  • Note: Graphite crucible is consumable, please click order spare at CYKY

Sealing Flanges & Quartz Chamber

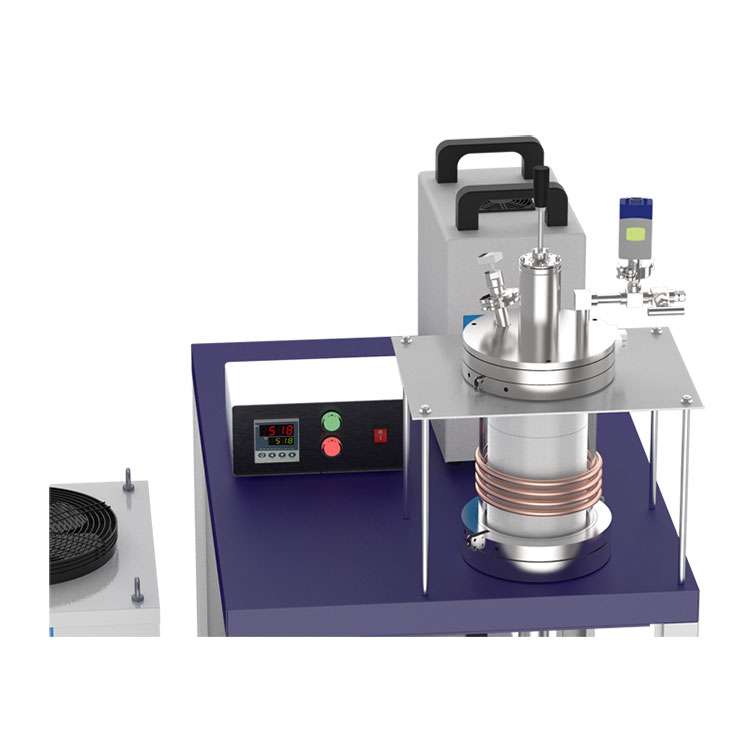

  • Two-end Open Quartz Tube is included with dimensions of  11"OD x 10.6"IDx 20” H

  • Top Flange: Stainless steel hinged type flange with 1/4'' thermocouple feedthrough, needle valve, and the barb fitting.

  • Bottom Flange: Stainless steel flange with a needle valve and KF-25 vacuum port.

  • KF25 right angle valve& clamps and 1000mm long SS bellows are included for connecting to vacuum pump

  • Built-in 0.3 Bar pressure release valve to protect over-pressure accident.

Pressure Sensor

  • Anti-Corrosive Capacitance Diaphragm Gauge (Gas Independent), measurement range up to 3.8x10E-5 torr

  • One 24V,1A DC power adapter is included and ready to use. Input voltage for the adapter is 110~240V Single Phase.

Flow Meter

  • Compact Direct Read Flow Meter, 100-1000 cc/min. with 1/4NPT

  • Accuracy: 4%

  • Optional:  Precision MFC is available upon request at the extra cost

Water Chiller

  • Temperature range: 5 - 30

  • Water Flow Rate: 58 L/m

  • Note: It is recommended to use specific coolant to get the best performance.

Vacuum Pump

  • One 156 L/m Rotary Vane Vacuum Pump is included

  • Rate: 156 L/min up to 10E-2 torr vacuum.

  • Max. Power Consumption: 0.4KW / 0.37KW

  • For US customer, 110V Vacuum pump will be included

  • If you choose high-speed turbo-pump, vacuum level can reach 10E-5 torr

Heavy Duty Mobile Cart

  • Structure: Steel Frame Mobile Cart

  • 600mm(L) x 800mm(W) surface for placing Induction Heater & Quartz Tube with Flange

Protective Sheild

  • For Non-UL Certified version, a protective shield made of phenolic sheets will be provided.

  • For UL Certified version, a clear protective shield made of polycarbonate will be provided.

  • The protective shield is to be placed around the quartz tube to contain the shooting glass shards if accidents were to happen.

Warranty

  • One year limited warranty with lifetime support

  • Consumable parts such as processing tube, thermocouple, refractory liners, o-rings and heating coil are not covered by the warranty

Net Weight

350 lbs
