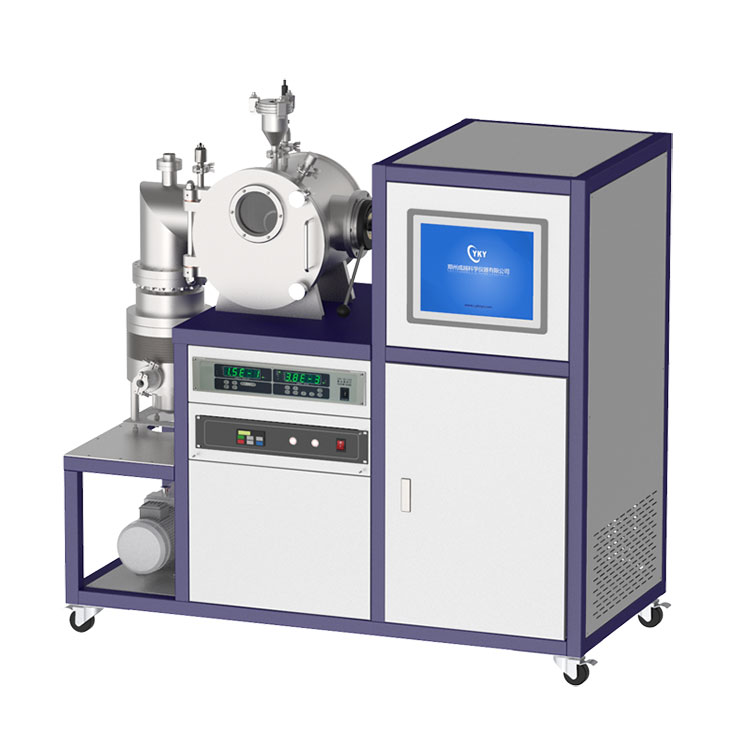

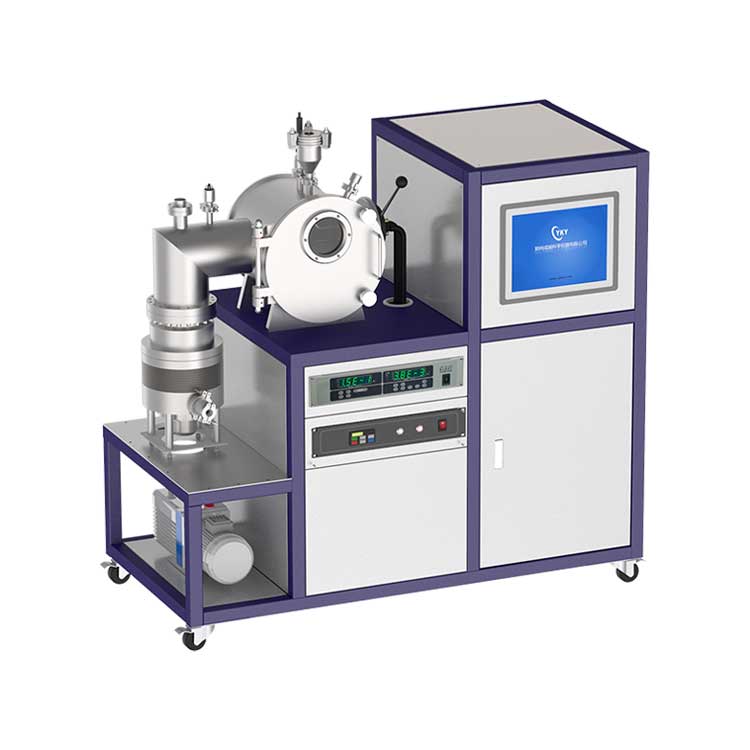

35KW vacuum induction melting furnace with stainless steel water-cooled chamber

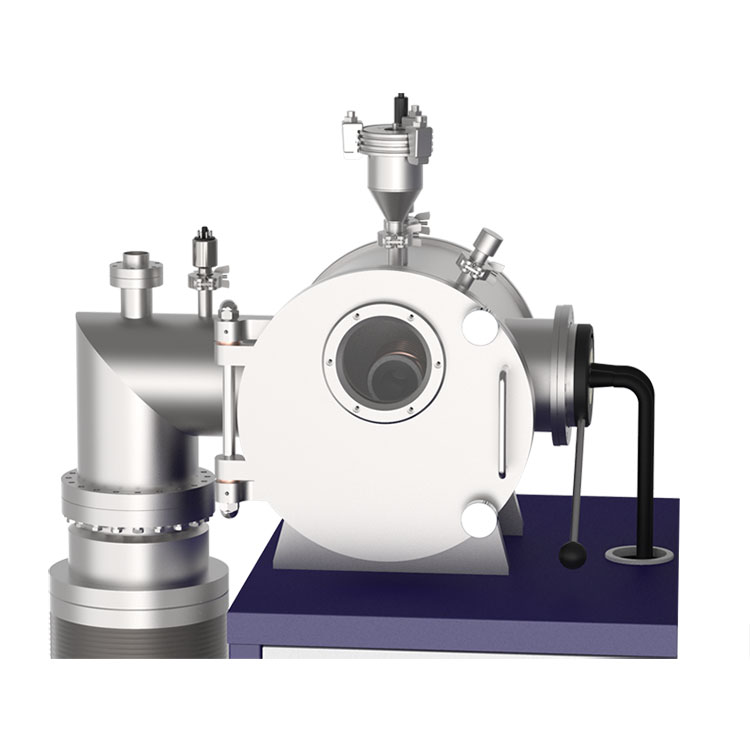

    This product is a vacuum induction furnace with induction heating, equipment melting temperature can reach 2000 ℃. This furnace adopts stainless steel water-cooled chamber, equipped with quartz observation window to observe sample melting, which is suitable for metal sample melting and heat treatment, phase diagram study.

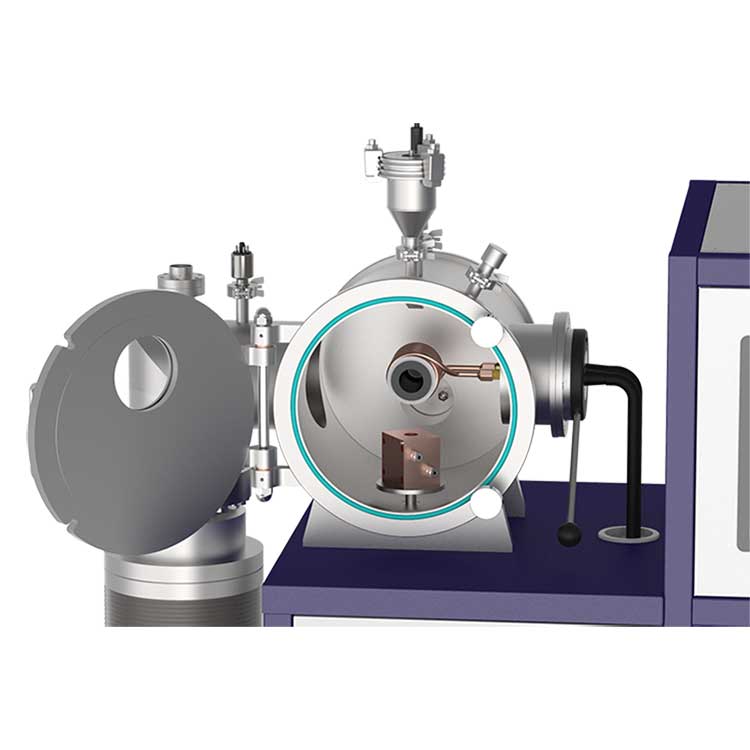

This product is a vacuum induction furnace with induction heating, equipment melting temperature can reach 2000 ℃. This furnace adopts stainless steel water-cooled chamber, equipped with quartz observation window to observe sample melting, which is suitable for metal sample melting and heat treatment, phase diagram study. The equipment uses high-quality high-frequency induction power supply, the largest support for custom 60KW high-frequency induction power supply. The equipment is equipped with a high-vacuum molecular pump set, which can effectively improve the vacuum of the substrate and thereby improve the melting quality. The equipment is also equipped with a lifting platform, a flip handle and a water-cooled copper crucible, which is convenient for the operator to perform casting and sampling operations after melting.

The equipment has comprehensive functions, fast melting, easy to use, energy saving and environmental protection, which is very suitable for laboratory research on metal samples.

Technical parameters of vacuum induction melting furnace:

Vacuum induction melting furnace CY-IM300-35A

Induction power supply

Frequency

high frequency

power

35KW can be customized, the maximum is 60KW

Vacuum chamber

Chamber material

Stainless steel

Chamber size

φ300mm x 300mm

Cooling system

Water-cooled electrode, water-cooled cavity, water-cooled mold

Observation window

Main observation window φ120mm

Lifting platform

0 ~ 40mm lifting range

Accessories

Infrared temperature measurement window, vacuum funnel

Water cooling interface

φ8mm quick plug interface

Vacuum system

Product model

CY-GZK103-A

Molecular pump

CY-600

Pumping interface

CF160

Exhaust interface

KF16

Backing pump

Rotary vane pump

Ultimate vacuum

1.0E-5Pa

Pumping rate

Molecular pump: 600L / S Rotary vane pump: 1.1L / S Comprehensive pumping performance: 20 minutes Vacuum degree: 1.0E-3Pa

Vacuum measurement

Compound vacuum gauge

Power supply

AC 220V 50 / 60Hz

Crucible

Graphite melting crucible

Maximum support φ60mm x 80mm

Alumina insulated crucible

Maximum support φ120mm x 90mm

Other

Supply voltage

AC220V 50Hz or three-phase 380V

Total power

Reference induction power

Overall size

1550mm x 700mm x 1400mm

Total Weight

900kg
