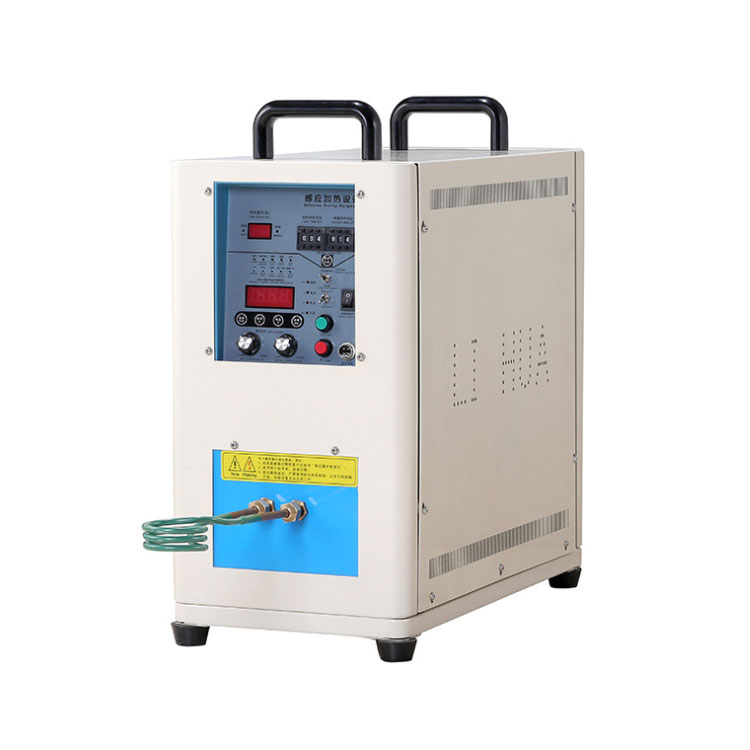

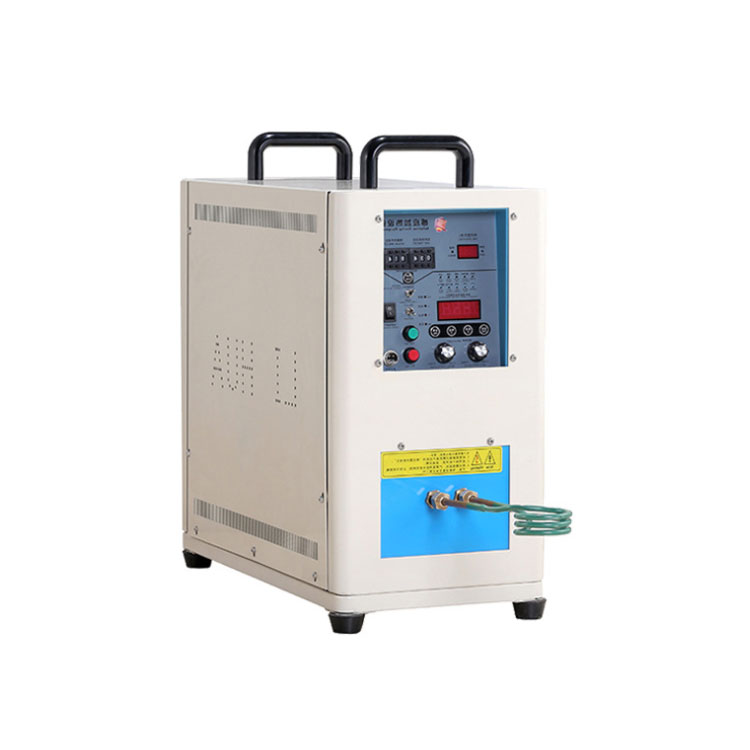

7KW Dual Station Bench Top Induction Heater with Timer Control

    Dual Station 7KW Induction Heater is designed for material research lab to quickly melt and perform heat treating to metallic materials up to 1kg.

Dual Station 7KW Induction Heater is designed for material research lab to quickly melt and perform heat treating to metallic materials up to 1kg. The 2m long power cable allows heating station and the control station being located up to 2m from each other for operation safety.

Technical parameters of induction heater:

Working Voltage

208-240V AC, 50/60 Hz, Single Phase

Max. Input Current

  • 34 Amp  (Min. 40A breaker required)

  • Power cable included (It is suggested to use twist-lock plug with 10AWG power cable)

Output Frequency

30-80 kHz

Heating Current

200-600 Amp

Max. Input Power

7 KW

Duty Cycle

80%

Max. Distance Between Heater and Controller

2m

Max. Sample Weight

1 kg

Option Control Station

  • Automatic timer control or  Manual control selectable

    • Manual Control: by Foot Pedal

    • Automatic Heating Time: 1-99 Seconds

    • Automatic Dwell Time: 1-99 Seconds

    • Automatic Cooling Time: 1-99 Seconds

  • One Port is built in to connect to the temperature controller and thermal couple, which can control temperature automatically via the optional control unit.

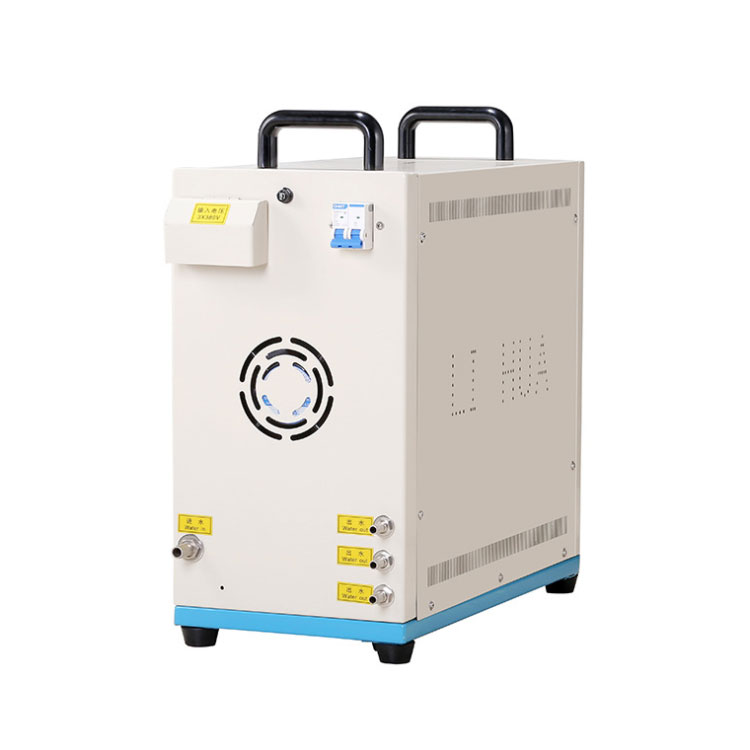

Air Cooling

Rear Fan

Water Cooling

  • Flow rate: 2~5 L/Min

  • Pressure: 0.2 MPa (29 Psi)

  • Protection: Over-pressure and over temperature switch

  • Tap water is acceptable, but using Recirculating Water Chiller is highly recommended.

Induction Coil & Accessories

Two coils with the following dimensions are included:

Coil #1: 76.8mm(OD) x 66.0mm(ID) x 40mm(H)

Coil #2: 82.5mm(OD) x 65.5mm(ID) x 73.5mm(H)

Foot Pedal with Cable  and water connector are included

Display

Digital display shows output power and current

Product Dimensions

  • Control Station: 18" x 8" x 17"

  • Heating Station: 12" x 8" x 13"

Warranty

One Year limited warranty with lifetime support

Net Weight

25 kg (55 lbs)
