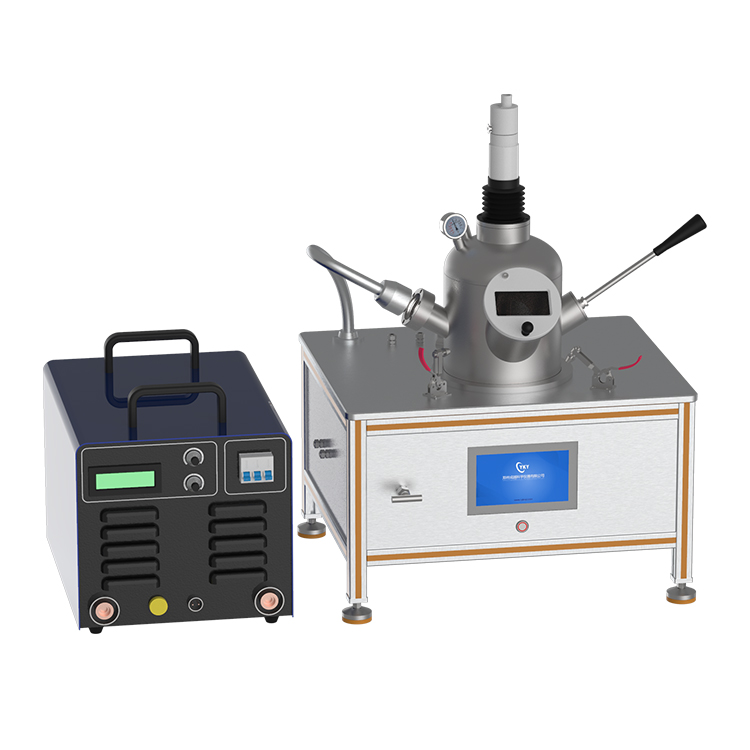

Vacuum arc melting furnace CY-AM180-V7X

Vacuum arc melting furnace CY-AM180-V7X

    This product is a small vacuum arc melting furnace with tungsten electrodes and water-cooled copper crucible. The equipment melting temperature can exceed 3000℃, and the temperature is reduced rapidly. The equipment adopts stainless steel water-cooled chamber and is equipped with a quartz observation window to observe the sample melting condition.

This product is a small vacuum arc melting furnace with tungsten electrodes and water-cooled copper crucible. The equipment melting temperature can exceed 3000℃, and the temperature is reduced rapidly. The equipment adopts stainless steel water-cooled chamber and is equipped with a quartz observation window to observe the sample melting condition, which is very suitable for sample melting and heat treatment, phase diagram research. During smelting, the metal is placed in the water-cooled copper crucible. According to the process requirements, the furnace can be filled with high-purity inert protective gas, and the high-temperature plasma generated by the arc is used to melt the metal. Multi-station copper crucible can be used for a variety of small metal (about 3g ~ 5g per station) smelting in sequence, with the side control lever for tilting and rotating metal ingots after smelting. There is a larger cavity in the middle of the copper crucible for mixed smelting of the alloy (which can hold about 25g). The smelting furnace is also equipped with a vacuum suction casting mold. The user can replace and install it by simple tools. After replacement, the vacuum suction casting function can be realized. The cylindrical metal sample can be made to facilitate subsequent cutting, clamping and analysis operations.

Vacuum arc melting furnace features:

The device has the advantages of small size, stable performance, simple operation, comprehensive functions and convenient use, and is very suitable for laboratory research on small doses of metal samples.

Vacuum arc melting furnace specifications:

Item

Details

Supply voltage

AC380V (three phase) or AC220V, 50Hz

Power

Customizable, default 18kW (three-phase 380V) /   13kW (AC220V)

Chamber material

Stainless steel

Cooling method

Water-cooled chamber, water-cooled electrode,   water-cooled copper crucible

Chamber size

O.D φ200mm×H.180mm

Observation window diameter

40mm

Crucible

Water-cooled copper crucible with 7 cavities, 6 cavities φ25mm×8mm,the large working cavity φ40mm×12mm can be used for mixed smelting alloy

Vacuum suction casting mold crucible, φ13mm×33mm

Water-cooled connector

1/4-inch quick plug interface

Vacuum interface

KF16 flange

Vacuum pump

Rotary vane pump; molecular pump set is optional

Intake interface

1/4-inch quick plug interface

Intake valve

Stainless steel needle valve

Vacuum gauge

2.5-stage pointer vacuum gauge

Overall dimension

600mm×500mm×800mm(without   vacuum system and external power supply)
