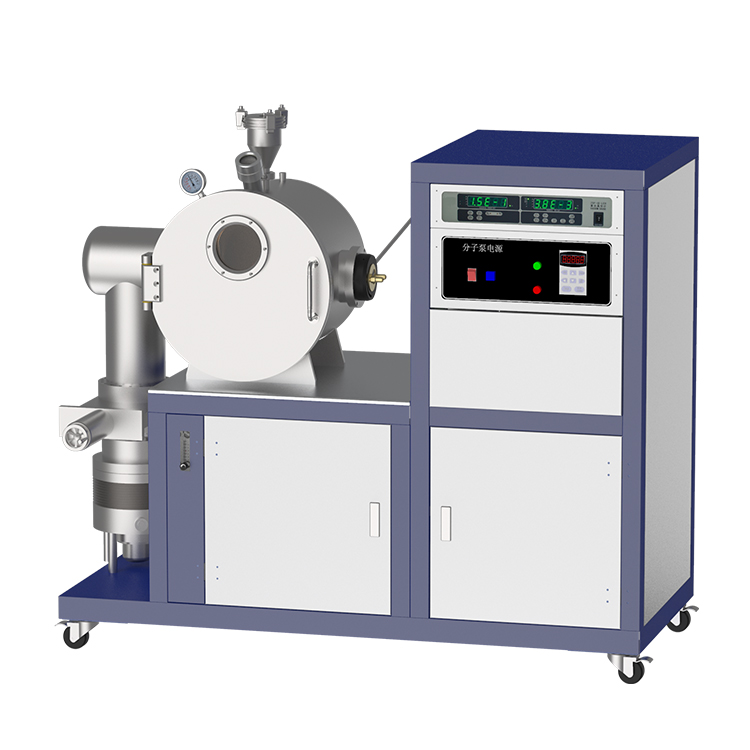

Vacuum induction melting furnace CY-IM400-L

Vacuum induction melting furnace CY-IM400-L

    This product is a vacuum induction furnace with induction heating, and the melting temperature of the equipment can reach 2000℃. The induction furnace adopts a stainless steel water-cooled chamber and is equipped with a quartz observation window to observe the sample melting condition.

This product is a vacuum induction furnace with induction heating, and the melting temperature of the equipment can reach 2000℃. The induction furnace adopts a stainless steel water-cooled chamber and is equipped with a quartz observation window to observe the sample melting condition. It is suitable for sample melting and heat treatment, phase diagram research. The equipment adopts high-quality high-frequency induction power supply and supports customized maximum 60KW high-frequency induction power supply. The equipment is equipped with a high-vacuum molecular pump set, which can effectively improve the vacuum degree of the substrate and thus improve the quality of the melting. The equipment is also equipped with a lifting platform and a flip handle to facilitate the operator to carry out the casting and sampling operations after melting.

Vacuum induction melting furnace feature:

The equipment is comprehensive in function, fast in melting, easy to use, energy-saving and environmentally friendly, and is very suitable for laboratory research on metal samples.

Vacuum induction melting furnace specificaitons:

CY-IM400-L Vacuum induction melting furnace

Induction power

Frequency

High frequency

Power

Customizable, maximum   60KW

Vacuum chamber

Chamber material

stainless   steel

Cooling system

Water-cooled electrode,   water-cooled chamber, water-cooled mold

Chamber size

φ400mm× 400mm

Watch Window

Main Watch Window φ120mm, upper   Watch Window φ45mm

Accessories

Infrared temperature   measurement window, Vacuum funnel

Lifting platform

0~40mm lifting range

Water cooled interface

Φ8mm quick plug interface



Vacuum system

Model

CY-GZK103-A

Pumping interface

CF160

Molecular pump

CY-600

Exhaust interface

KF16

Backing pump

Rotary vane pump

Vacuum measurement

Compound vacuum gauge

Ultimate vacuum

1.0E-5Pa

Power supply

AC 220V 50/60Hz

Pumping rate

Molecular pump: 600L/S rotary vane   pump: 1.1L/S Comprehensive pumping performance: The vacuum can reach 1.0E-3Pa in 20 minutes.

Crucible

Graphite crucible

Max Φ60mm × 80mm

Alumina crucible

Max Φ120mm× 90mm



Others

Supply voltage

AC220V 50Hz or three-phase 380V

Overall size

1550mm×700mm×1400mm

Total power

Refer to induction power supply

Total Weight

900kg
