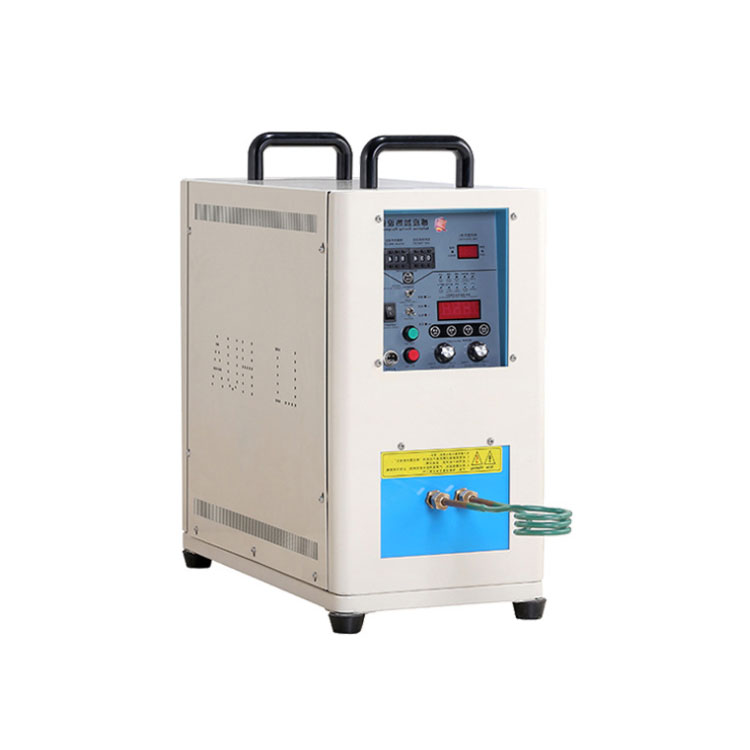

Desktop High Frequency Induction Heater 100-500kHz 6KW

Desktop High Frequency Induction Heater 100-500kHz 6KW

    Compact 6KW Ultra High Frequency Induction Heater is designed for quickly melting small quantity (<100g) of metallic material.

Compact 6KW Ultra High Frequency Induction Heater is designed for quickly melting small quantity (<100g) of metallic material.

Technical parameters of high frequency induction heater:

Working Voltage

180 - 245 V AC, 50-60 Hz, Single Phase

Max. Output Power

6KW

Input Current

5 - 30 Amp (50A breaker required) Adjustable with digital display

Output Frequency

100 - 500 kHz

Duty Cycle

100%

Max. Sample Weight

100g

Timer Control

  • Automatic timer control or  Manual control selectable

    • Manual Control: by Foot Pedal

    • Automatic Heating Time: 1-99 Seconds

    • Automatic Dwell Time: 1-99 Seconds

    • Automatic  Cooling Time: 1-99 Seconds

Air Cooling

Rear Fan

Water Cooling

  • Flow rate: > 3 L/Min

  • Pressure: ≥ 0.2 MPa (29 Psi)

  • Tap water is acceptable, but using Recirculating Water Chiller is highly recommended. Protection: Over pressure and over temperature switch

Water protection

Over pressure and over temperature switch

Induction Coil

  • Made by 5mm Dia. Copper tube (One Coil 20mmDia. x 45mmH is included)

  • Customized copper coil is available at an extra cost ($300/ea) upon request

Product Dimensions

520mm(L) x 240mm(W) x 500mm(H)

Warranty

One Year limited warranty with lifetime support

Net Weight

24 kg (53 lbs)
