The magnetic suspension vacuum melting furnace CY-MSMF-40 is suitable for the study of ferromagnetic materials. It uses a 40KW high-frequency electric induction heater and a specially developed water-cooled copper crucible to heat and melt and at the same time cause the vacuum quartz tube to generate magnetic force to suspend the ferromagnetic alloy sample .
The magnetic suspension vacuum melting furnace CY-MSMF-40 is suitable for the study of ferromagnetic materials. It uses a 40KW high-frequency electric induction heater and a specially developed water-cooled copper crucible to heat and melt and at the same time cause the vacuum quartz tube to generate magnetic force to suspend the ferromagnetic alloy sample . Therefore, the machine can produce high-purity iron or magnetic alloys in a non-polluting environment.

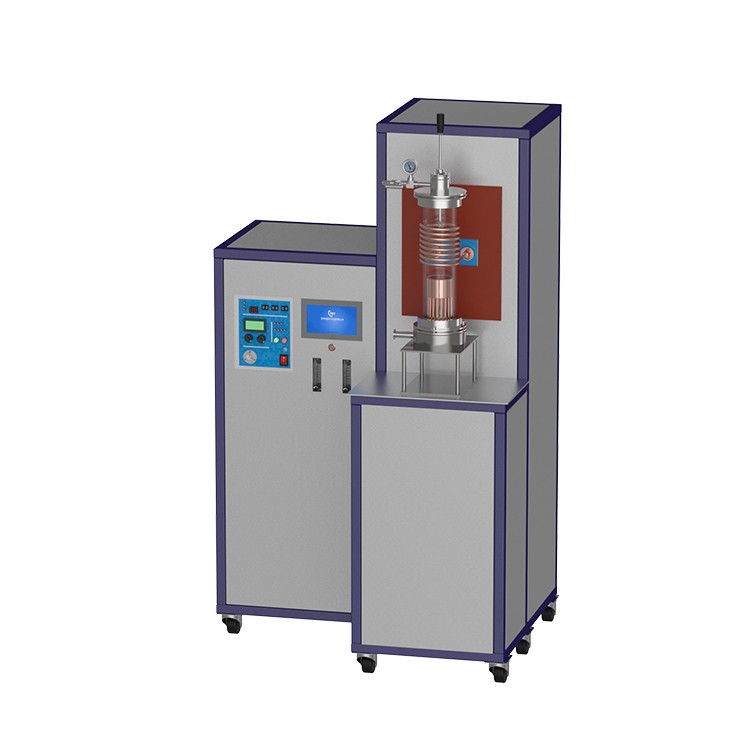

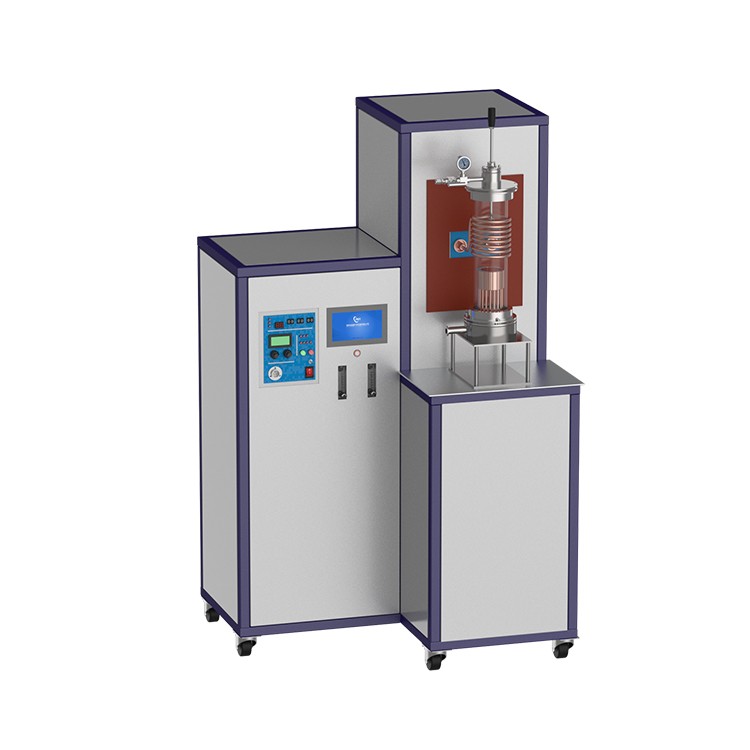

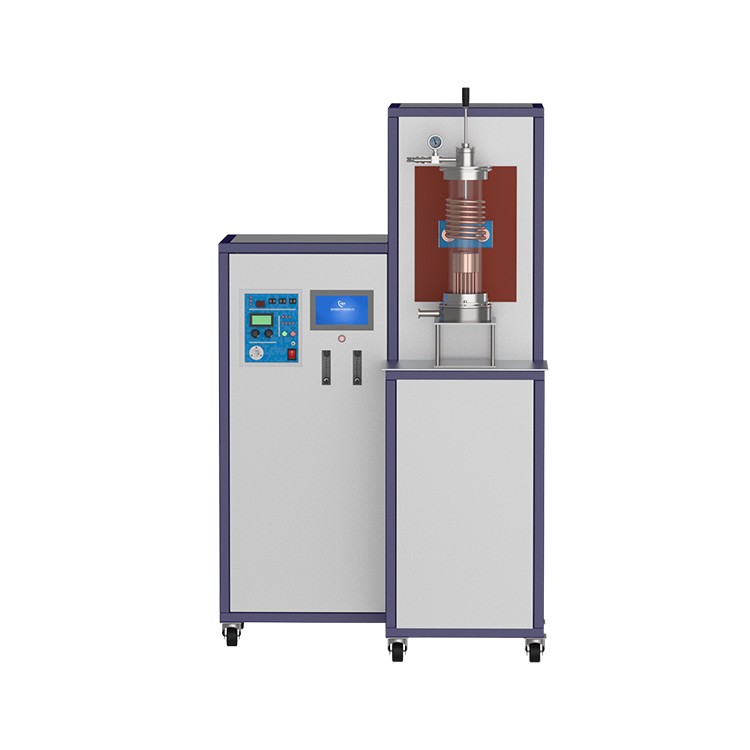

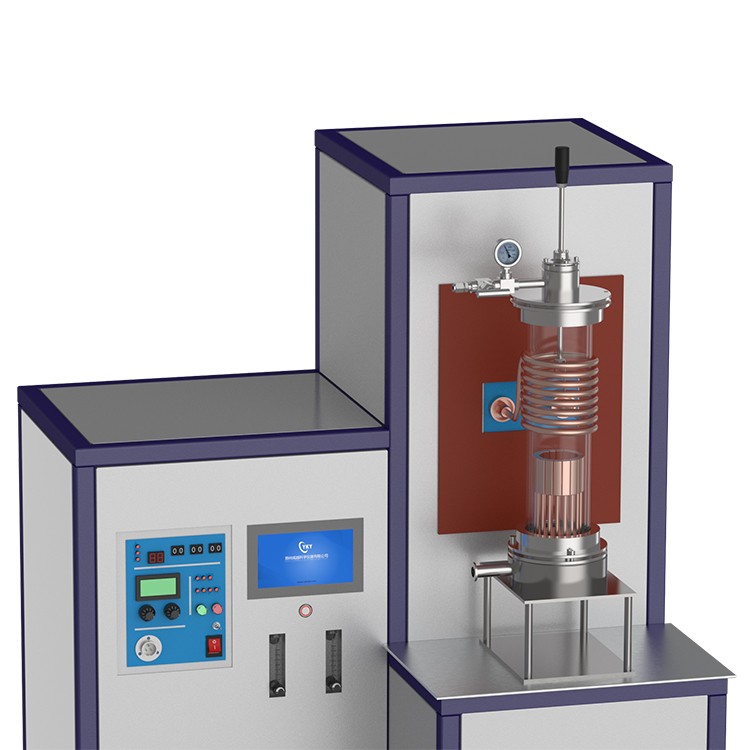

Magnetic suspension vacuum melting furnace CY-MSMF-40
1. Maximum vacuum pressure 10-2torr (mechanical pump), 10-4torr (molecular pump).
2. The bottom flange can automatically drive up and down, making the sample loading easier.
1. Power supply: 380V or 460V three-phase AC 5-20A
2. Output power: maximum 40KW
3. Output frequency: 50-200 KHz
4. Water flow rate:> 16 L / min
1. Size: outer diameter 38mm, inner diameter 23mm, 12 equal parts
2. Capacity: 3mL
3. Maximum load: 20g ferrous metal or alloy
4. Water flow rate: 40L / min
5. Cooling: built-in water cooling device
1. Power supply: 208-240V AC
2. Maximum input power: 2100W
3. Maximum water flow rate: 58L / min
4. Temperature control range: 5-35℃
Size: 1200mm × 800mm × 1654mm; weight: 260kg
Quartz tube (Φ50mm × 300mm)
