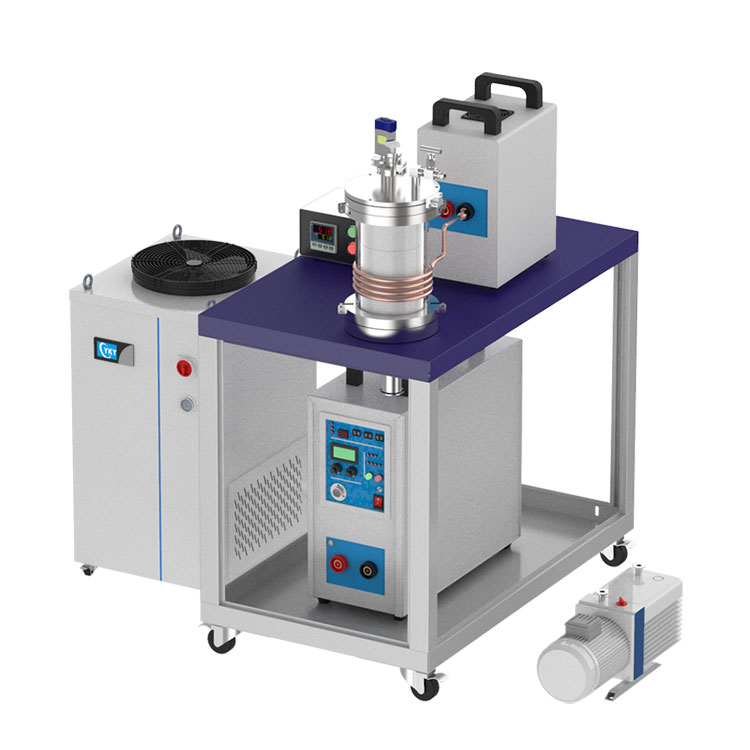

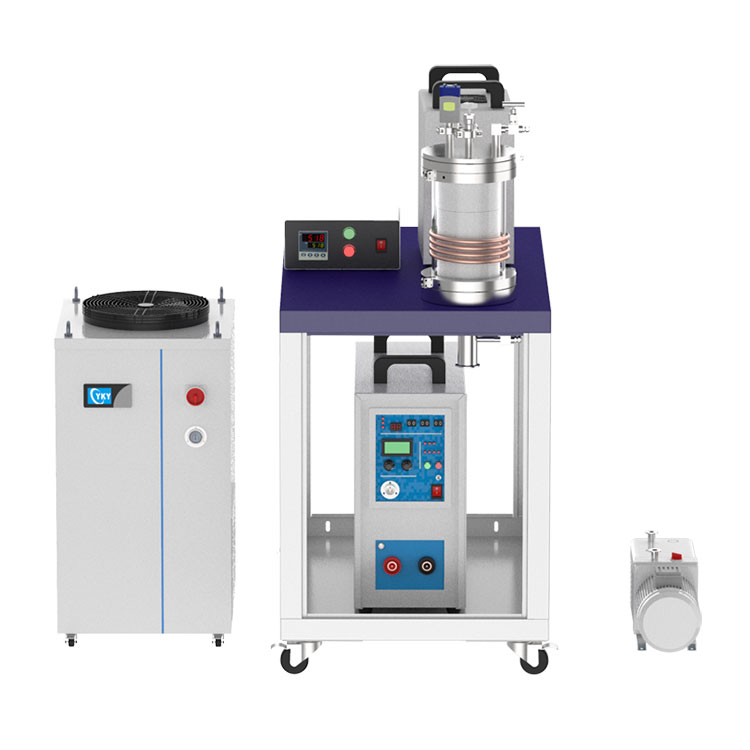

Temperature controlled vacuum induction melting furnace 35KW

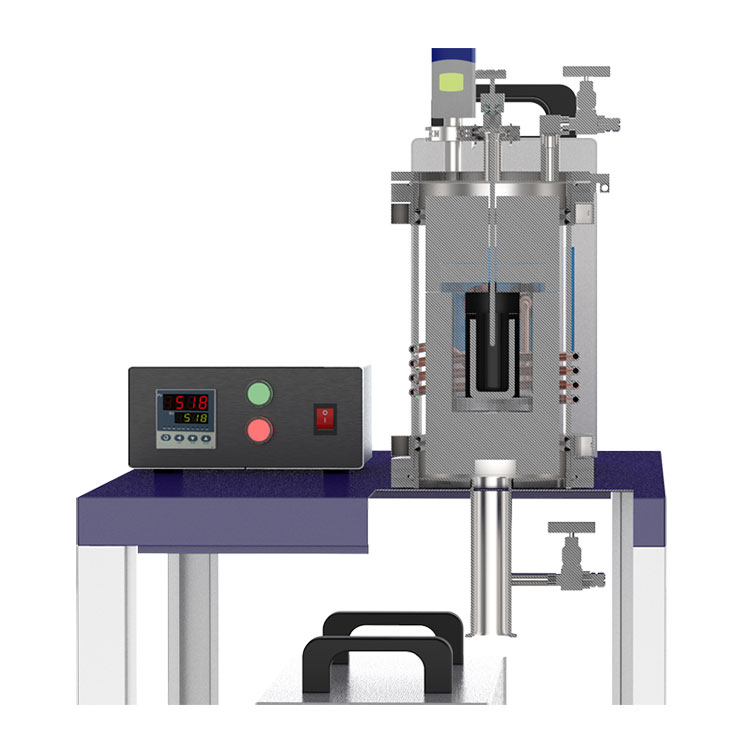

    This vacuum induction melting furnace adopts vertical quartz cavity, and both ends are equipped with water-cooled flanges, which can ensure that the entire cavity will not be damaged by thermal shock during operation.

This vacuum induction melting furnace adopts vertical quartz cavity, and both ends are equipped with water-cooled flanges, which can ensure that the entire cavity will not be damaged by thermal shock during operation. The furnace body flange is equipped with a vacuum interface and a protective gas interface, which can be used for vacuum smelting and atmosphere protection smelting, and can effectively ensure that the sample is not oxidized. The induction furnace adopts high-frequency power supply for heating, with fast heating speed and high energy efficiency ratio. It is mainly used for melting and processing of metal materials (such as stainless steel, nickel base alloy, copper, alloy steel, nickel cobalt alloy, rare earth neodymium iron oxide, etc.) under the condition of vacuum or protective atmosphere.

Technical parameters of vacuum induction furnace:

Item

Detail

Supply voltage

AC380/110V50Hz

Maximum power

35kw

Maximum temperature

2000℃

Crucible capacity

2kg (steel liquid)

Vacuum acquisition

Bipolar rotary vane vacuum pump

Limit vacuum degree

≤ 10Pa

Protective atmosphere

nitrogen, argon ≤ 0.05Mpa

Dimension

660×1060×1060mm(L×W×H)

Weight

200kg
