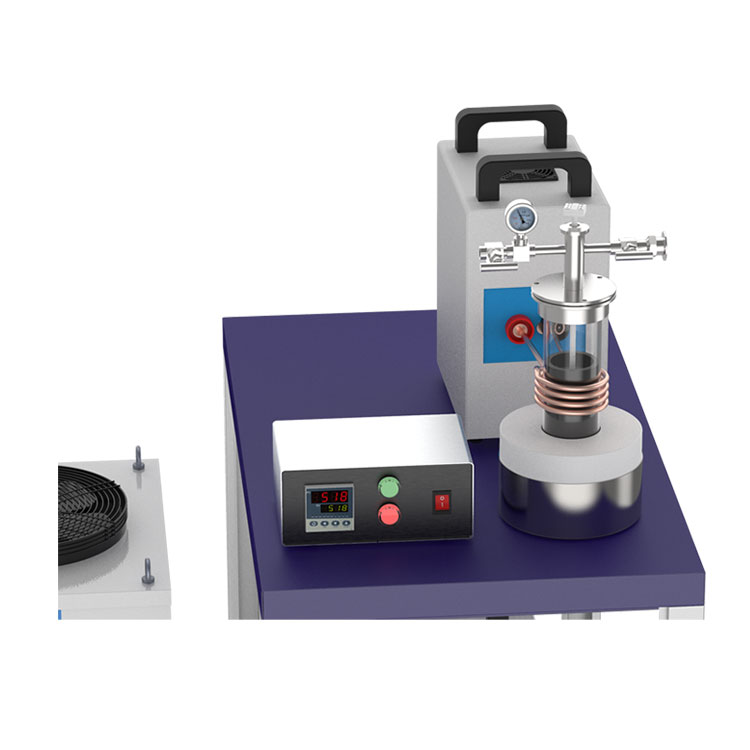

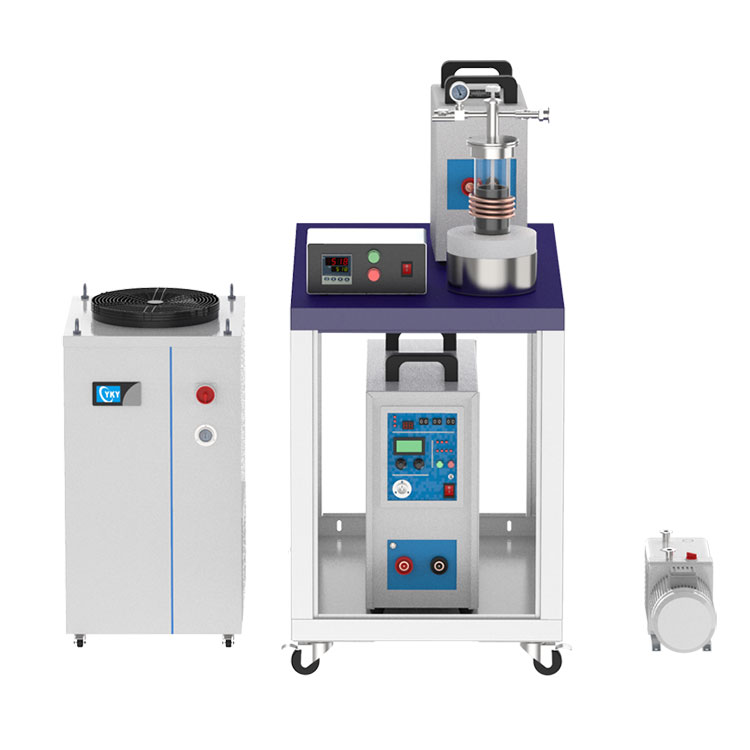

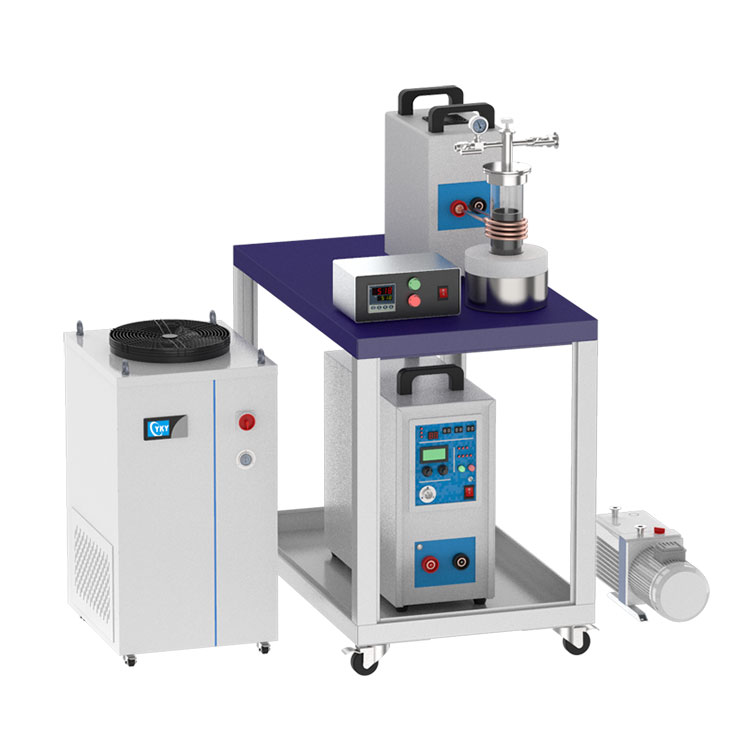

Vacuum induction melting furnace 15KW

    It is suitable for the rapid melting of a small amount of metal samples in the laboratories of colleges and universities, and it is an ideal tool for the development of new metal materials.

The vacuum induction melting furnace is suitable for the rapid melting of a small amount of metal samples in the laboratories of colleges and universities, and it is an ideal tool for the development of new metal materials.

Technical parameters of vacuum induction furnace:

Product model

Vacuum induction melting furnace CY-15VIMF

Main

features

1. Complete fireproof device, including the holder at the bottom of the crucible, the holder and the lid of the crucible, and made of alumina.

2, water pressure and temperature automatic protection, output power over the power supply automatic protection.

Technical parameters

SP-15A electric induction heater

1. Power supply: 220V 50-60Hz 70A

2. Output power: 2-15KW

3. Output frequency: 30-110 KHz

4. Duty cycle: 80%

5. Automatic heating time: 1-99s

6. Automatic cooling time: 1-99s

7. Induction coil: outer diameter Φ70mm, inner diameter Φ65mm, height 80mm

8. Quartz tube: outer diameter Φ60mm, inner diameter 57 mm, length 250 mm

9. Vacuum flange: KF25 joint

10. Quartz crucible: outer diameter Φ58mm, inner diameter Φ36mm, height 78mm, capacity 79mL

11. Size: 470mm × 305mm × 435mm

Cold water machine

1. Temperature: 5-35

2. Water flow rate: 4L/min

3. Water tank: 4L

4. Size: 460mm×220mm×711mm

Vacuum pump

1. Power: 550W

2. Ratio: 226 L / min

Mobile furnace cart

1. Size: 800mm×600mm×597mm

Product

specification

Weight: 105kg

Standard

accessories

1

CY-15A electric induction heater

1 set

2

Quartz tube

1

3

Quartz crucible

1

4

Vacuum flange

1 set

5

Water Chiller

1 set

6

Vacuum pump

1 set

7

Mobile cart

1 set
