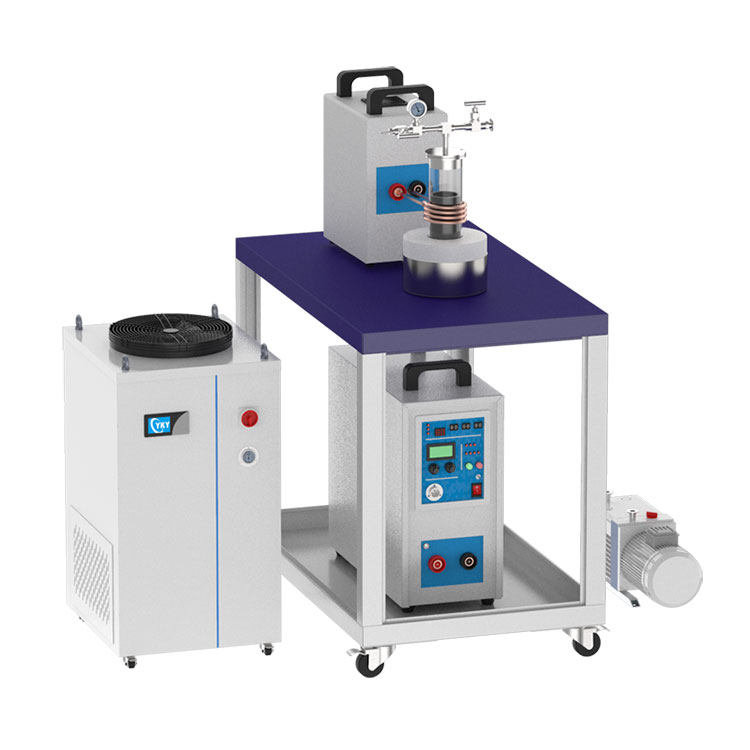

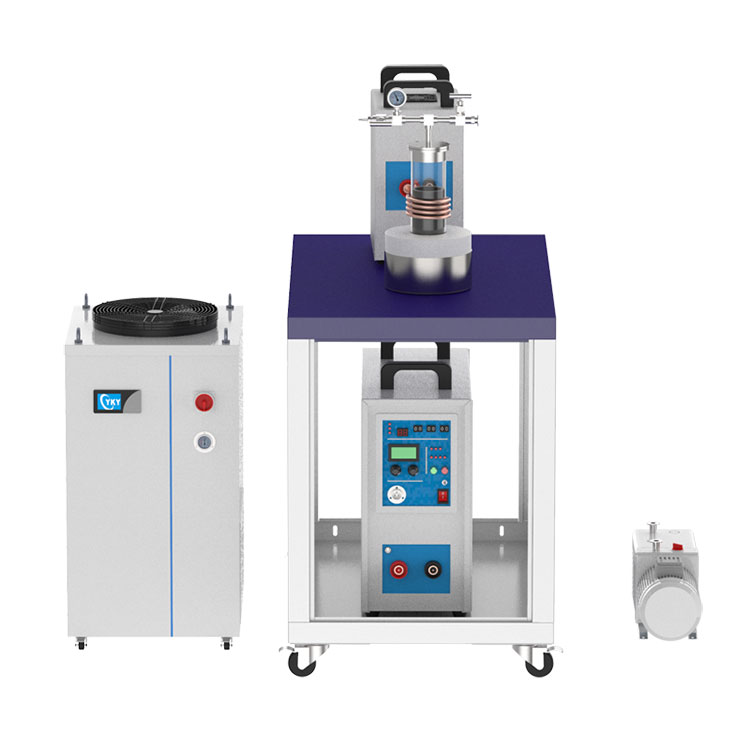

Vacuum induction melting furnace 25KW

    It is suitable for the rapid melting of a small amount of metal samples in the laboratories of colleges and universities, and it is an ideal tool for the development of new metal materials.

The vacuum induction melting furnace is suitable for the rapid melting of a small amount of metal samples in the laboratories of colleges and universities, and it is an ideal tool for the development of new metal materials.

Technical parameters of vacuum induction melting furnace:

Product model

Vacuum induction melting furnace CY-25VIM

Main features

1.   Equipped with a complete refractory device, including the support at the bottom of the crucible, the support for the crucible and the cover, and made of alumina.

2.   Automatic protection of water pressure and temperature, output power exceeds automatic protection of power supply.

Technical parameters

CY-25A electric induction heater

1. Power supply: 220 V 50-60 Hz 42 A

2. Output power: 2-25KW

3. Output frequency: 30-80 KHz

4. Duty cycle: 80%

5. Automatic heating time: 1-99s

6. Automatic cooling time: 1-99s

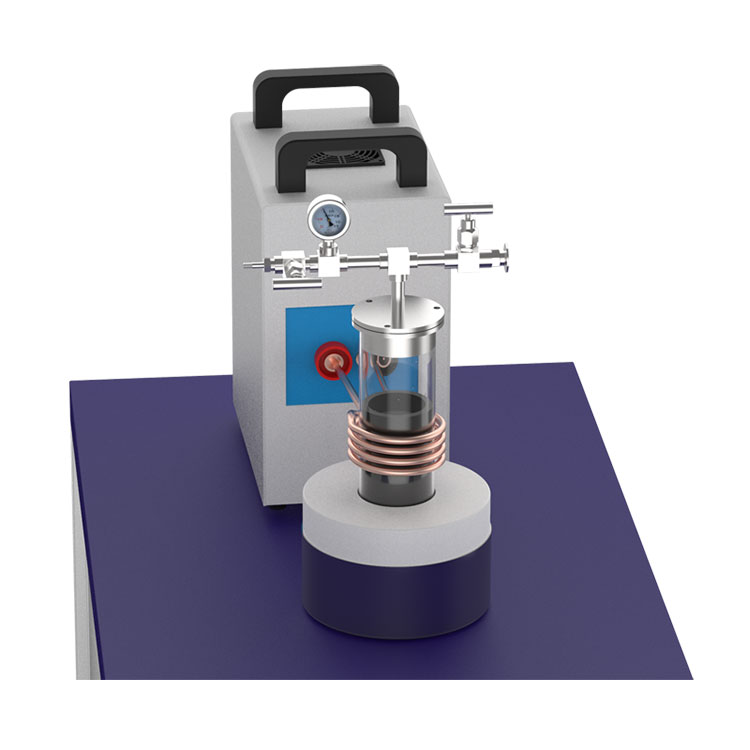

7. Induction coil: outer diameter Φ95mm, inner diameter Φ85mm, height 50mm

8. Quartz tube: outer diameter Φ80mm, inner diameter 75 mm, length 300 mm

9. Vacuum flange: KF25 joint

10. Quartz crucible: outer diameter Φ58mm, inner diameter Φ36mm, height 78mm, capacity 79mL

11. Size: 470mm × 305mm × 435mm

Cold water machine

1. Temperature: 5-35

2. Water flow rate: 4L/min

3. Water tank: 4L

4. Size: 460mm×220mm×711mm

Vacuum pump

1. Power: 550W

2. Ratio: 226 L / min

Mobile furnace frame

1. Size: 800mm×600mm×597mm

Product specification

Weight: 105 kg

Standard accessories

1

CY-25A electric induction heater

1 set

2

Quartz tube

1

3

Quartz crucible

1

4

Vacuum flange

1 set

5

Cold water machine

1 set

6

Vacuum pump

1 set

7

Mobile furnace frame

1 set
