Vacuum induction melting furnace up to 2000℃

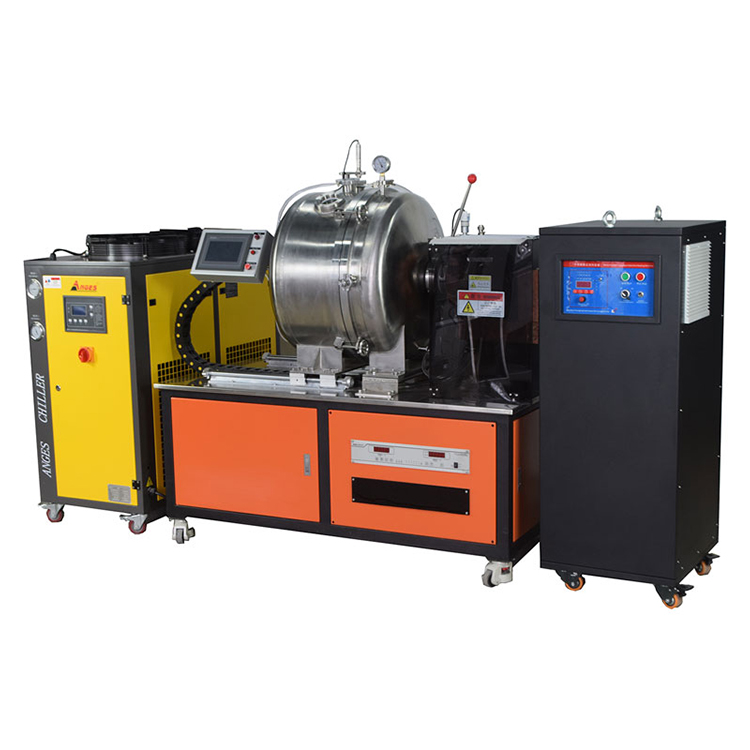

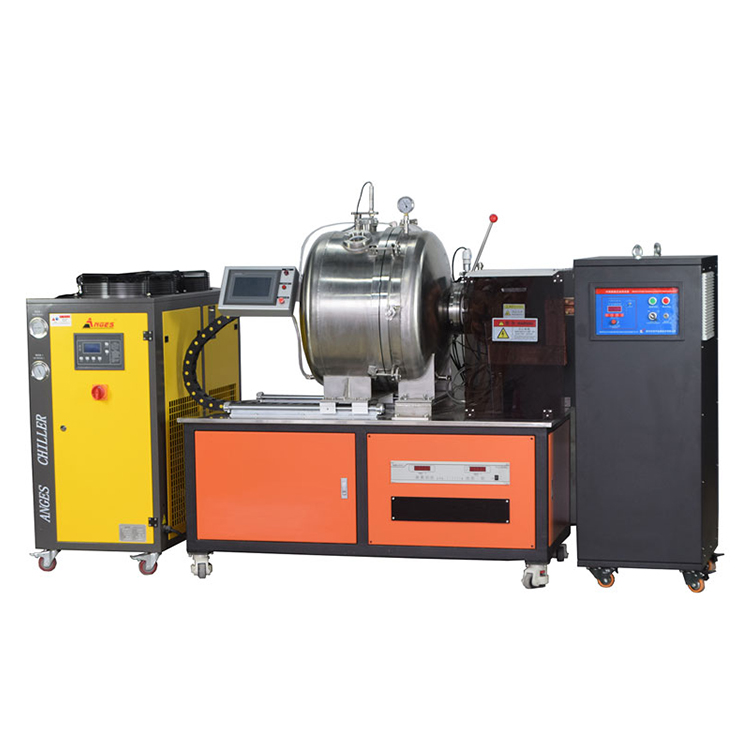

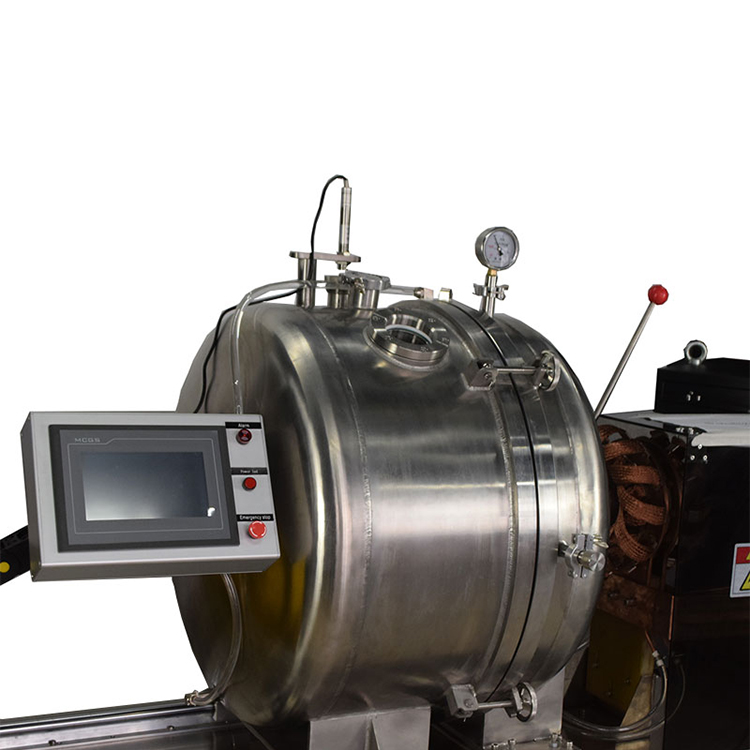

    This product is a vacuum induction furnace with induction heating, and the melting temperature of the equipment can reach 2000℃. The induction furnace adopts a stainless steel water-cooled chamber and is equipped with a quartz observation window to observe the sample melting condition. It is suitable for sample melting and heat treatment, phase diagram research.

This product is a vacuum induction furnace with induction heating, and the melting temperature of the equipment can reach 2000℃. The induction furnace adopts a stainless steel water-cooled chamber and is equipped with a quartz observation window to observe the sample melting condition. It is suitable for sample melting and heat treatment, phase diagram research. The equipment adopts high-quality high-frequency induction power supply and supports customized maximum 60KW high-frequency induction power supply. The equipment is equipped with a high-vacuum molecular pump set, which can effectively improve the vacuum degree of the substrate and thus improve the quality of the melting. The equipment is also equipped with a lifting platform and a flip handle to facilitate the operator to carry out the casting and sampling operations after melting.

The equipment is comprehensive in function, fast in melting, easy to use, energy-saving and environmentally friendly, and is very suitable for laboratory research on metal samples.

It can strictly control the alloy composition, and has the ability of electromagnetic stirring and high vacuum degassing. Smelting and casting of nickel-based, iron-based, cobalt-based and other advanced precision alloys or high-purity metals can be performed under high vacuum conditions or under a protective atmosphere. If a graphite crucible is used, low-resistivity metals and their alloys can be melted by indirect heating, such as gold, silver, copper, aluminum, bronze, etc.

Technical parameters of vacuum induction melting furnace:

Power Requirements

30KW,380V,3 phase, 50Hz

Max operating temperature

2000

Crucible capacity

3Kg

Vacuum chamber

500*500mm, SS304 material

Heating coil size

Diameter 220mm with height 180mm

Molecular pump

5.0*10E-6 mbar

Protect atmosphere

N2, Ar

Window view

2 glass window view

Temperature measurement

Infrared temperature measurement

Temperature control accuracy

±3

Temperature control

PID control

Control ways

PLC touch screen

Cooling method

Integrated cold trap

Crucible

Can be able to tilt to 95 degree for tilt cast

Out dimension

1350*1100*1500mm

Chamber size

500mm diameter *500mm height

Vacuum pump

Molecular pump included
