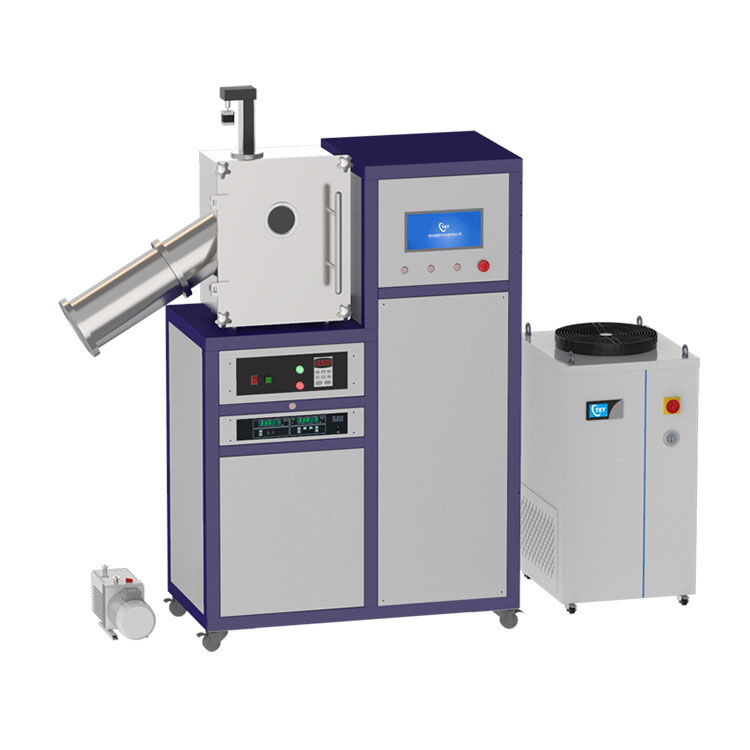

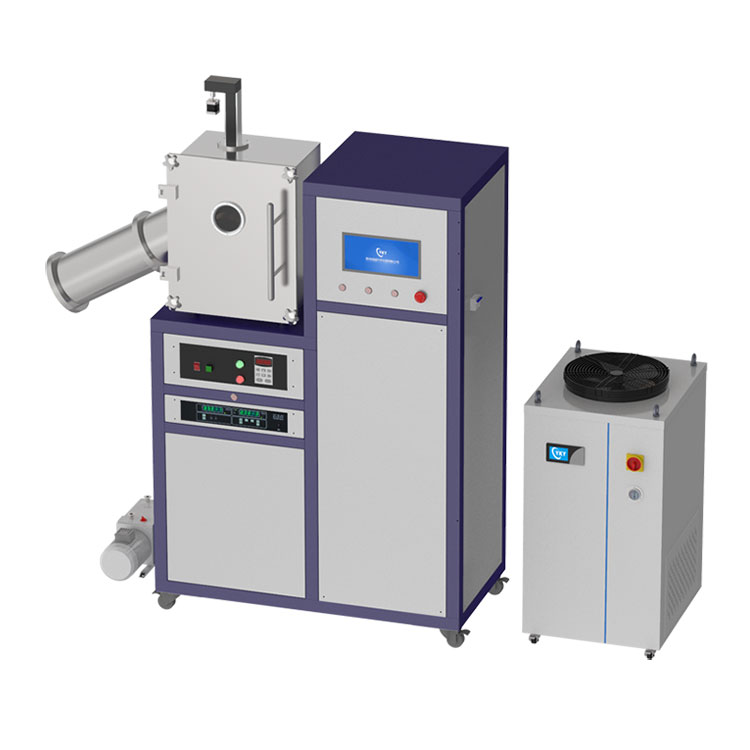

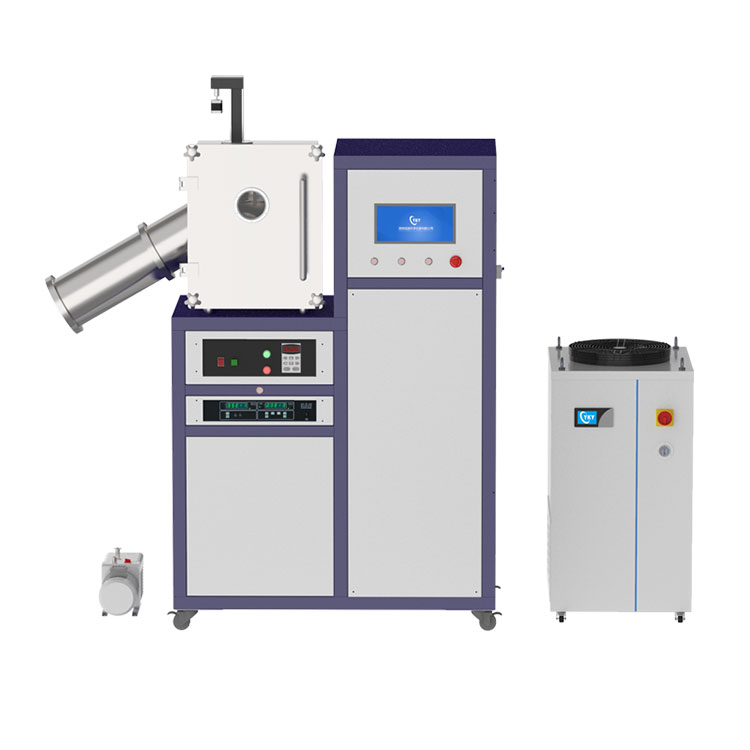

Vacuum Melt Spinning Furnace with Precision Temperature

    It is a lab-scale vacuum melt spinning system for preparing amorphous metallic ribbons. In this technique, metal ingots (<50g) are melted via induction heating method and then propelled by over-pressurizing the crucible.

CYKY-BTF-500 is a lab-scale vacuum melt spinning system for preparing amorphous metallic ribbons. In this technique, metal ingots (<50g) are melted via induction heating method and then propelled by over-pressurizing the crucible.

Technical parameters of vacuum melt spinning system:

Features

The complete system consists of the stainless steel vacuum chamber, vacuum system, induction heating system, rack system and discharging tubular collector.

Copper roller linear speed: 5 ~ 60m / S

Melting metallic samples: 5g ~ 50g/Per batch

Vacuum casting device (not included in standard configuration)

Power supply

Voltage: AC380V, three-phase

Maximum power 15kw (60A air switch required)

Vacuum chamber & vacuum pump

Vacuum chamber size: Φ 500mm x 400mm L

Hinged cavity door with quartz observation window

Molecular pump system is installed in the equipment

Vacuum: 5 x10E-5 Torr (within 20 minutes)

Limiting vacuum 10e-7 Torr (to be baked)

Induction heater & temp controller

Heating power: 15kw; frequency range: 30 ~ 80kHz

Melting sample quantity: 10 - 50g (depending on the material)

Accurate temperature control system, B-type thermocouple, 30 temperature rise and fall procedures can be set

Temperature control accuracy: + / - 2℃

Crucibles

Quartz crucible or BN crucible can be used according to customers' requirements

Spinning wheel

Standard copper roller cooling without water

Linear speed of copper roller: 5 ~ 60m / S

Optional:

Optional water-cooled copper roller with a maximum sample handling capacity of 500g

Optional vacuum casting module

Optional accessories

Casting accessories (casting, spray casting) can be purchased according to requirements

The water cooling system can be customized for the casting copper mold according to the requirements

Dimension

2000×1100×1800mm(L×W×H)

Weight

~800Kg

Certificate

CE certification
