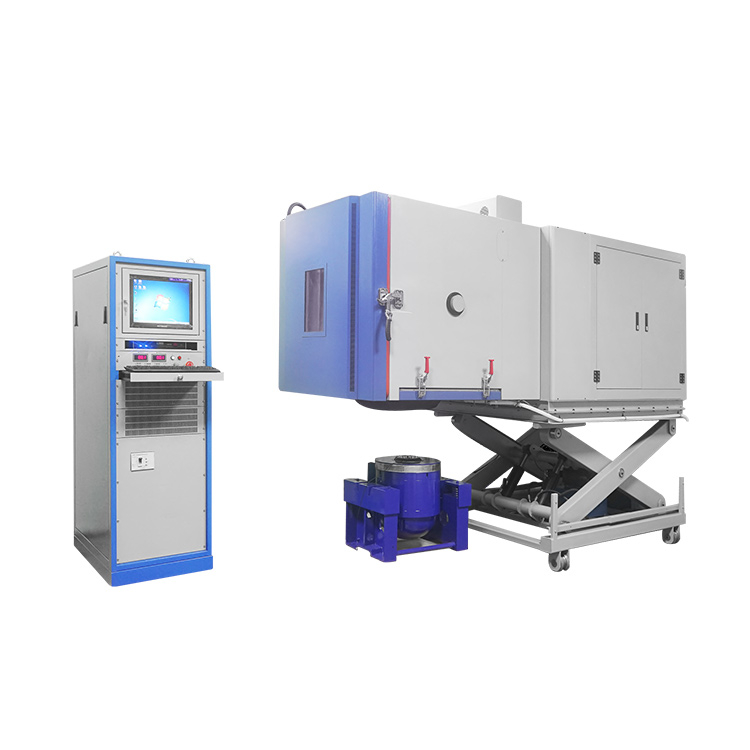

Temperature and humidity vibration three comprehensive environment test box
This product is applicable to aerospace products, information electronic instruments and meters, materials, electric, electronic products, electronic components in temperature, humidity, vibration, comprehensive environmental reliability test, reliability growth test, reliability identification test (RQC), product reliability acceptance (PRAT), routine test, stress screening test (ESS), etc
This product is applicable to aerospace products, information electronic instruments and meters, materials, electric, electronic products, electronic components in temperature, humidity, vibration, comprehensive environmental reliability test, reliability growth test, reliability identification test (RQC), product reliability acceptance (PRAT), routine test, stress screening test (ESS), etc.
Product features of the integrated environment test box:
Use the German blog compressor.
Adopt ultra-high efficiency multi-chip turbulent plate heat exchanger.
Automatic adjustment of cooling capacity, using heating and cooling alternate control mode, can effectively save energy.
Leakage, anti-overtemperature, blast motor overload protection, compressor high pressure, overheating protection, etc.
Technical parameters of the comprehensive environmental test box;
Internal dimensions (D * W * H) | 800*700*700mm |
Measured sample size | 0~50KG |
Temperature range | -40℃~+150℃ |
Temperature uniformity | ≤0.5℃ |
Temperature departure | ≤2.0℃ |
Humidity range | 20%~98%RH |
Humidity uniformity | ≤3.0%RH |
Relative humidity fluctuation | ≤2.0%RH |
Humidity deviation | ≤±3%RH |
Heating-up time | -40℃~+150℃≤30min |
Temperature fall time | 20℃～-40℃≤30min |
Refrigeration method | Corefrigeration compressor (water cooled) |
Observation window size | 300mm * 400mm (width * height) |
Position adjustment | Huang Jingzang has a mobile guide rail, which supports up and down, left and right movement |
Navar | Provide a communication interface, and provide an Ethernet connection |
Defencive function | The environment cabin has self-diagnosis and self-protection functions, and can automatically alarm and stop in case of failure |
Source | AC380V,50±0.5Hz Three-phase, five-line system |
Power | About 25KW |
Weight | Approximately 700 KG (excluding vibration table) |
Cold and hot exchange device | Using ultra-high efficiency multi-chip turbulent plate type converter |
Data storage | Data storage and playback function are available |
Energy regulation | The control system will automatically adjust the size of the cooling capacity, using heating and cooling alternate control mode, can Efficient in the energy savings |
High efficiency components | The condenser and evaporator adopt the aluminum fin device |
