Home > Products > Laboratory Mill&Mixer
Bench-Top Planetary Ball Mill with four Stainless Stell Jars & Lock Clamps CY-PBM-V-0.4L Bench-Top Planetary Ball Mill with four Stainless Stell Jars & Lock Clamps CY-PBM-V-0.4L Bench-Top Planetary Ball Mill with four Stainless Stell Jars & Lock Clamps CY-PBM-V-0.4L

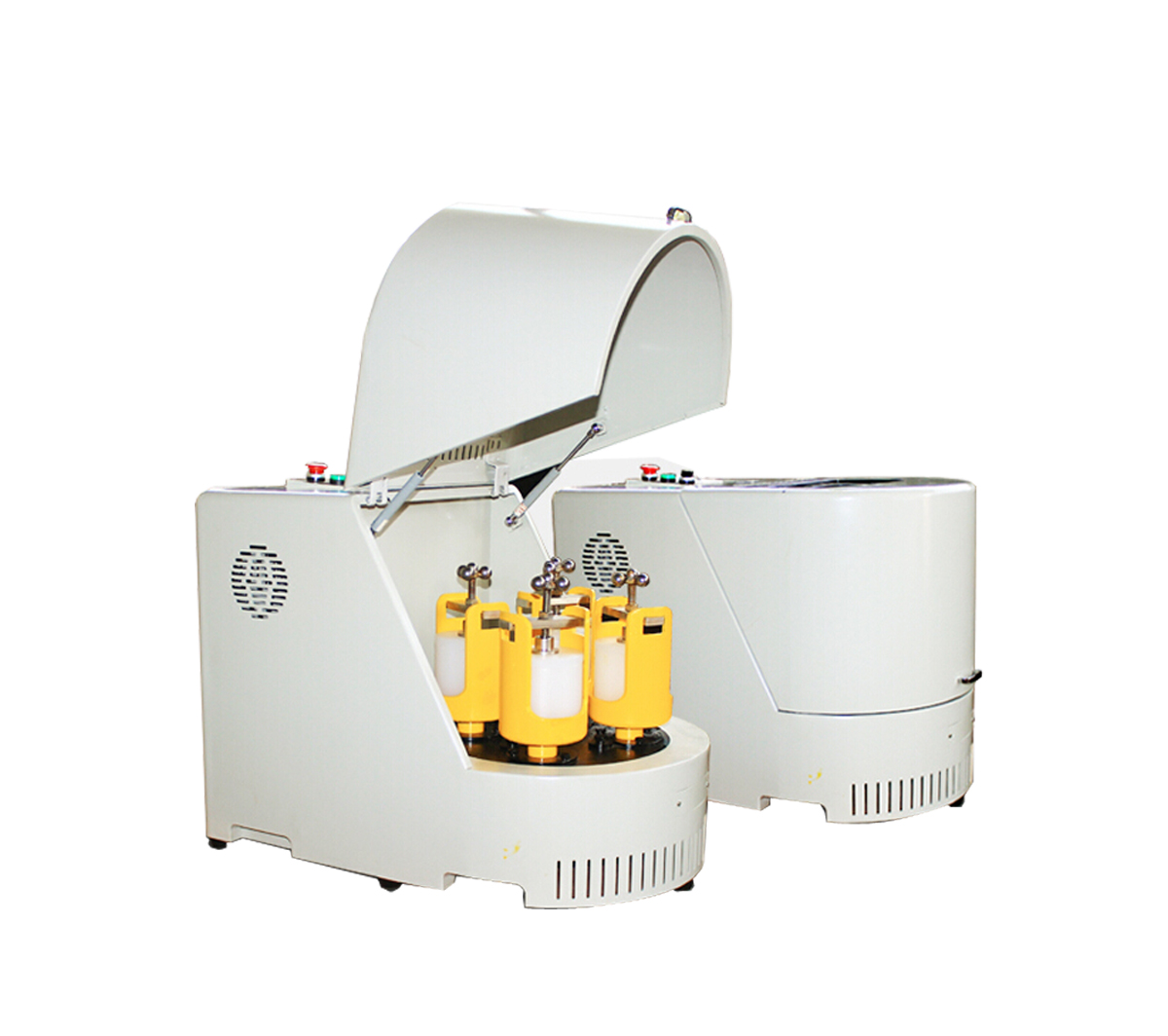

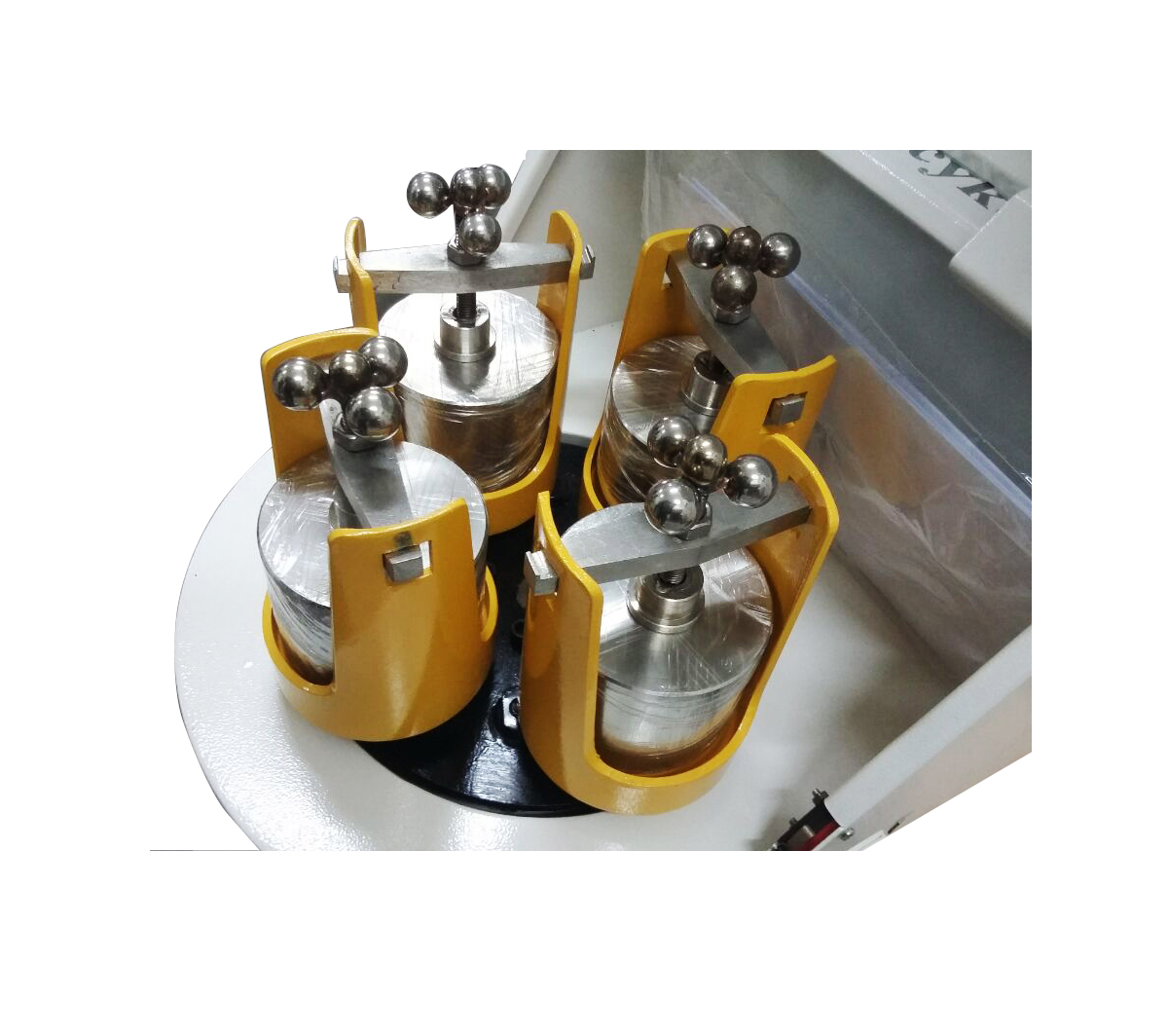

Bench-Top Planetary Ball Mill with four Stainless Stell Jars & Lock Clamps CY-PBM-V-0.4L

Features

1.Elegant design, easy to operate

2.Ideal for wet or dry grinding application

3.Automatic and programmable control with LED display

4.Multiple grinding modes to choose

5.High uniformity and excellent repeatability

6.Fast rotational speed, high efficiency and fine granularity

7.Programmable interval and pause times

8.Four samples with different sizes and materials in one experiment

9.Cooling of the grinding chamber with a built-in fan for long grinding times


Working principle

Impact and friction force

Item no.

CY-PBM-V-0.4L

Compatible Grinding Jars

100ml * 4

Max Feeding capacity

2/3 capacity of the grinding jar

Operation mode

2 or 4 grinding jars working simultaneously

Feeding granularity

Soil materials < 10mm, others materials < 3mm

Discharging granularity

≤ to 0.1µm

Sample Type

hard, medium-hard, soft, fibrous, brittle, moist

Rotational speed of grinding Jar

1350rpm

Rotational speed ratio

2:1

Drive mode

gear drive and belt drive

Speed control

Step-less speed regulation

Electrical details

AC220VAC, 50Hz,0.75Kw

Max continuous grinding time

99hours

Grinding jars material

Stainless steel, nylon,zirconia,alumina,manganese steel,
     Polyethylene, or as customized

Weight

75kg
