Electrospinning special high precision syringe pump Electrospinning special high precision syringe pump

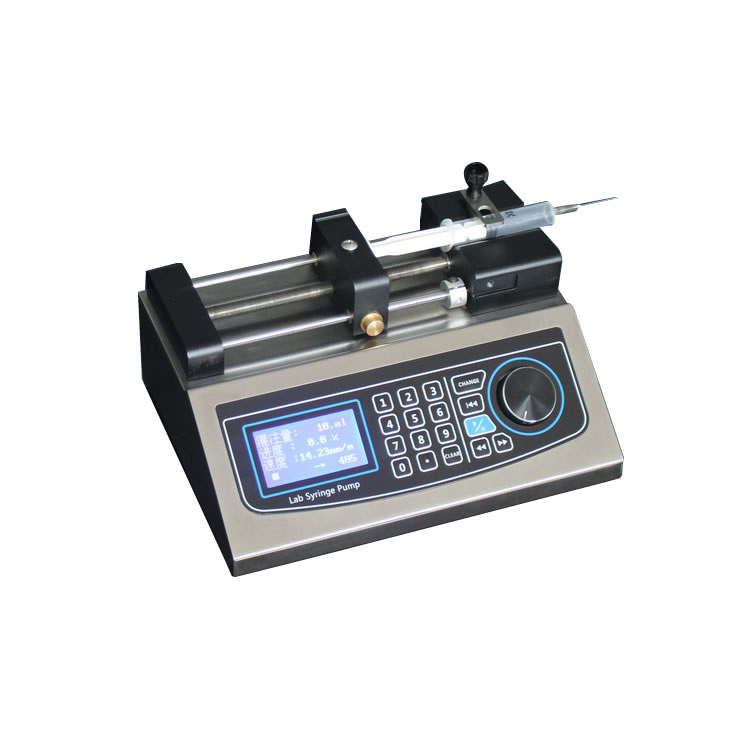

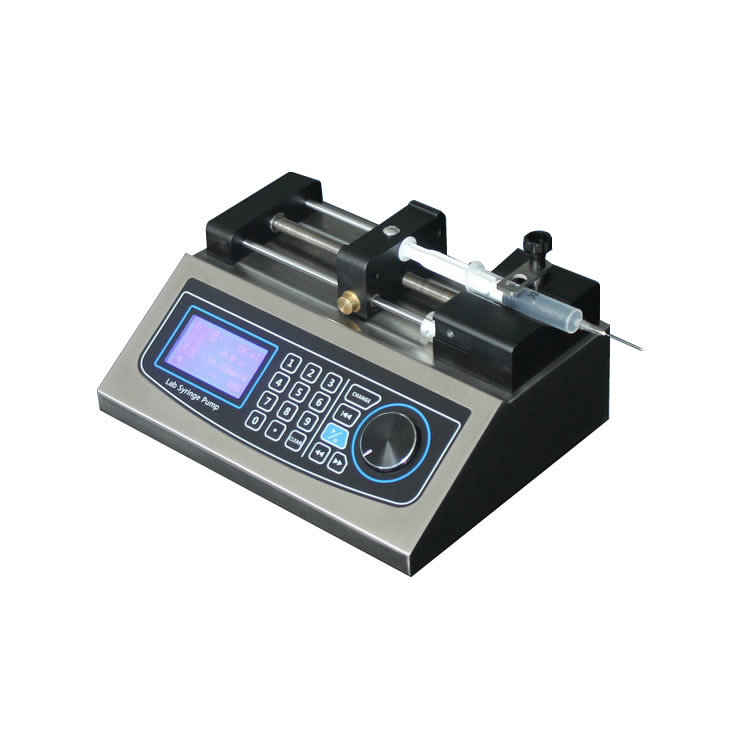

Electrospinning special high precision syringe pump

    Electrospinning special high precision syringe pump is a single-channel perfusion syringe pump for the electrospinning industry, with one-piece structure. Excellent electromagnetic compatibility,and excellent anti-interference performance.

Electrospinning special high precision syringe pump can install different sizes of syringes (sample injectors), and the syringe pump is suitable for liquid transmission in high precision and small flow.The device is easy to use and simple to operate, and the parameter setting, modification and viewing of the fluid control can be completed on the main interface of the boot. When entering parameters, you can select the model and inner diameter of the syringe directly from the list, or enter it manually.

Electrospinning special high precision syringe pump main features:

1. Flow range: 0.001ul / min - 43.349ml / min

2. Syringe inner diameter input function: You can select the syringe from the list or directly input the inner diameter of the syringe.

3. The micro-injection pump has a friendly man-machine interface: a large-screen liquid crystal display, and a digital knob for use with the membrane button, which is easy and quick to operate.

4. Working mode: Single push working mode.

5. Memory function:

(1) The EEPROM saves the setting parameters and does not need to be reset after power-on.

(2) When the power is running in the flow mode, the power is turned off. After the power is restored, the parameters can be continuously run or stopped according to the set parameters.

6. Protection function: The pump will stall and give an alarm when the drive structure of the pump is blocked.

7. The 485 communication bus can be connected to the host computer and controlled by the background software.

8. External control interface: with input/output control function.

9. Calibration function: More accurate flow can be obtained through the calibration procedure.

10. Syringe protection function: The syringe can be prevented from being damaged by adjusting the position of the limit block.

Electrospinning special high precision syringe pump specifications:

Working mode

Perfusion

Flow range

0.001ul / min 43.349ml/min

Number of syringes

1

Maximum stroke

140mm

Stroke resolution

0.156µm

Line speed range

5µm/min-65mm/min(flow   rate = line speed × syringe area)

Line speed adjustment resolution

5µm/min

Stroke control accuracy

Error≤±0.5%   (stroke ≥ 30% of the maximum stroke)

Rated linear thrust

>90N

Syringe selection

Built-in main   manufacturer's main model syringes for selection

Syringe definition

May directly   enter the inner diameter of the syringe

Flow correction

Get a more   accurate volume through the calibration procedure

Operating parameter settings

Dispensing   liquid volume, injection time, etc.

Display parameter selection

Fluid volume,   flow rate, or linear velocity

Power-down memory

After power-on, you can   choose whether to continue working according to the state before power off.

Status signal output

2-channel OC gate signal output for   indicating start/stop and direction status

Control signal input

2 channel start/stop control input end, 1   channel falling edge trigger signal control start and stop; 1 channel TTL   level signal control start and stop

Communication Interface

RS485

Dimensions

280×210×140(mm)

weight

4.5kg

Power supply

AC   200V-260V/35W

Working environment relative humidity

80%

Working environment temperature

0℃- 40℃
