Multi-channel laboratory micro syringe pump Multi-channel laboratory micro syringe pump

Multi-channel laboratory micro syringe pump

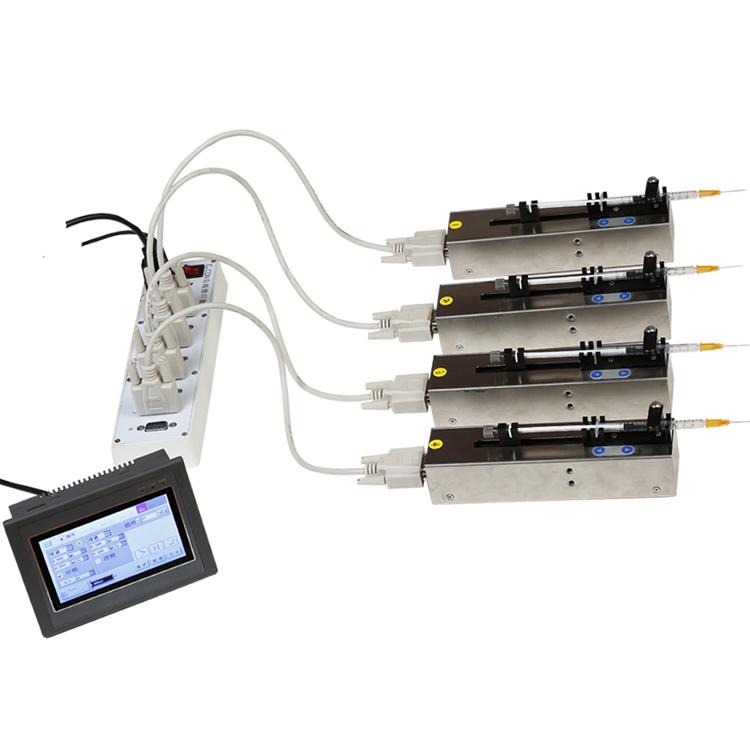

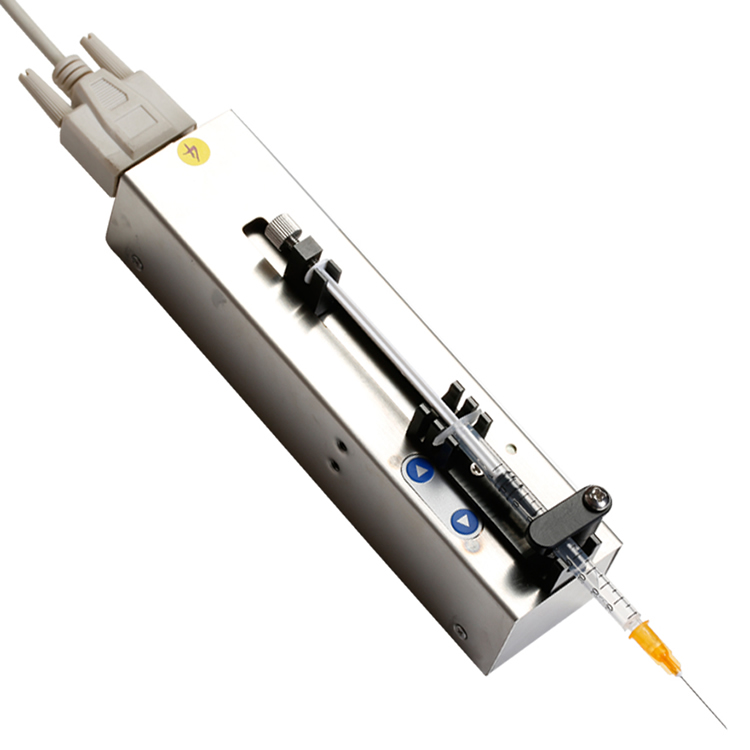

    Multi-channel laboratory micro syringe pump is a split-type, multi-channel series connection push-pull type syringe pump, which can independently control up to 8 channels of syringe pump, and install different sizes of syringes (injectors).

Multi-channel laboratory micro syringe pump is widely used in biology and chemistry reaction injection experiments, long-term animal drug injection experiments, electrospinning, microfluidic applications and other laboratory microinjection experiments, etc., through the mechanical device to promote the syringe, to achieve high-precision, smooth liquid transmission.

Multi-channel laboratory micro syringe pump main features:

1. Intuitive and easy to use: It adopts 4.3-inch colorful LCD screen with touch function, which is intuitive and easy to operate.

2. Computer control: can connect the device to the computer through the USB一RS485 communication line, and control it through the background software;(optional)

3. Multi-channel independence: select the split type, multi-channel independent control of the syringe pump, one controller (touch screen or computer) can complete any combination of multiple channels;

4. Clean and no worries: connect wireless mouse remote control work, so that the syringe pump has no hidden troubles to operate in a ultra-clean working table and other closed environment;

5. multi-factory mode: the program collects more than 95% of the common syringe models in the market, and can automatically remember the newly input syringe;

6. DIY function: provide the underlying dynamic library and programming interface, the user can carry out secondary development in the personal computer through C#, C++, VB and other programming languages;

7. Accurate calibration: the program comes with a flow calibration function to eliminate the volume error caused by long-term work;

8. Protection setting: protect the syringe from being damaged by setting the left and right limit positions;

9. Memory function: The system automatically saves the current operating parameters, and can start working directly after power-on.

Multi-channel laboratory micro syringe pump specifications:

Number of Channels

1~8

Infusion volume per microstep

0.000313Ul(100uLSyringe)

Applicable syringe type

0.5uL1mL

Advance per microstep

0.156um

Flow range

0.1uL/h-30mL/min

Max. line speed

79.4mm/s

Min. line speed

7.9um/min

Maximun pace

6933 Step/s

Minimum pace

0.02533  Step/s

Woking mode

Single push   mode, push-pull mode

Linear force

>20Kgf

Control accuracy

Control error   <=0.1%, when the stroke is more than 30% of the full stroke

Control and display

4.3 inch LCD   colorful touch screen

Voltage range

DC18V-DC36V

Working environment

temperature   5-40, relative humidity   <80%

Mainframe dimensions

178*44*54(mm)

Touch screen dimensions

118*86*34(mm)

Weight

0.69kg
