Lab single channel syringe pump Lab single channel syringe pump Lab single channel syringe pump

Lab single channel syringe pump

    Lab single channel syringe pump is a single-channel perfusion/extraction syringe pump, which is mainly used in biological laboratories, with integrated structure. It can hold different sizes of syringes (sample injectors), and the micro syringe pump is suitable for high precision, low flow liquid transport.

Lab single channel syringe pump main functions:

1. Syringe inner diameter input function: You can add a syringe from the list or enter the syringe ID directly.

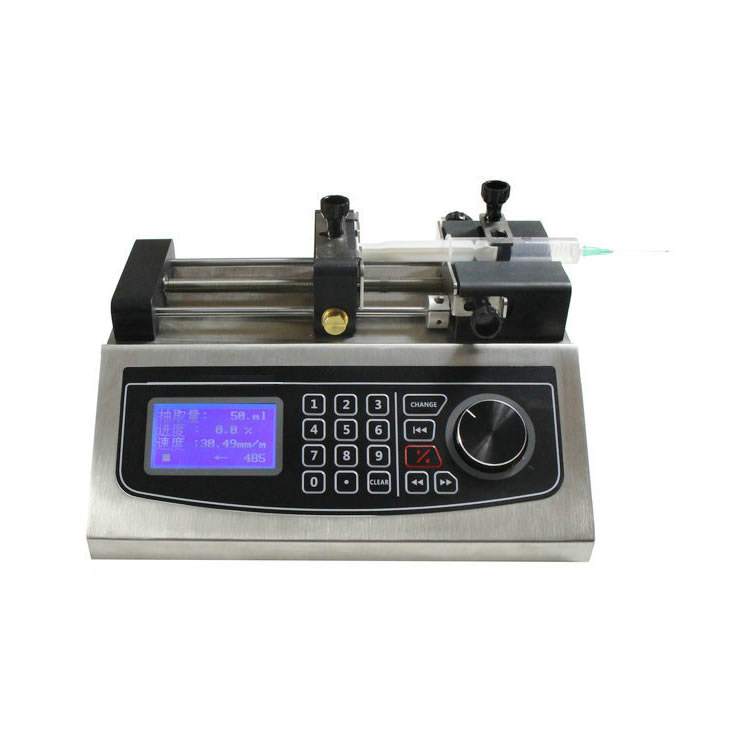

2. The human-machine interface of the micro-injection pump is friendly: the large screen LCD display, The digital knob is used in conjunction with the membrane button for quick and easy operation.

3. Working modes: perfusion mode, extraction mode, extraction perfusion mode, continuous mode.

4. Memory function:

(1)The EEPROM saves the setup parameters and does not need to be reset after power-on.

(2)When the operation is running in the flow mode, the power is turned off. After the power is restored, the parameters can be continuously run or stopped according to the set parameters.

5. Protection function: When the propulsion mechanism of the syringe pump is blocked during the work, the syringe pump will stop the work of the propulsion mechanism and emit a whistle alarm.

6. It can be connected to the host computer by 485 communication bus and controlled by the background software.

7. External control interface: with access to / output control.

8.Calibration function: More accurate flow is obtained through the calibration procedure.

9. Syringe protection function: The syringe can be prevented from being damaged by adjusting the position of the limit block.

syringe pump

Lab single channel syringe pump technical parameters:

Micro syringe pump working mode

Perfusion, extraction

Number of syringes

1

Maximum stroke

140mm

Stroke resolution

0.156μm

Line speed range

5μm/min-65mm/min (flow rate = line speed × syringe   area)

Line speed adjustment resolution

5μm/min

Stroke control accuracy

Error ≤ ± 0.5% (stroke ≥ 30% of the maximum stroke)

Rated linear thrust

>90N

Syringe selection

Built-in main manufacturers, the main model of the   syringe for selection

Syringe definition

May directly enter the inner diameter of the syringe

Flow correction

Get a more accurate volume through the calibration procedure

Operating parameter settings

Dispensing liquid volume, injection time, etc.

Display parameter selection

Fluid volume, flow rate, or linear velocity

Power-down memory

After power-on, you can choose whether to continue working according to the state before power off.

Status signal output

2-channel OC gate signal output for indicating   start/stop and direction status

Control signal input

2 channel start/stop control input end, 1 channel falling edge trigger signal control start and stop; 1 channel TTL level signal control start and stop

Communication Interface

RS485

Dimensions

280×210×140 (mm)

weight

3.69kg

Power supply

AC 90V-260V/15W

Working environment relative humidity

<80%

Working environment temperature

0℃- 40℃
