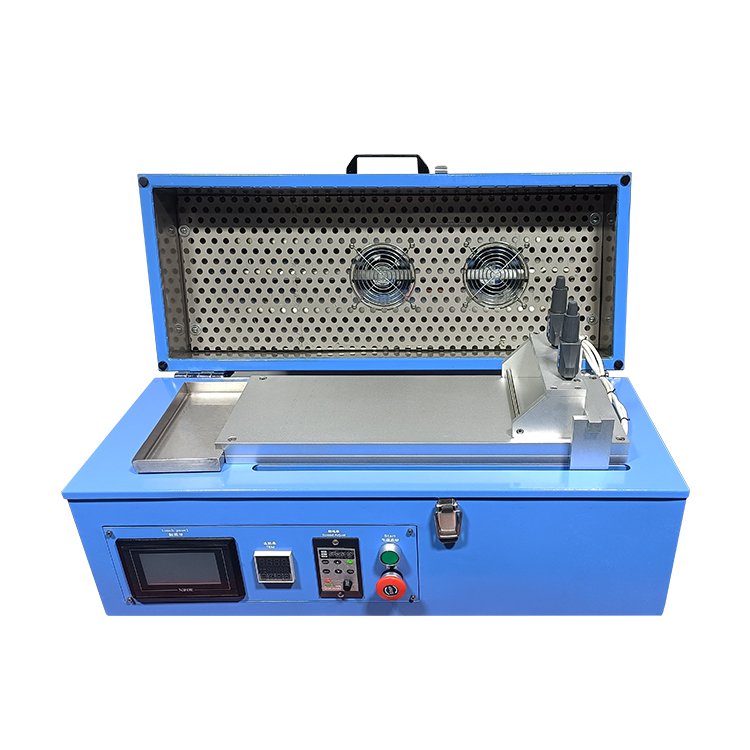

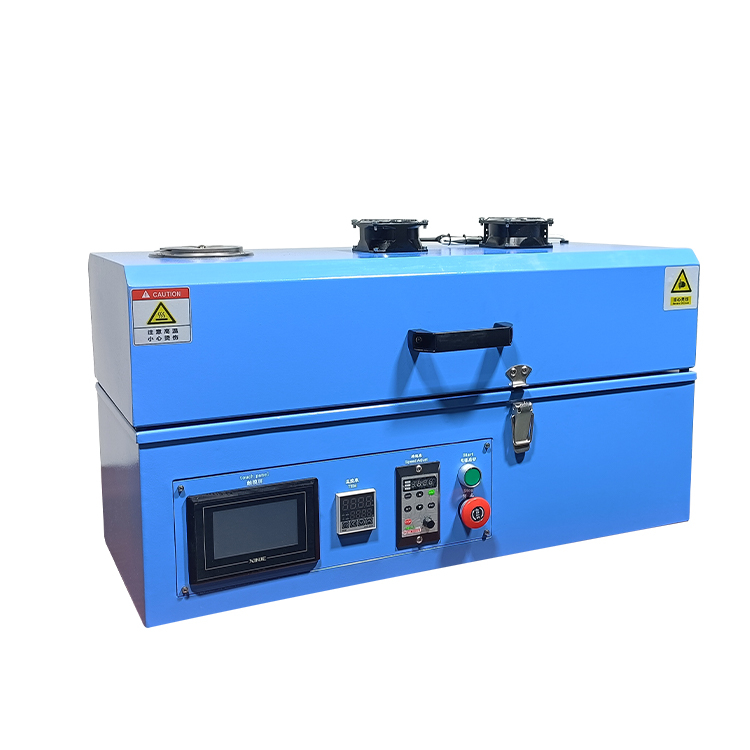

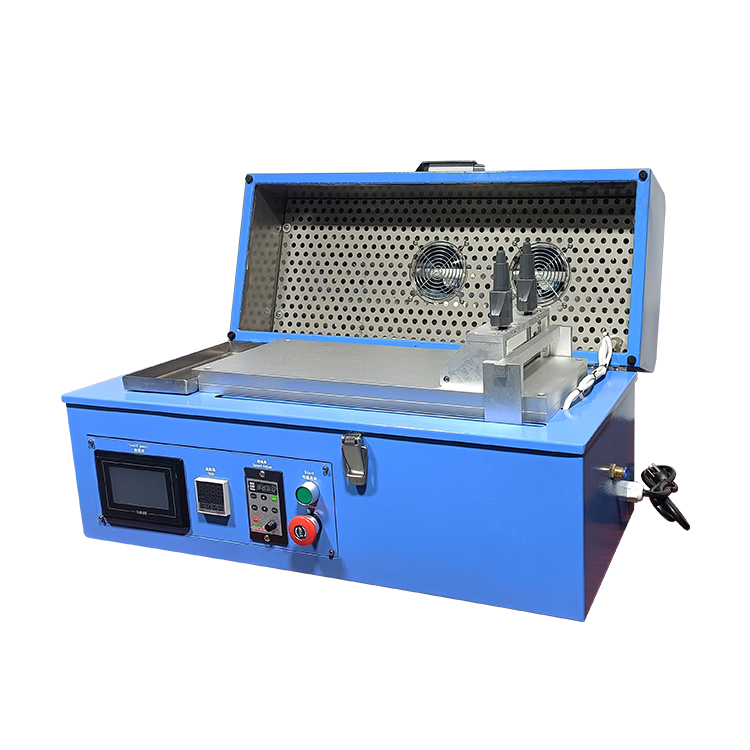

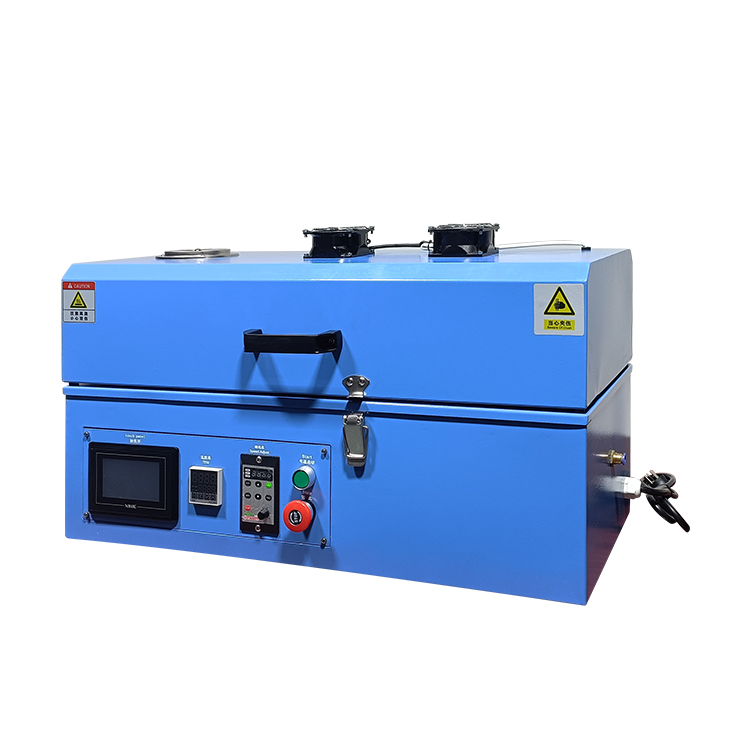

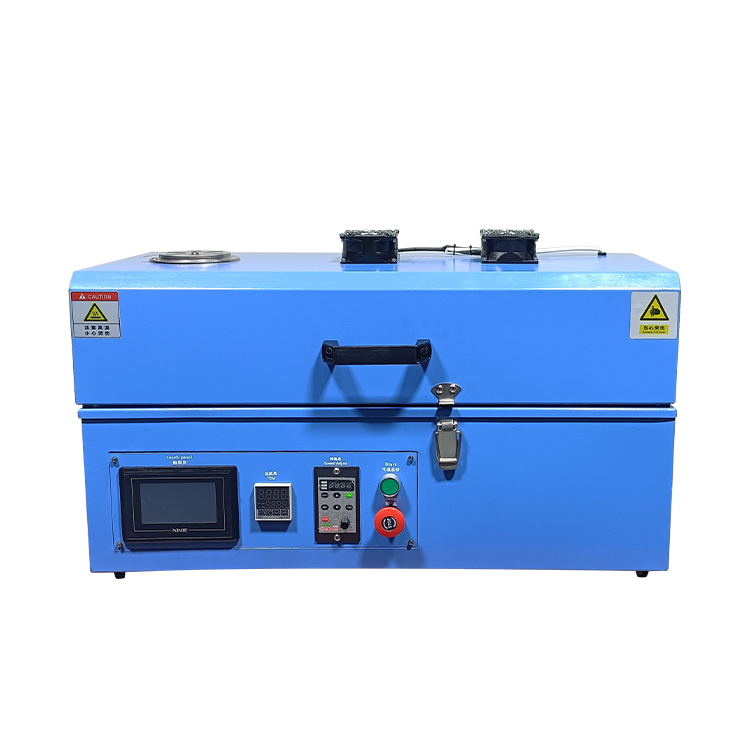

This is a Large Automatic Film Coater with vacuum chuck designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators. It has a unique driving system to produce the smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when coating on the thin substrate and making uniform tape casting. The 100 ℃ heating cover on the top vaporizes the water immediately and there is a micrometer adjustable applicator included for immediate use. This machine can be used for research on ceramic tape casting and Li-Ion battery electrode coating.
Automatic Film Coater Specification:
Working Voltage
| 204-240VAC, 50/60HZ, Please select the voltage based on requirement. |
Max. Power Consumption | 1250W |
Traverse Speed
| · 5 - 100 mm/sec variable · Accuracy: 10mm/sec |
Stroke Length | 10 - 550 mm adjustable by using Adjustable Position Switch |
Max. Coating Dimensions | 250mm(W) x 550mm(L) |
Vacuum chuck
| · Vacuum chuck made of Aluminum alloy with < 1 mm holes · Vacuum Chuck Dimensions: 600mm(L) x 300mm(W) x 20mm(H) |
Vacuum Pump
| · 120L/min Oilless Vacuum Pump |
Heating Cover
| · Voltage Selection: 110VAC and 220VAC · Heating Power: 1200W |
Film Applicator
| · One 250 mm width Micrometer Adjustable Film Applicator is included, with an adjustable thickness of 0.01 mm - 5 mm · Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating · Note: Thinnest film can be achieved is > 10 micron |
