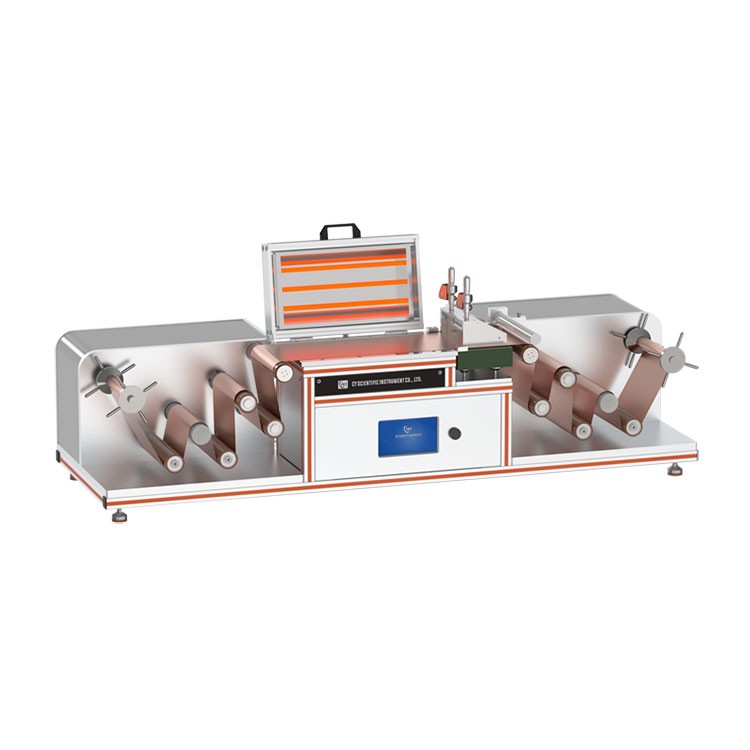

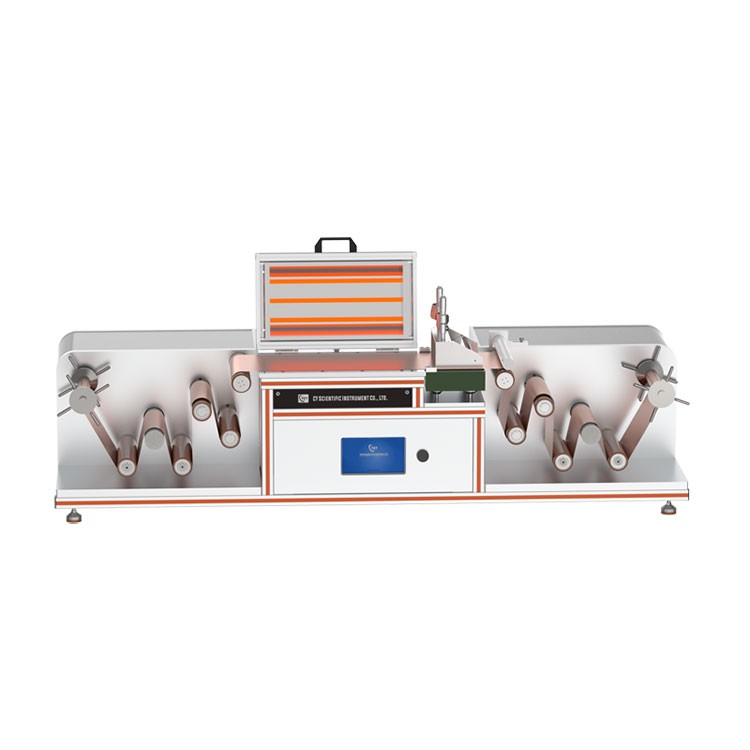

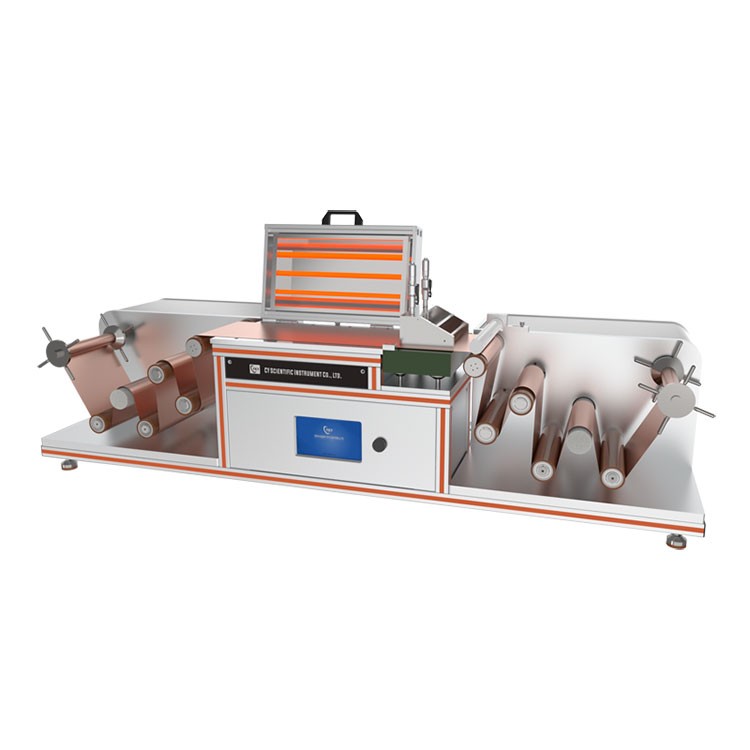

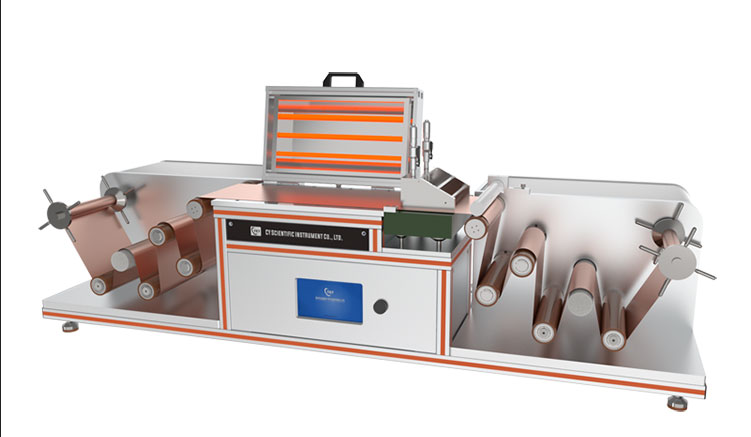

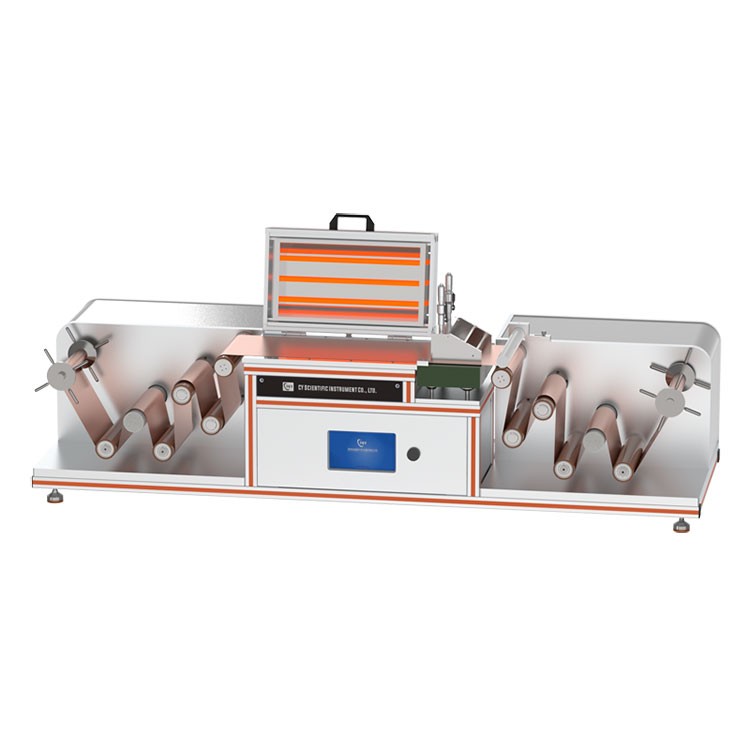

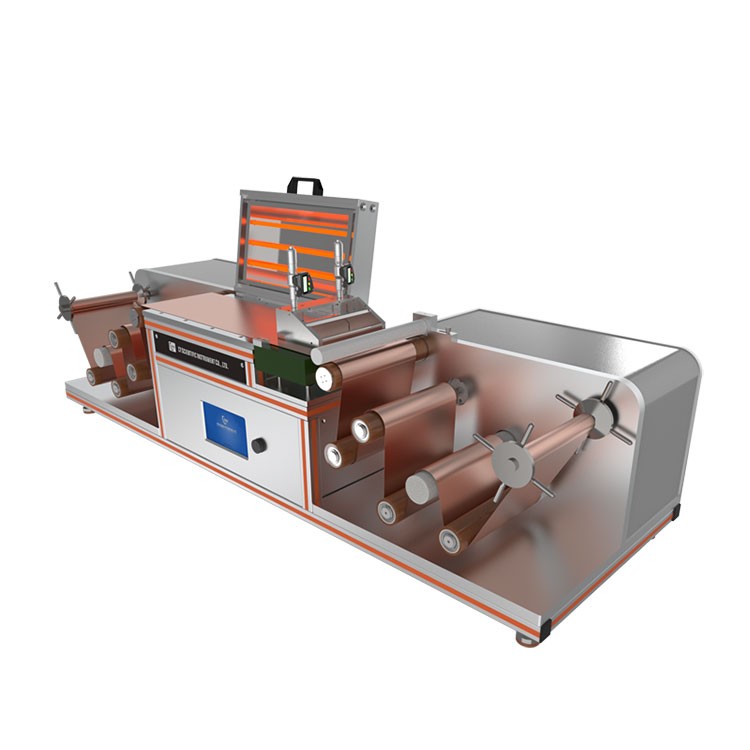

this model of roll to roll tape casting film coater is mainly used for coating liquid or colloidal film in laboratory. The equipment adopts step-less variable speed motor to precisely control the coating speed, so as to achieve the purpose of uniformly rotating the roller to drive the aluminum foil or copper foil for coating; the doctor-blade is made of all stainless steel, with constant weight, which can improve the consistency and uniformity of the coating; the coating platform is equipped with water cooling pipeline, which can be cooled by circulating water, so that the substrate and film material can be maintained at a low temperature;The rewinding and unwinding device adopts feedback adjustment, which can automatically control the speed within ± 1 rpm, effectively ensuring the uniformity of the coating film; the upper cover has the functions of dust prevention and heat preservation, and makes the equipment more beautiful.
Lithium battery roll to roll film coating machine Technical parameters:
Product model | CY-AFC500R-HTUVP |
Power supply | AC220V, 50Hz |
Total power | 3500W |
Heating | Hot air heating at the bottom Maximum temperature: 120℃ Temperature control accuracy: ±1℃ Drying area: length 1m, width 600mm |
Film thickness accuracy | 0.01mm |
Vacuum substrate | Material: aluminum alloy substrate Size：400mmW*400mmL |
Vacuum pump | Mini vacuum pump |
Film coater | Scraper film maker Coating width: 500mm Scraper adjustment: manual adjustment, dial indicator display accuracy 1um |
Substrate amplitude | 520mm |
Coated amplitude | 500mm |
Winding mechanism | The speed of the rewinding and unwinding device is adjustable from 100-400mm/min. The machine has feedback adjustment and can automatically correct the speed. Width of guide roller: 600mm Tension control: max. 50N Rewinding and unwinding diameter: max. φ200mm Rewinding and unwinding precision: ±0.5mm |
Overall dimensions | 2000mm x 900mm x600mm |
Weight | About 200Kg |
