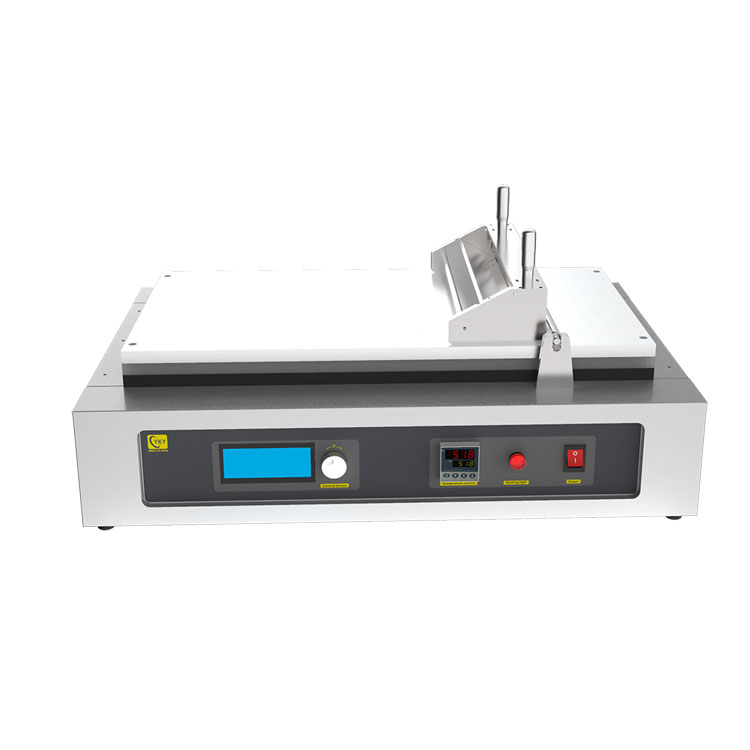

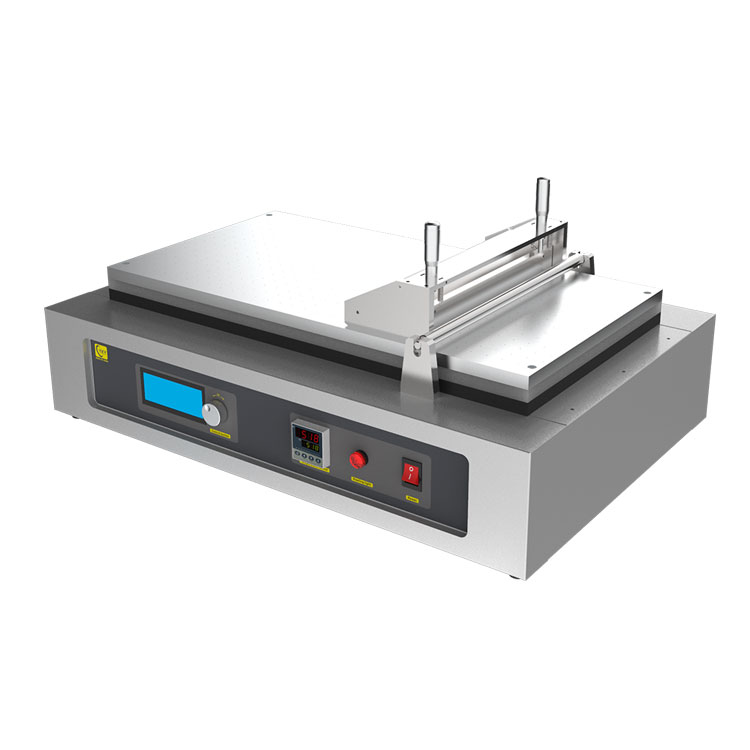

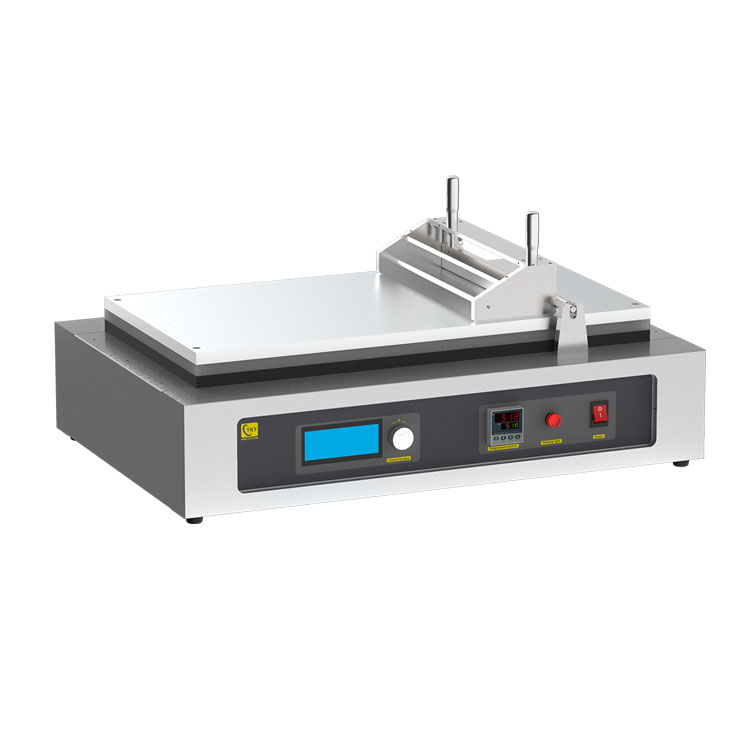

Automatic tape casting film coaters is widely used in various coating research, such as ceramic film, crystal film, battery material film, special nano film.
Main features of automatic tape casting film coater:
1. The coating speed can be adjusted within the range of 0-100mm / S;
2. Vacuum aluminum disk, which can quickly place or remove the substrate;
3. The stroke can be adjusted by inductive proximity switch between 10-250mm;
4. Scraper with micrometer adjustable film applicator (accuracy 0.01mm), width 100mm;
5. Small size, saving space;
6. The appearance is exquisite, the sheet metal adopts the three-dimensional geometric design, simple and beautiful.
Technical parameters of automatic tape casting film coater：
Coating speed | 0～100mm/s |
Maximum stroke | 300mm |
Vacuum plate | aluminum plate with vacuum |
Vacuum plate size | L415mm×W200mm×H30mm |
Adjustable range of film applicator | 0.01～3.5mm |
Power supply | 220V/50Hz |
Weight | 50KG |
Dimension | L500mm×W310mm×H200mm |
Optional accessories | Micron adjustable film applicator 50-150 mm wide, width can be specified according to requirements |
