Double side R2R coating equipment for battery electrodes

Double side R2R coating equipment for battery electrodes

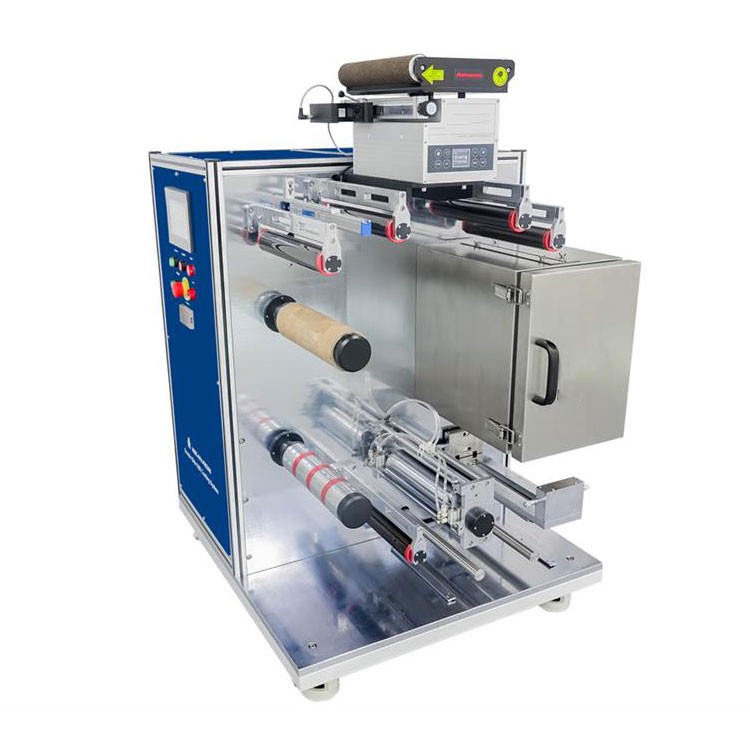

Double side R2R coating equipment for battery electrodes is a vertical roll to roll coater designed for preparating double side electrode sheet for both Li-Ion and NiMH batteryies.It is excelent for making double coating for porous substrate,and has small footprint to save lab space. The coater also can be used for make double coating for othermaterial from slurry.

Inquire Now Next Product

Double side R2R coating equipment is applied to the coating of materials such as nickel batteries and super capacitors. The equipment adopts dip-coating slurry, scraper metering, and continuous double-sided coating of the substrate at one time.

Double side R2R coating equipment for battery electrodes specifications:

Working Voltage	208 - 240 V AC, 50/60Hz, Single Phase
Max. Power Consumption	3 KW ( 20A Air breaker required )
Coating Method	Coating Thickness Precison: +/- 0.003mm
Max. Coating Width	250mm
Thickness adjustable range	0- 5mm
Coating thickness (after drying)	30 - 200um (for most kinds of battery electrode coating material) Note: The dried coating thickness results vary depending on the physical property of the coating material.
Thickness Precision	± 3 µm
Coating Speed	0-750 mm / minute
Max. Drying Temperature	150°C
Temperature Accuracy	±1°C
Heating Zone Length	710mm (28")
Reeling/Unreeling Shaft	75mm (ID)
Max. Reeling/Unreeling Diameter	250mm (OD)
Max. Coating Length	1)Depending on the coating and substrate thickness. 2)Typically, 10um thick foil with 100um coating can get 600 meters of electrode length coated per run.
Exhaust Port Size	127mm O.D
Compressed Air	0.5-0.8 MPa (Air compressor not included. )
Product Dimensions	L1100mm×W1200mm×H1800mm
Net Weight	1000 kg (2200 lbs)
Warranty	1)One Year limited warranty with lifetime support. 2)Rusting and damage due to improper storage condition or maintenance are not covered by warranty.
