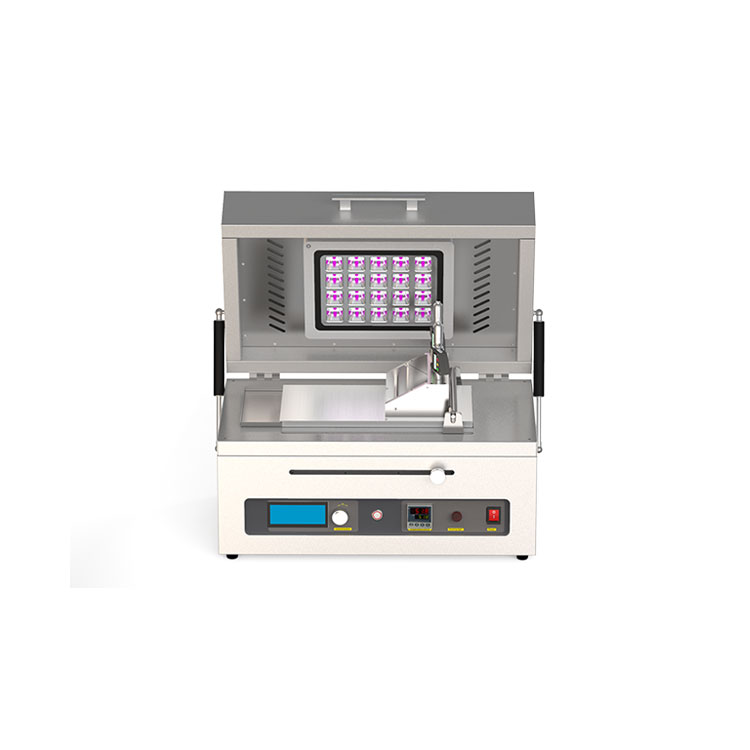

This product is widely used in various high-temperature coating films, such as ceramic films, crystal films, battery material films, and special nano-films; it can adapt to the future development of film-forming science and technology under high temperature conditions.

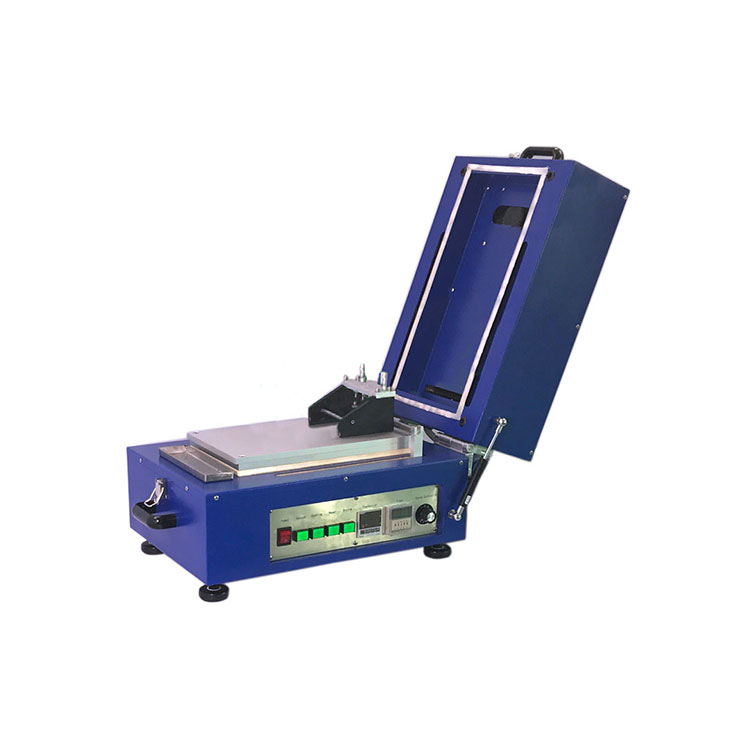

Main features of small film coater:
1. Drying system with strong wind heating and digital display temperature control, the maximum working temperature is 200C;
2. The coating film speed is adjustable in the range of 0~100mm/sec, and has digital display;
3. Vacuum aluminum plate, can quickly place or remove the substrate;
4. The stroke can be adjusted by the travel switch between 10~250mm;

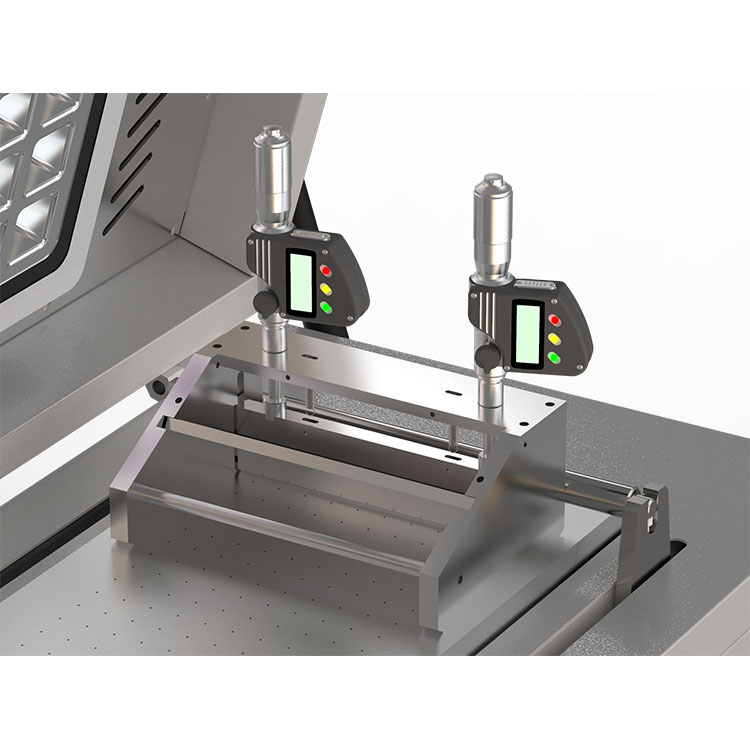

5. With a doctor blade that adjusts the thickness of the coating film (accuracy 0.02mm) width 0-150mm;
Technical parameters of small film coater:
Product name | Small heating type film coater |
Product model | CY- AFC360-HTUV |
heating | Top UV (WL: 365nm) bottom heating, 120ºC |
Coating speed | 0-100mm/s adjustable Accuracy: 10mm/s |
Coating stroke | 10-250mm adjustable |
Vacuum aluminum plate | 360mm×200mm (L×W) |
Vacuum pump | Oil-free vacuum pump |
Film applicator | 100mm micron adjustable, adjustable range 0.01mm-3.5mm Including stroke pusher and waste plate, used to push the film maker |
Voltage | 220V 50HZ |
