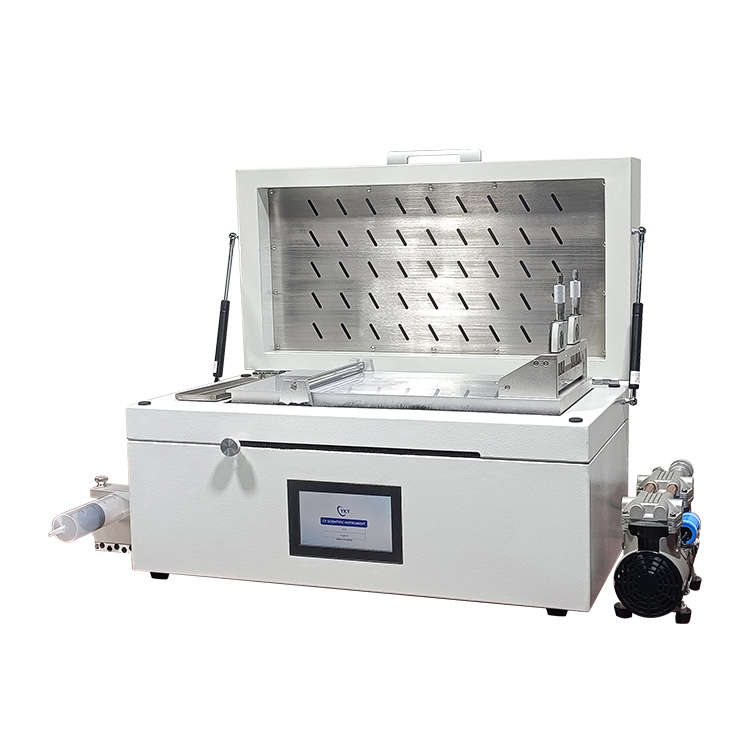

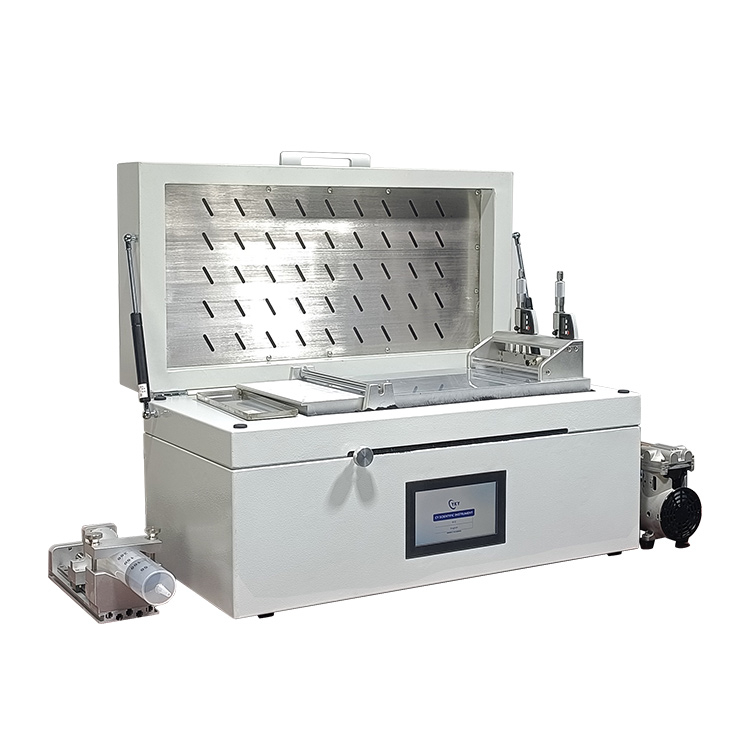

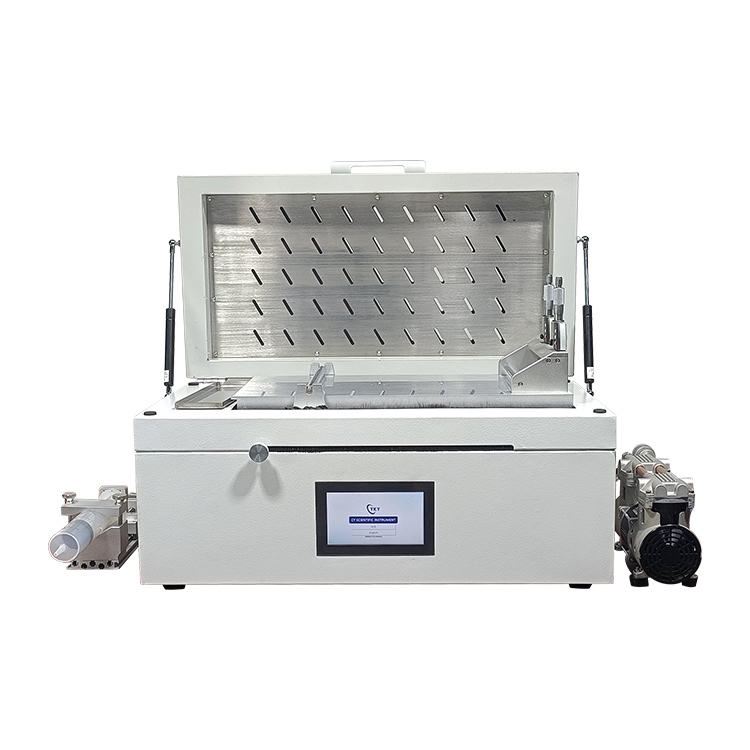

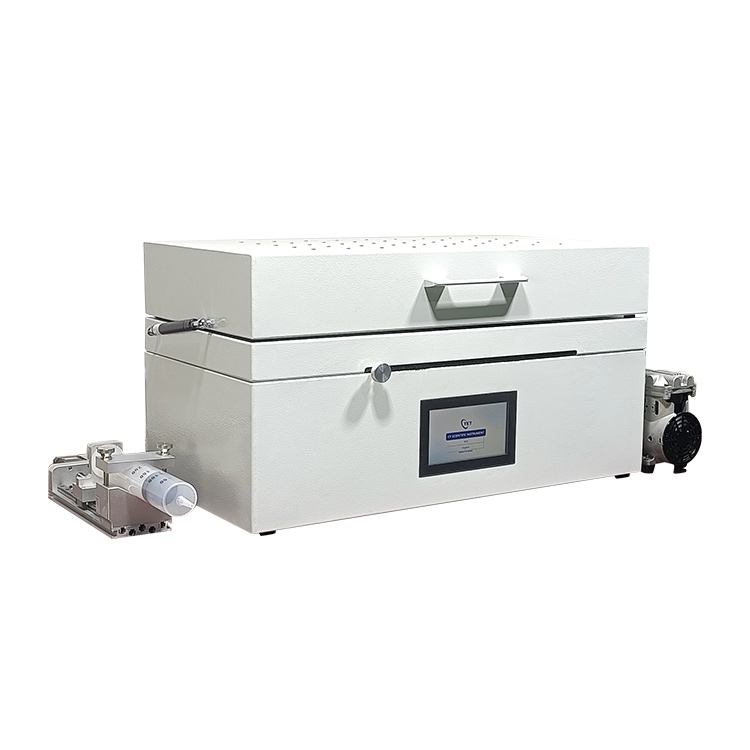

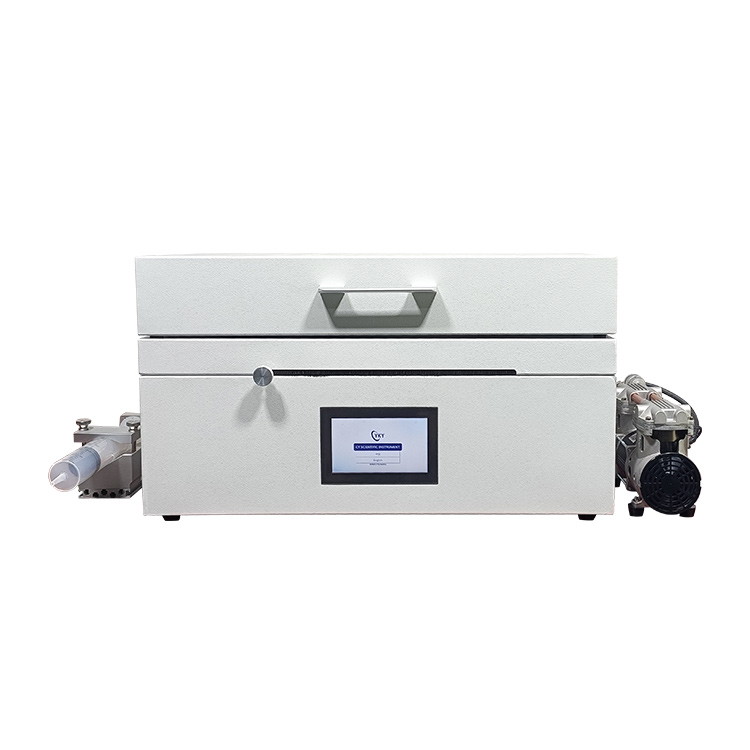

Lithium ion battery slit extrusion coater

Lithium ion battery slit extrusion coater

Slit extrusion coater, can be continuous and intermittent coating and other types of coating requirements. The equipment has high coating precision, good consistency and stability, and is widely used in lithium-ion battery, graphene film, optical film, ceramic film, high-end tape and various functional film industries

Inquire Now Next Product

Slit extrusion coater features:

Can achieve continuous, intermittent and other shapes of coating; Slit extrusioncoating method, high coating accuracy, good coating consistency; Substrate tension control, walking stability, configuration of deviation correction device; Hot air oven, upper and lower double-sided blowing, drying effect is high quality; PLC control,touch screen operation, easy to use

Slit extrusion coater technical parameters:

Coating head	200mm width slot extrusion coater
Minimum coating thickness	5 microns (related to liquid viscosity) Built-in two micrometer heads, due to the modulation of the slit coater with the base of the interglandular
Mechanical speed	Extrusion coating head movement speed 0.1um/S-1m /s
Base material thickness	Max: 5mm
Vacuum substrate	The coating machine substrate is made of aluminum alloy with uniform pores, which can generate vacuum through the built-in vacuum pump and adsorb the substrate to ensure the smooth sample
Substrate size	L550*W240mm
Substrate heating	Built-in heating element, can be heated up to 120C (heating time more than half an hour)
Control system	All operation controls are integrated on the seven-inch touch screen for easy operation
Oil-free vacuum pump	50L/min
Single channel injection pump	Flow rate: 0. 001ul /min -- 43.349ml/min
