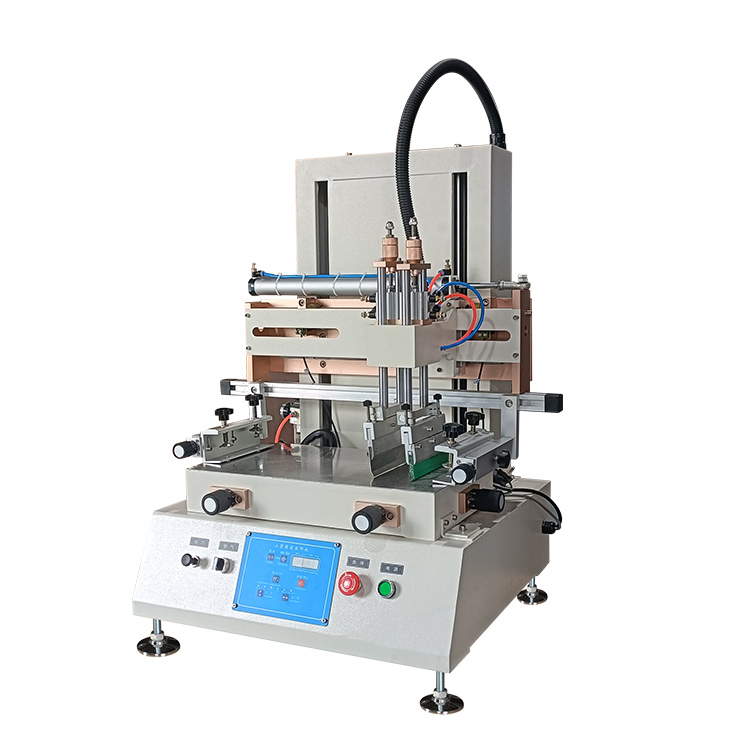

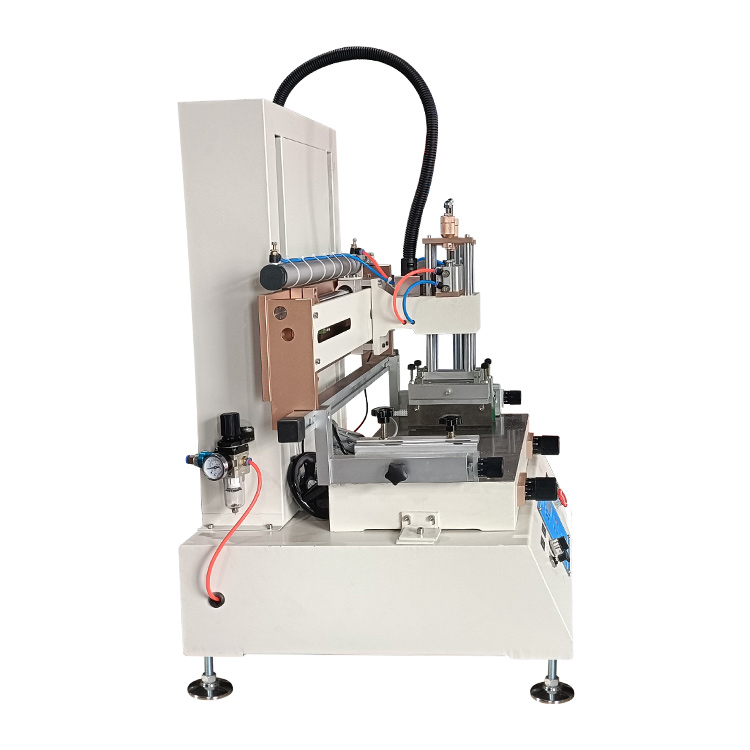

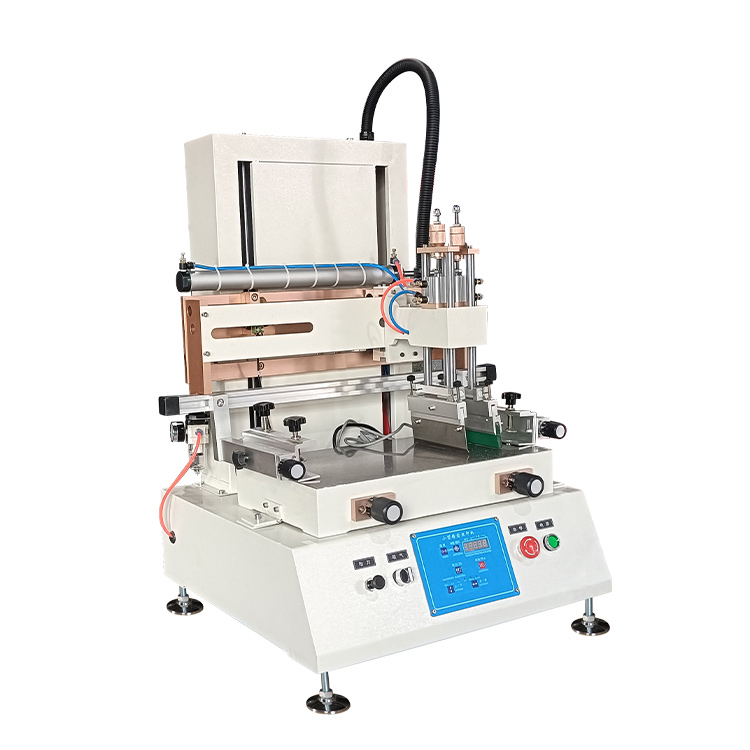

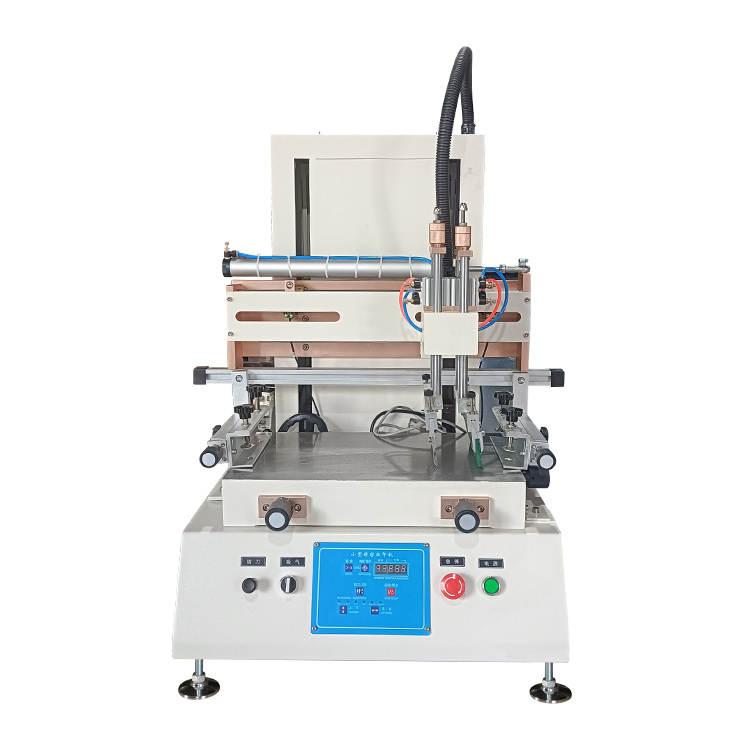

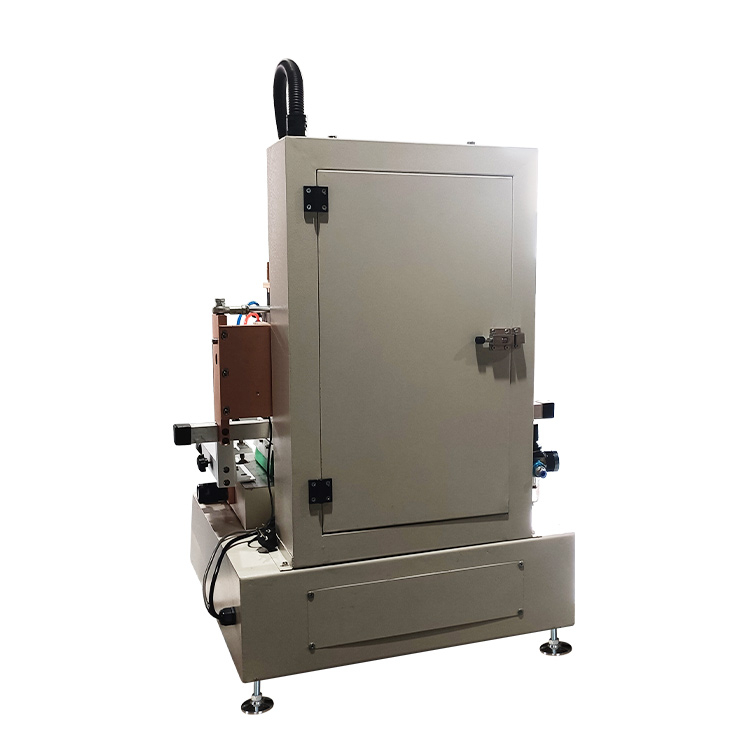

Small high precision screen printing machine
Suitable for printing silica gel, plastic buttons, PET, glass, plastic products, nameplate, trademark, IC board, metal plate, liquid crystal display board and signs and other plane profile quality
Compact shape no noise, cast aluminum polishing table, oil return scraper double mode selection, adapt to various printing requirements. 1, small desktop screen printing machine microcomputer control high degree of automation, simple operation. 2, small screen printing machine using imported famous factory steam components, reliable performance. 3, precision guide instead of guide column increase accuracy, smooth lubrication, high printing accuracy, more convenient and fast adjustment. 4, the use of original Japan and Taiwan imported pneumatic components, pneumatic head lateral movement by Germany imported rodless cylinder drive, reaction speed, adhere to high precision casting machine quality. 5, the printing stroke and speed can be adjusted to meet different printing requirements. 6, automatic balance scraper, can ensure the balance of printing pressure. 7, keyboard screen printing machine adopts imported shaft, shaft sleeve makes screen scraper smooth glide printing. 8. The running speed of the sliding part can be adjusted independently, which is convenient and fast to use. 9, according to the substrate workbench can choose fine grinding high hardness suction table/T groove table, uniform cloth suction holes, strong vacuum adsorption, to ensure the accuracy of multi-color color. 10, can be set manual/semi-automatic/automatic three modes, printing action indirect time can be controlled digitally.
screen printing machine Range of adaptation:
Suitable for printing silica gel, plastic buttons, PET, glass, plastic products, nameplate, trademark, IC board, metal plate, liquid crystal display board and signs and other plane profile quality.
screen printing machine Technical parameters:
Printing color: | Monochrome | Yield: | 2000 |
Type of product: | Brand New | How to operate: | Manual/semi-automatic/fully automatic all-in-one machine |
Printing surface: | Flat surface | For: | Any flat material |
Applicable material: | Any material | Printing speed: | 2000 (pcs/hr) |
Maximum printing area (L x W) : | 300 x 200 (mm) | Substrate thickness range: | 0-100（mm） |
Table size: | 250*450（mm） | Table vertical and horizontal adjustment amount: | 0-10（mm） |
Mesh frame size: | 350*520（mm） | Power supply: | AC220V 50Hz |
Overall dimensions: | 585*565*1000（mm） | Weight: | 150（kg） |
Model: | LWS-2030 | Specifications: | 585*565*1000（mm） |
Packing: | Wooden frame/wooden box |
|
|
