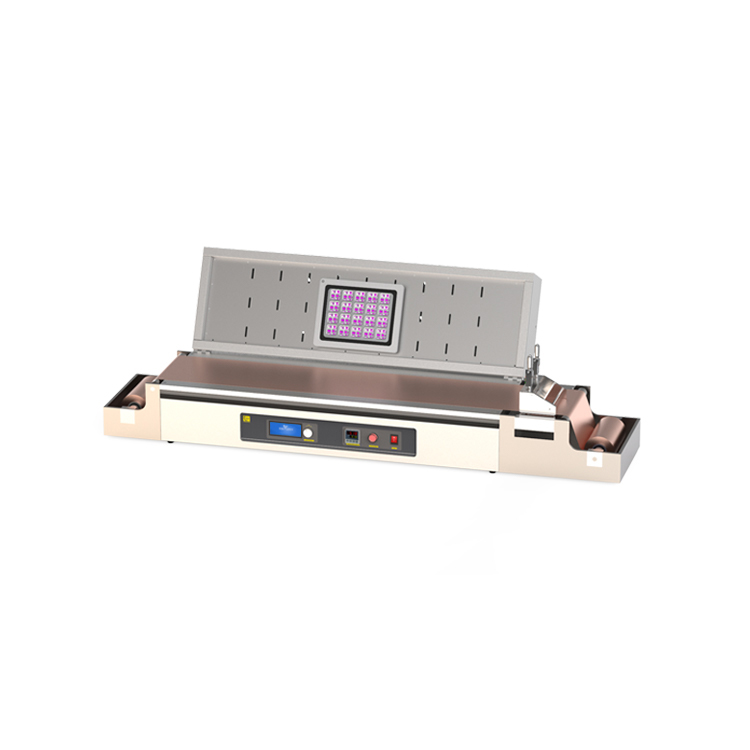

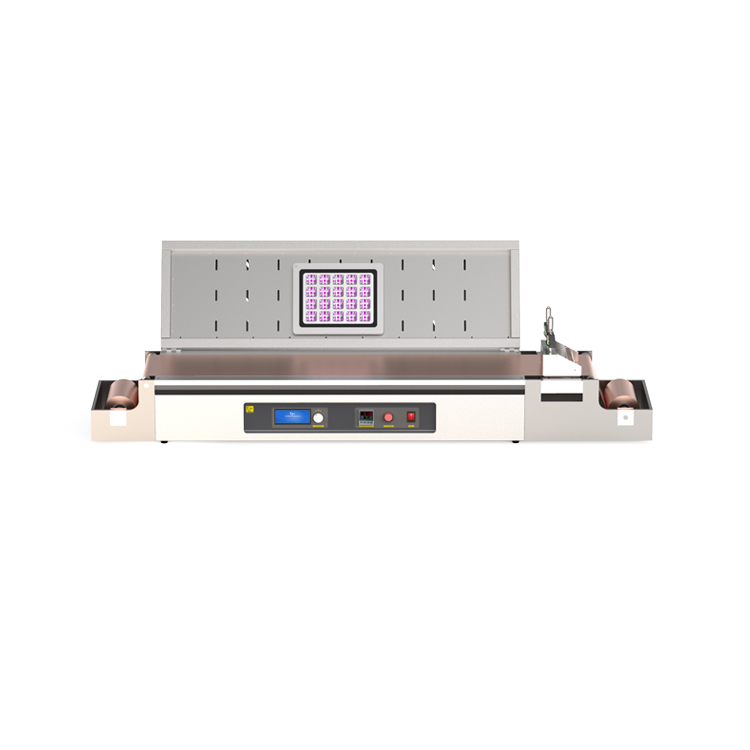

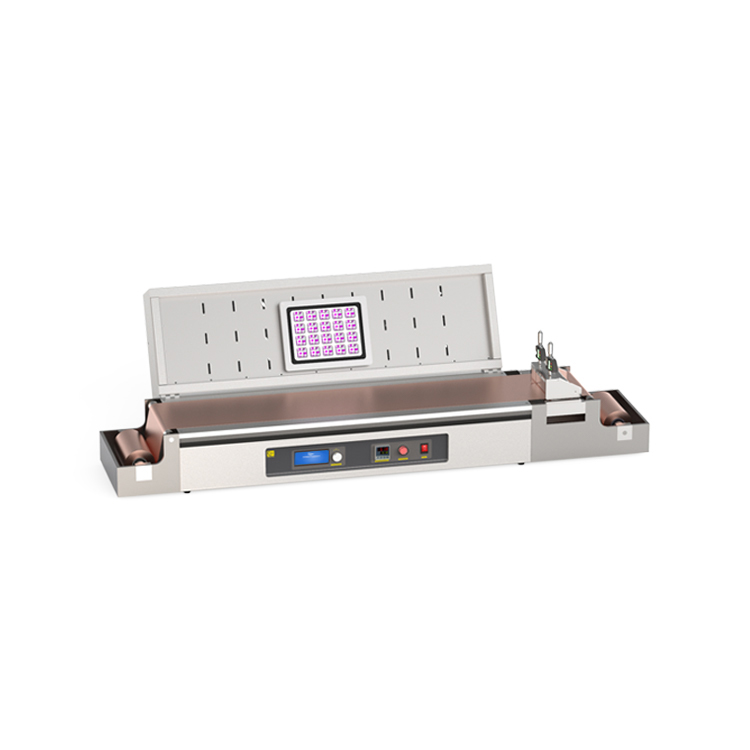

This small automatic drying film coating machine is mainly used for coating liquid or colloidal film in the laboratory. The equipment uses a continuously variable motor to accurately control the coating film speed to achieve the purpose of advancing the scraper at a uniform speed for coating. The scraper adopts All stainless steel material has a constant weight, which can improve the consistency and uniformity of the coating film. The equipment adopts the bottom vacuum to absorb the sample, and has the bottom heating function, the heating temperature can reach up to 120℃, and the function of baking the film is realized during the film coating process, so that the film can be dried quickly.
At the same time, the equipment is equipped with a winding and unwinding device, which can be used for continuous coating of copper foil or aluminum foil. The upper cover is equipped with an ultraviolet curing lamp, which can be used for curing and drying the film. This equipment is very suitable for continuous production of battery electrode materials.
Roll to Roll film coating machine specifications:
Product number | CY-AFC360R-HTUV |
Input power | AC220V, 60Hz |
Heating power | 3000W |
Total power | 3100W |
Coating vacuum chuck size | 360mm x 200mm |
Film thickness accuracy | ±0.01mm |
Film applicator | 300 width |
Rewinding and unwinding mechanism | The speed of the rewinding and unwinding mechanism is adjustable from 1 to 400mm/min, and the mechanism adopts feedback adjustment, which can automatically correct the speed deviation |
Heating temperature | ≤120℃ |
Top UV | Wavelength 365nm |
Temperature accuracy | ±1℃ |
Overall size | 1245mm x 500mm x 270mm (close the protective cover) 1245mm x 550mm x 670mm (open the protective cover) |
Net weight | About 100kg |
Mechanical pump | FY-4C-N |
Pumping rate | 4m3/h |
Exhaust interface | φ8 quick screw joint |
