Mini tape casting coater with heated vacuum bed and pumpMini tape casting coater with heated vacuum bed and pumpMini tape casting coater with heated vacuum bed and pump

Mini tape casting coater with heated vacuum bed and pump

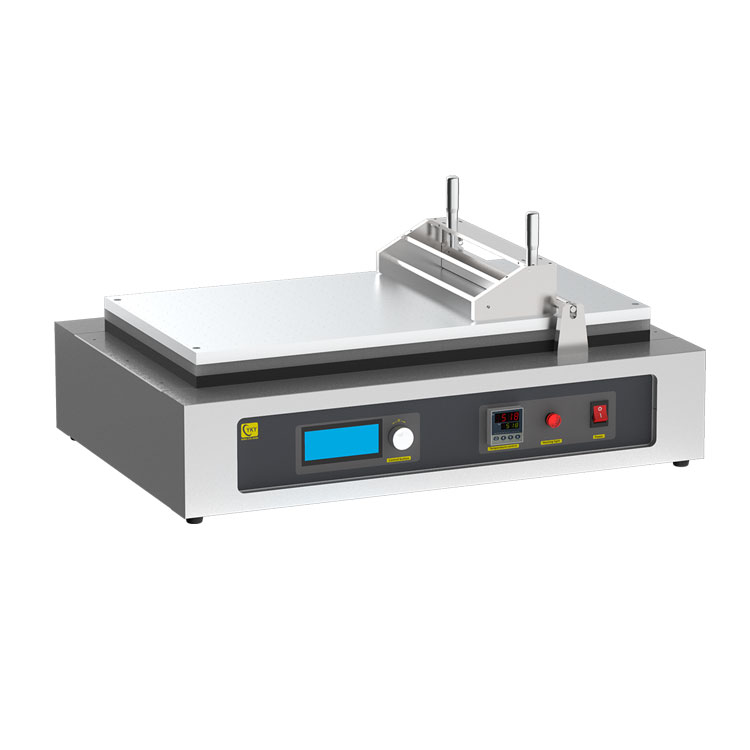

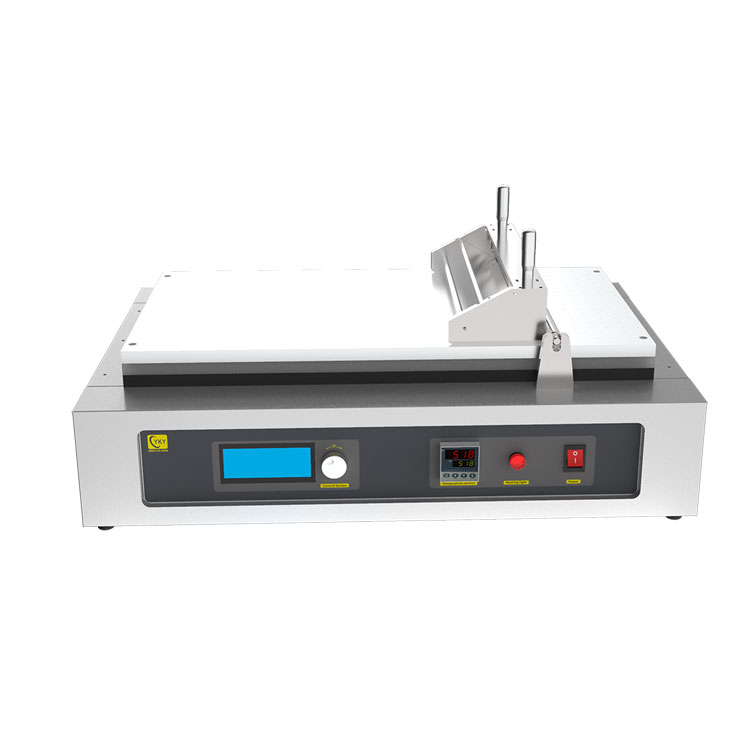

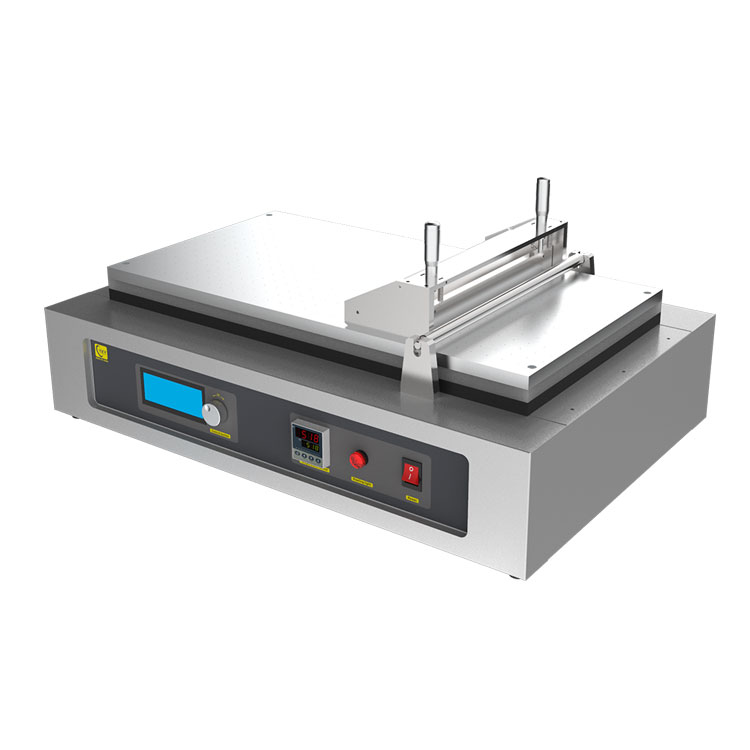

    Mini tape casting coater with heated vacuum bed and pump is designed for the fixed thickness and extra thin polymer coating or conductive ceramic film on various substrates. It is small enough to put into glove-box through its air-lock chamber and can be used in Ar gas.

Mini tape casting coater is a casting coater with the bottom vacuum chuck, which is heatable up to 100ºC and Film applicator is included.The equipment is designed for electric drive to achieve coating, bottom heating and drying, 24V power supply can be used in the glove box, especially suitable for the research and development of trace materials in universities and research institutes.

Mini tape casting coater with heated vacuum bed and pump specifications:

Power supply

Voltage single phase 100~240VAC, frequency 50/60Hz, power 230W

Heatable Vacuum Platform

· Vacuum chuck is made of aluminum alloy with the micro-size holes

· Vacuum chuck Area: 200 mm (L) x 130 mm (W)

· The heating elements are preinstalled inside the chuck

·  Digital temperature controller ( single point ) with +/- 1ºC accuracy

· The maximum temperature is 100ºC

Top Cover

Top cover is included

Vacuum Pump

·  One 24VDC pump is included.

·   The vacuum gets power from the coater.

·    8mm O.D. tube fitting for vacuum chuck connection.

Film Applicator

·    Built in pushing bar for using micrometer adjustable applicator

·     A fixed-thickness film applicator with various thickness (5μm,10μm,15μm,20μm) is included for immediate use

·     Maximum coating width of the standard film applicator is 80 mm

·    The DC 24 V motor drives the pushing bar continuously to the adjustable position

·     A waste plate for extra slurry is included.

Slurry Boat

A stainless steel slurry boat is included

Maximum Coating Area

200 mm (L) x 100 mm (W)

Accurac of Film Thickness

+/- 2um

Traverse Speed and Distance

·  Travel Speed: 0 - 50 mm/s adjustable

·  Travel Distance: 0 - 360 mm adjustable

Product Dimensions

·   360 L x 220 D x 210 H with cover (mm)

·    155mm H (without cover)

Net Weight

18 kg (40 lbs)
