Large automatic film coating machine with vacuum chuckLarge automatic film coating machine with vacuum chuck

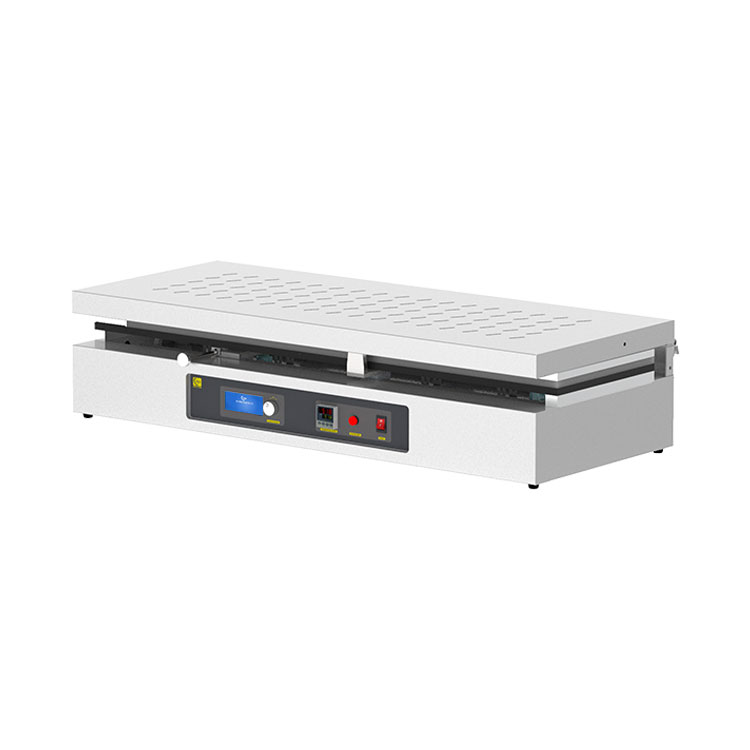

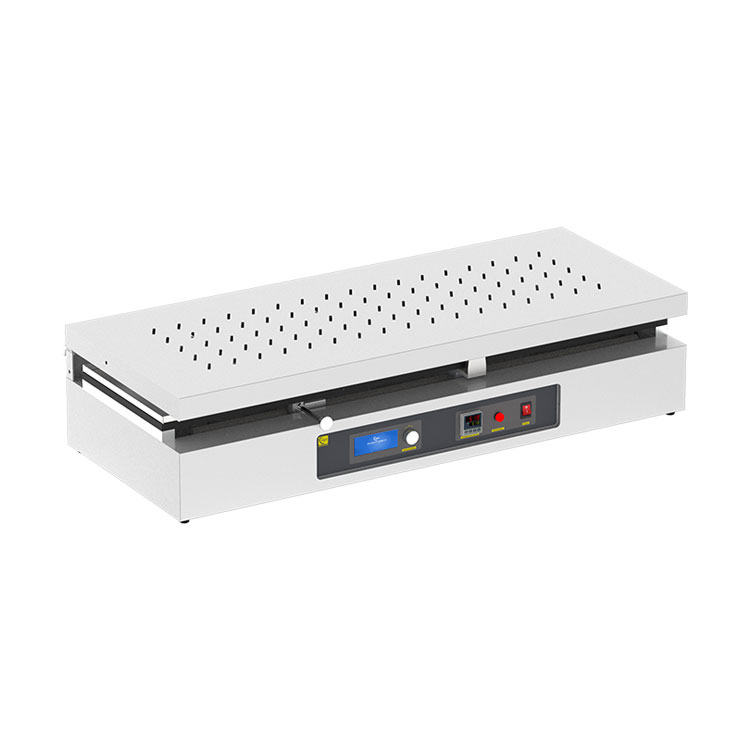

Large automatic film coating machine with vacuum chuck

    Large automatic film coating machine has a unique driving system to produce the smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when coating on the thin substrate and making uniform tape casting.One micrometer adjustable applicator is included for immediate use.

Large automatic film coating machine is widely used in various high temperature coating research, such as ceramic film, crystal film, battery material film, special nano film. Automatic coater uses a vacuum adsorption method to fix the substrate, so that the substrate is free from wrinkles during the coating process, thereby making the coating more uniform and smooth. The width of the film can be controlled according to the width of the film forming blade, and the baffle in the middle of the blade can be moved left and right. When the baffle and the side of the blade completely coincide, the film width reaches the limit.The length of the film can be controlled according to the stroke of the blade, and the limit stroke of the blade is 550 mm.

Large automatic film coating machine with vacuum chuck specifications:

Working voltage

Input: 24VDC

A UL/CSA listed 100-240VAC IN - 24VDC OUT power adapter is included.

Max. Power Consumption

100W

Traverse Speed

·  5-100 mm/sec variable

·  Accuracy: 10mm/sec

Stroke Length

10-550 mm adjustable by   using Adjustable Position Switch

Max. Coating Dimensions

250mm(W) x 550mm(L)

Vacuum chuck

·  Vacuum chuck made   of Aluminum alloy with <1 mm holes

·   Vacuum Chuck Dimensions:   600mm(L) x 300mm(W) x 20mm(H)

Film    Applicator

·  One 250 mm width Micrometer Adjustable   Film Applicator is included, with adjustable thickness from   0.01 mm - 5 mm

·  Traverse Pusher is included   for pushing the doctor blade to ensure constant speed coating

·   Note: Thinnest film can be   achieved is > 10 micron

Product Dimensions

805mm(L)×430mm(W)×223mm(H)

Net Weight

30 kg (67 lbs)

Warranty

One year limited warranty with lifetime   support

Coating machine video:
