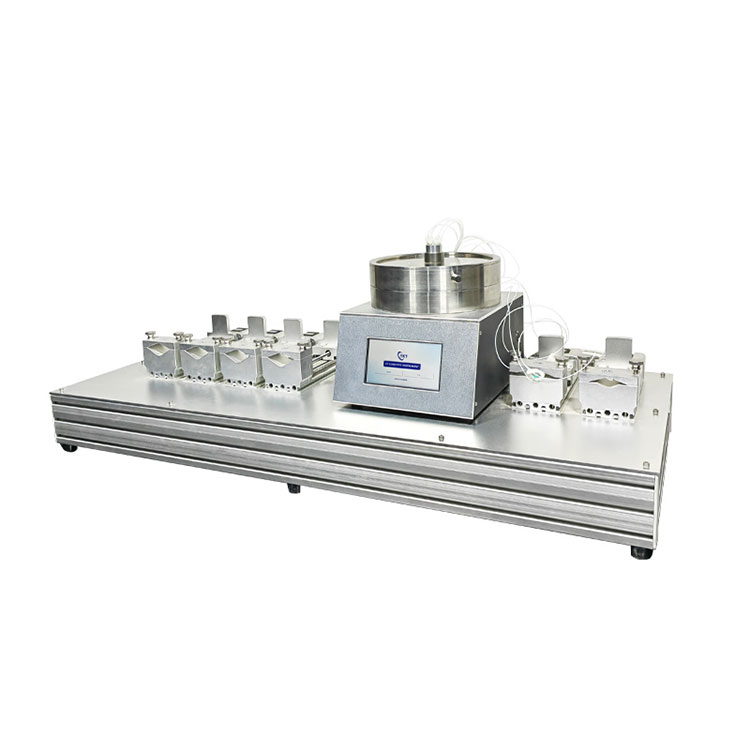

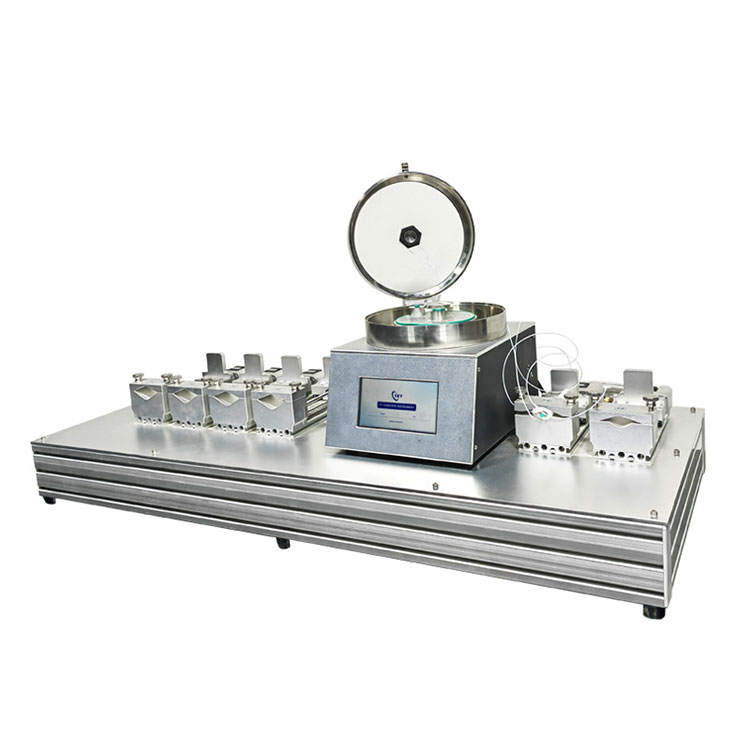

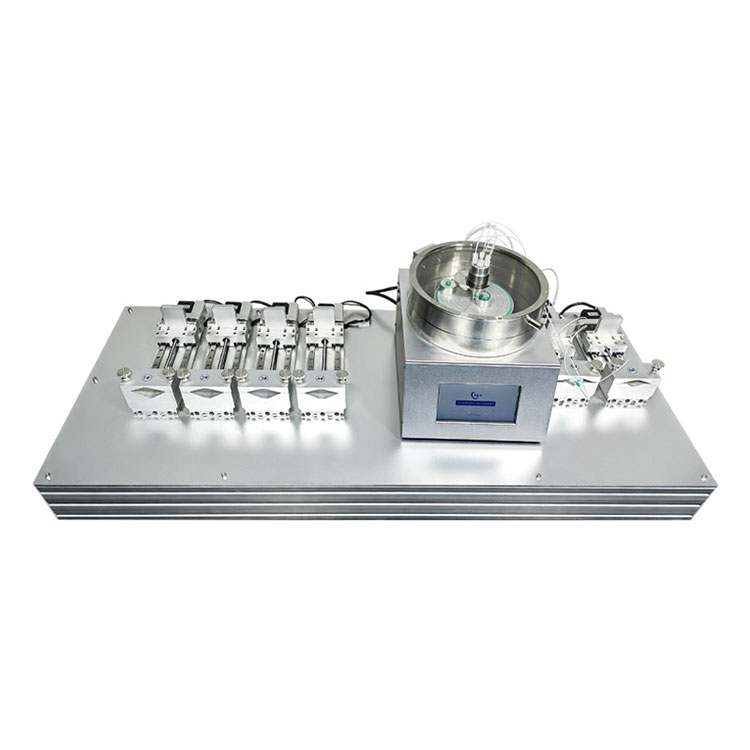

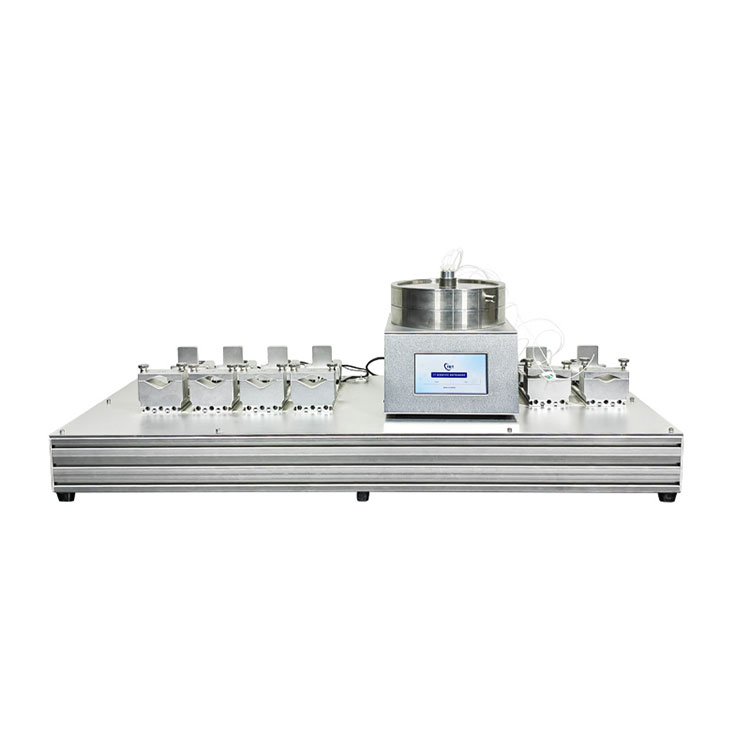

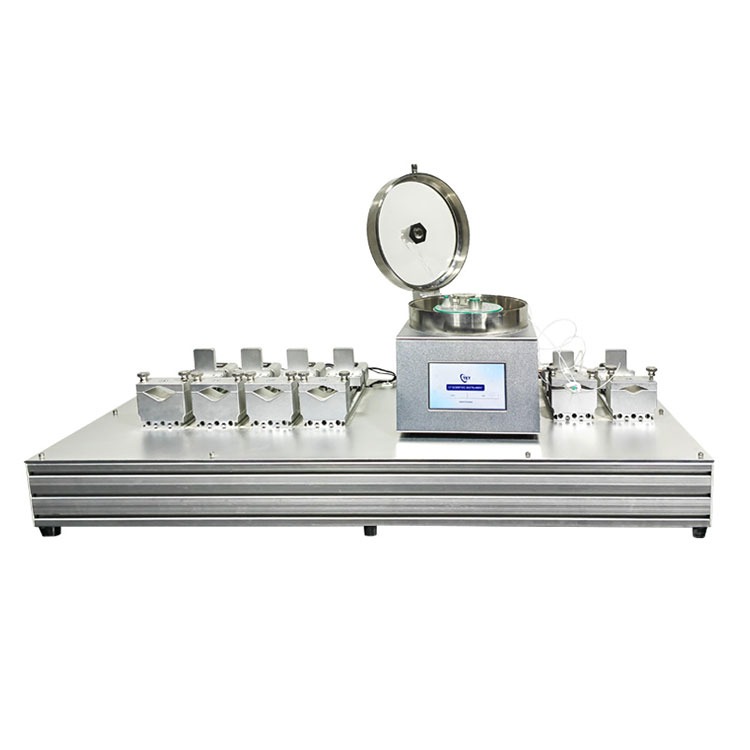

8-inch spin coater with 6-channel independent control injection pump

Input power supply

AC220V, 50Hz

Sample dimension

Max. Dia. 8"   (~200mm)

Chamber material

Stainless   steel

Upper cover material

PVC,   convenient to observe the spin-coating status

Rotating speed

0~8000rpm adjustable

Accelerated speed

100~5000rpm/s

Speed resolution

1rpm

Operating mode

Touch screen   control

Syringe pump device

6-channel   independent control syringe pump, and the control program is compatible with   spin coater

Applicable syringe specification: 1ml - 60ml

Max. Stroke: 90mm

Linear velocity range: 7.94um/min-79.4mm/min

Stroke control accuracy: Error≤±0.5% (stroke ≥30% of the max.   stroke)

Rated linear thrust: >90N

Dispensing device

Automatic and   programmable dispensing;

6 dispensers,   no cross contamination;

Accurate control on 2   dispense lines: Repeatable dispense amounts, min. dispense amounts: 50 ul±5ul. These dispense lines carry toluene. Other 4   dispensers can be less accurate and carry octane or acetonitrile;

Tubes,   syringes......are robust to solvent toluene, octane, acetonitrile

Vacuum chuck

4 pieces   (diameter 10mm, 25mm, 55mm and 150mm)

Vacuum pump

Oil-less pump

Pumping speed

50 L/min

Dimension of spin   coater

~290mm*365mm*300mm

Net weight of spin   coater

~20kg
