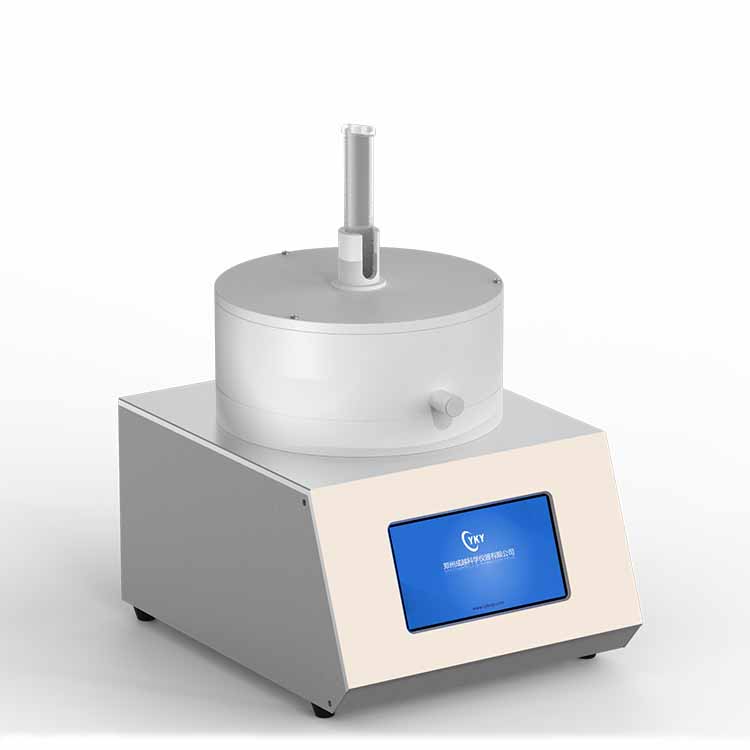

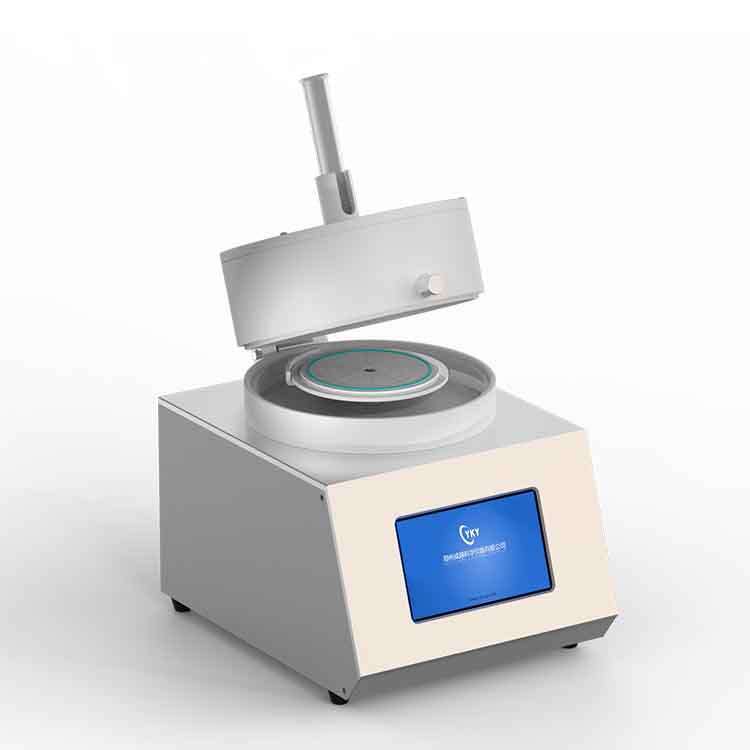

Anti-corrosion spin coater with heating cover adopts advanced precision motor, the maximum speed can reach 10,000rpm, which effectively guarantees the uniformity of film formation. In addition to the basic spin coating function, this product is also equipped with heating elements, which can be heated up to 200℃, temperature controlled by an intelligent temperature control meter, accurate temperature measurement, and completely controlled temperature rise process. In addition, the instrument adopts touch screen control and can preset the coating curve, which greatly simplifies the use process and reduces the learning cost. It is very suitable for laboratory purchase.
Anti-corrosion spin coater with heating cover application:
The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films. It is mainly used in photoresist spin coating, biological medium preparation, sol-gel method for polymer film production, etc.
Anti-corrosion spin coater with heating cover technical parameters:
| Item | Detail |
Spin coater | Supply voltage | AC220V, 50Hz |
Spin speed | 0~10000rpm |
Acceleration | 100~5000rpm/s |
Speed resolution | 1rpm |
Single step time | 3000s |
Substrate size | Diameter ≤ 8 inches (200mm) |
Chamber material | PTFE |
Heating temperature | ≤200°C |
Temperature control method | AIP intelligent temperature control |
Operation method | 7 inches HD LCD touch screen |
Dispensing method | Manual dispensing, optional precision syringe pump |
Coating curve | 5 segments per curve, a total of 5 curves can be stored |
Pumping port | Φ6mm quick screw interface |
Overall size | 290mm×365mm×300mm |
Total Weight | 15kg |

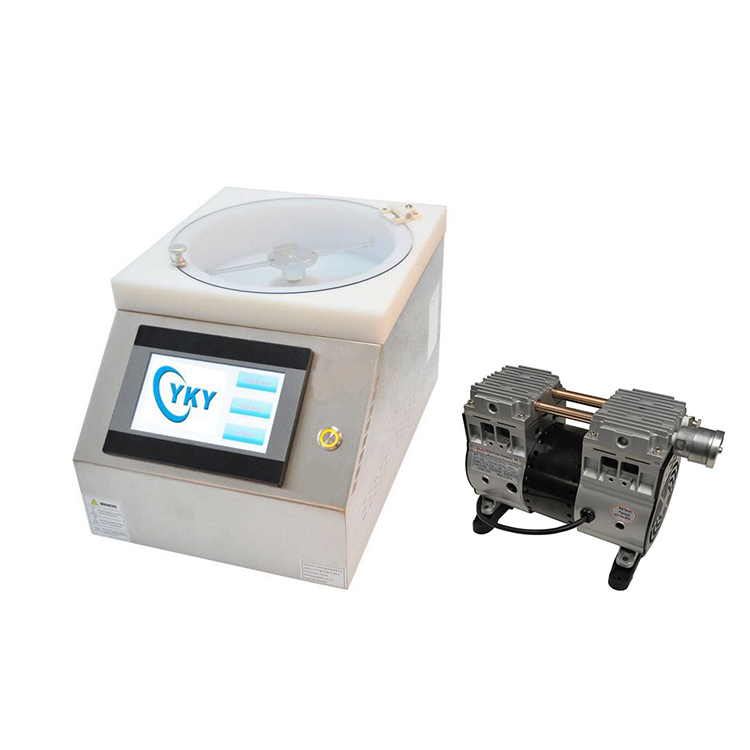

Exhaust system | Vacuum pump | Dry mechanical pump |
Pumping rate | 1.1L/s |
Power supply | AC220V 50/60Hz |
