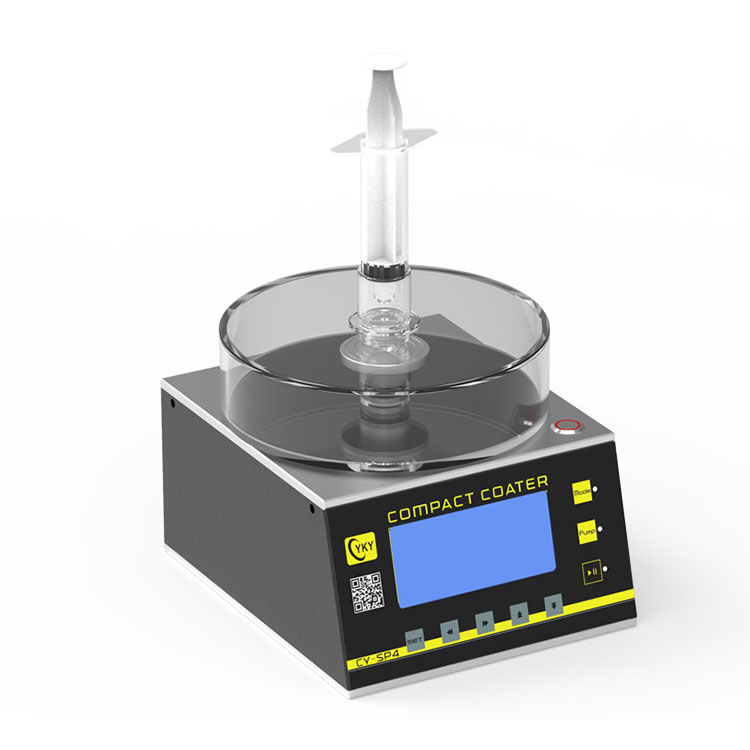

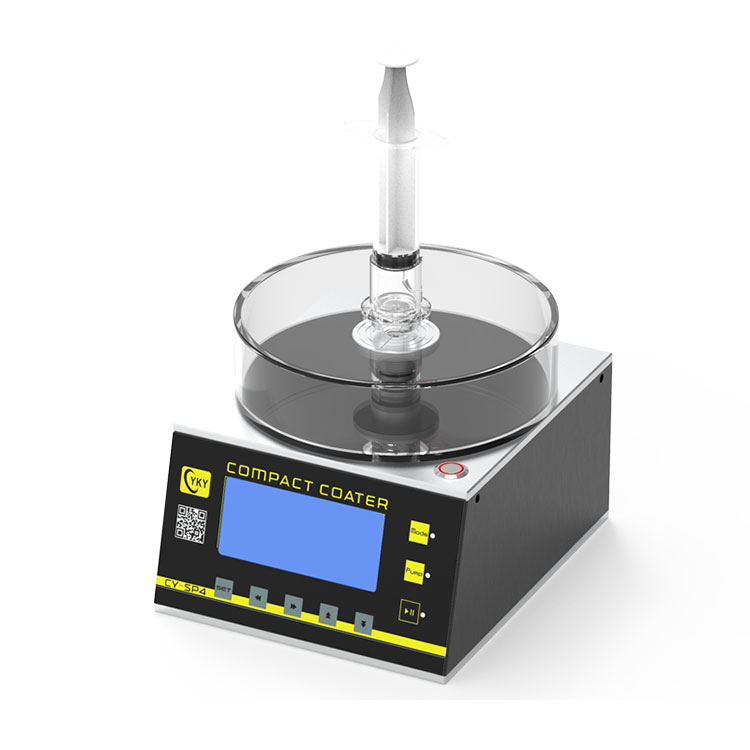

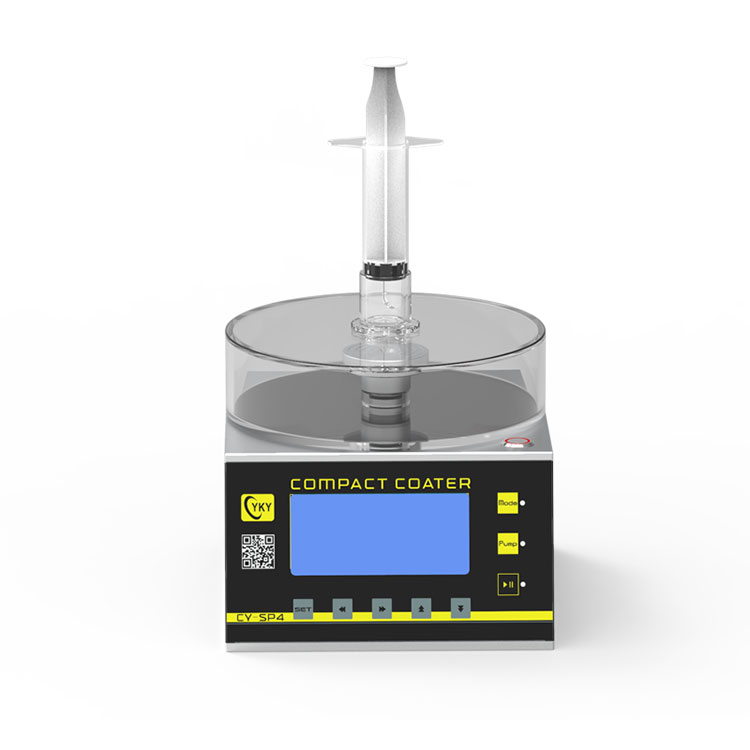

Small spin coater with center dispensing hole

    The spin coater adopts advanced precision motor, the maximum speed can reach 8,000rpm; the control relies on the button and the high-brightness LCD screen, in addition to direct spin coating, it can pre-store the spin coating curve for program-controlled spin coating.

This type of spin coater is designed small, and the whole body adopts aluminum alloy structure. The upper cover of the cavity is made of plexiglass, and the appearance is beautiful and firm. The spin coater adopts advanced precision motor, the maximum speed can reach 8,000rpm; the control relies on the button and the high-brightness LCD screen, in addition to direct spin coating, it can pre-store the spin coating curve for program-controlled spin coating. The instrument effectively guarantees the performance and function of the instrument under the premise of greatly reducing the volume, which is very suitable for laboratory purchase.

Small spin coater application:

The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films. It is mainly used in photoresist spin coating, biological medium preparation, sol-gel method for polymer film production, etc.

Technical parameters:


Item

Detail

Spin coater

Supply voltage

AC220V, 50Hz

Spin speed

0~8000rpm

Acceleration

100~5000rpm/s

Speed resolution

1rpm

Single step time

3000s

Substrate size

Diameter ≤ 4 inches (100mm)

Chamber material

quartz

Operation method

Button + LCD screen

Dispensing method

Manual dispensing, optional precision syringe pump

Coating curve

5 segments per curve, a total of 5 curves can be   stored

Pumping port

Φ8mm quick screw joint

Overall size

210mm×250mm×180mm

Total Weight

8kg

Exhaust system

Vacuum pump

Dry mechanical pump

Pumping rate

1.1L/s

Power supply

AC220V 50/60Hz

spin coater video:
