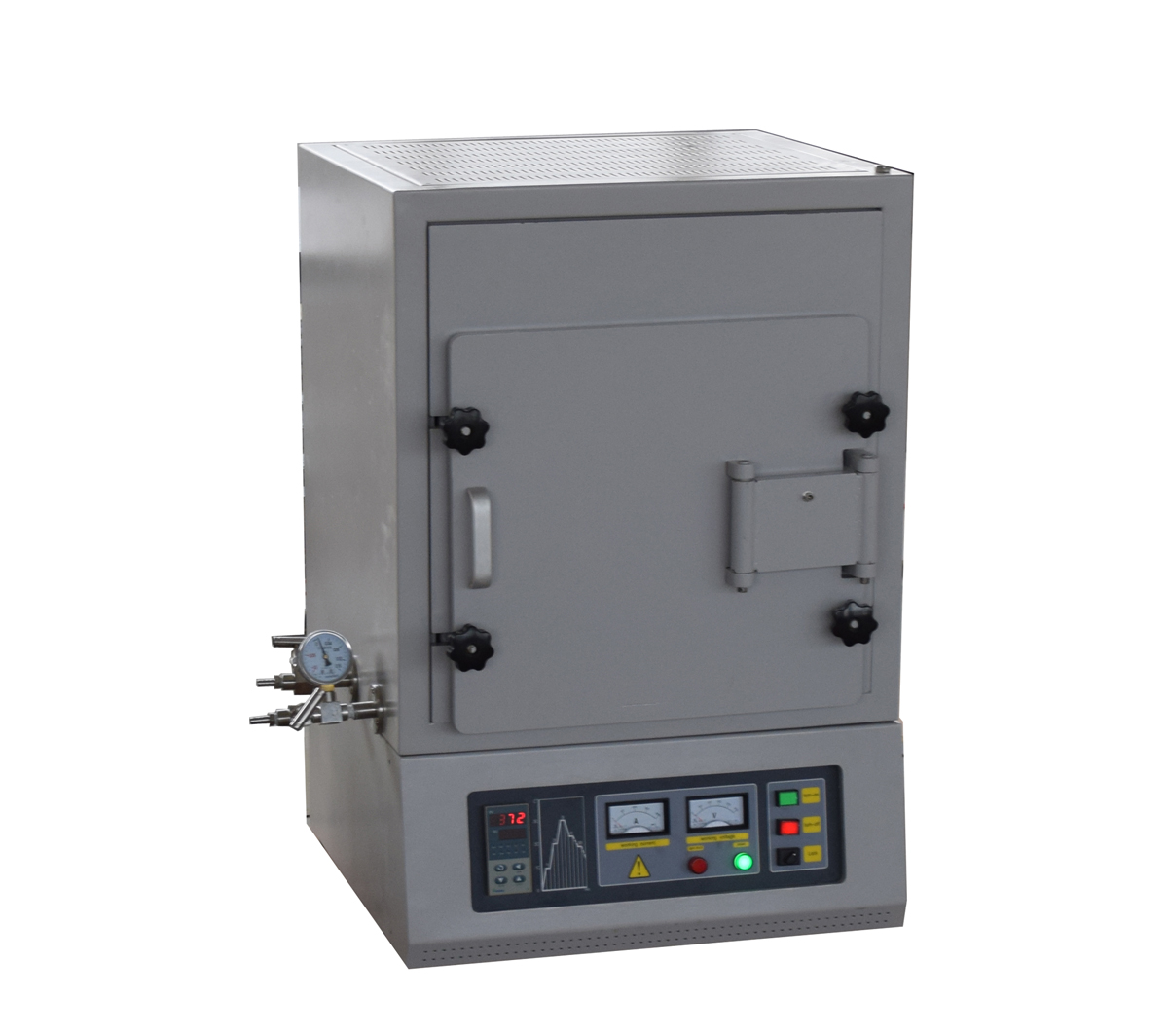

Compact 1600℃ atmosphere muffle furnace with water cooling system CY-A1600-3IC

    CY-A1600-3IC is a high temperature 1600℃ atmosphere controlled muffle furnace, which is designed for material synthesis under controlled inert gas atmosphere up to 1600 ºC with better temperature uniformity. The furnace consists of high-quality alumina fiber brick and high purity MoSi2 heating elements with 3L capacity, as well as vacuum sealed steel case with water cooling jacket. It is an ideal tool for preparing new materials which require a heat treatment under inert gas or oxidizing gas.


Features

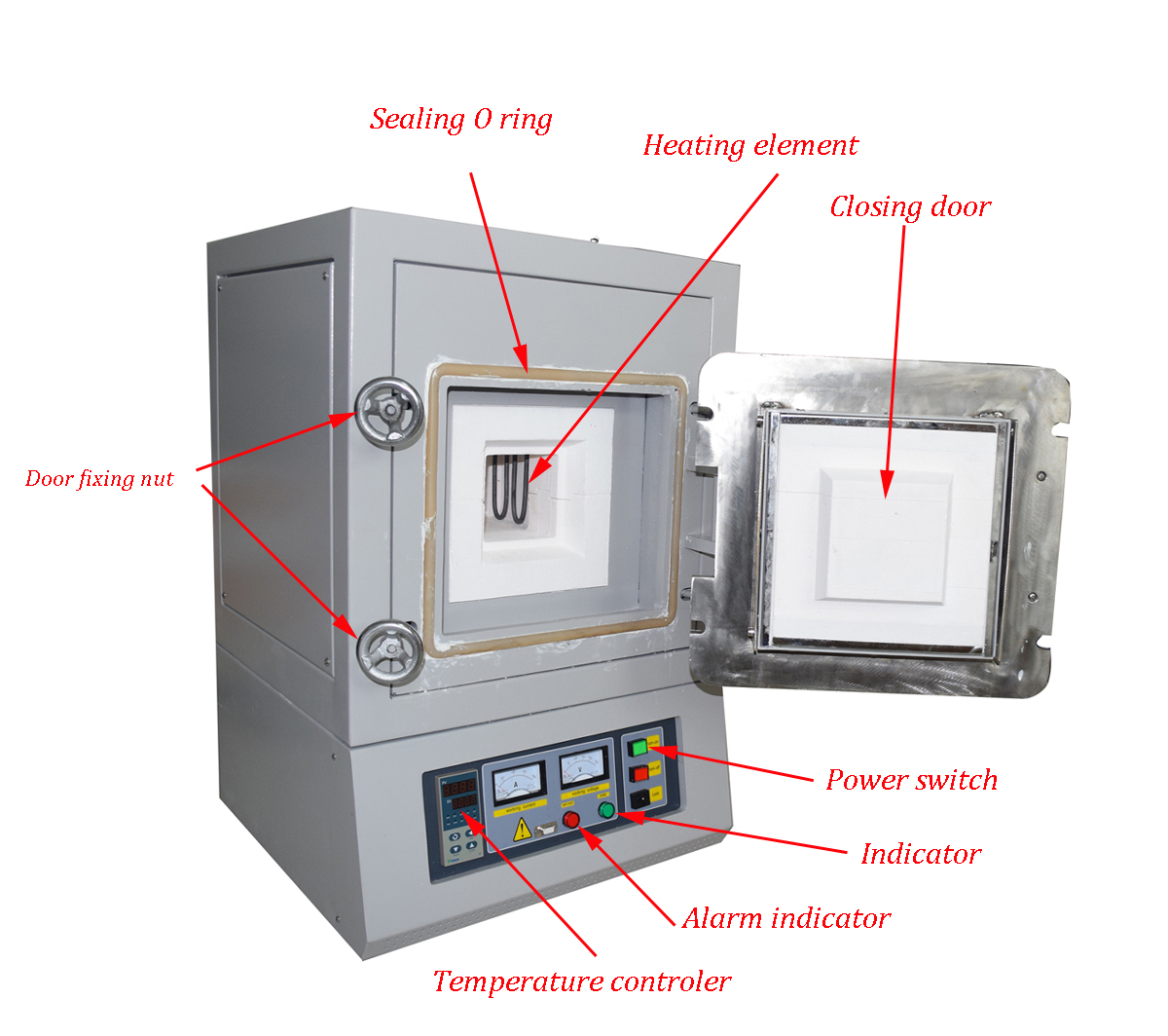

1.Swing door, easy to operate

2.High quality imported fiber, resistance high temperature

3.Programmable and PID automatic control

4.Heavy duty double layer structure with cooling fan. Lower temperature in outside case

5.Multi-function: Metal annealing, quenching atmosphere, surface cream, light treatment

6.Compact structure, can insert N2/Ar2 for special material sintering.


Model

CY-A1600-3IC

Controller

LED/LCD for optional

Chamber Dimension

150*150*150mm

Maximum Temperature

1650℃

Rated Temperature

1500℃

Heating Rate

0-20℃ (suggestion 10℃/min)

Temperature Control

30 programmable and PID automatic control

Temperature uniform

± 5℃

Heating Element

MoSi2

Thermocouple

B type

Furnace Shell Structure

Double furnace shell and is equipped with cooling fan

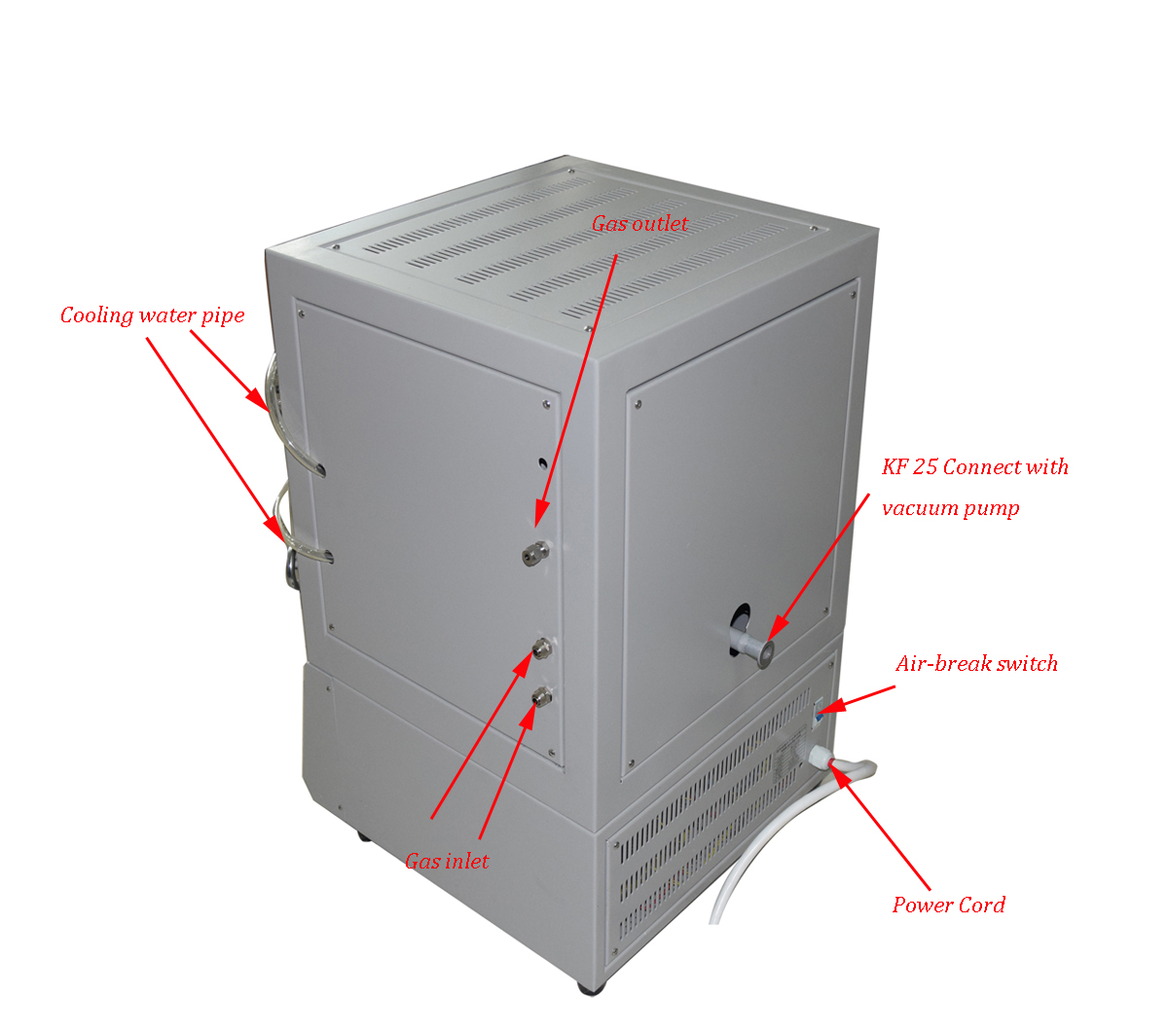

Water cooling capacity

50w/ ℃

Tank capacity

9L

Cooling water speed

15L/min

Atmosphere acceptable

nitrogen, argon and other inert gases

Voltage

AC 220 -380V,50/60Hz, as customized

Quality Guarantee

One year
