Atmosphere controlled muffle furnace with FFC gas mixer and water chiller-CY-A1600-8IC-2FW Atmosphere controlled muffle furnace with FFC gas mixer and water chiller-CY-A1600-8IC-2FW

Atmosphere controlled muffle furnace with FFC gas mixer and water chiller-CY-A1600-8IC-2FW

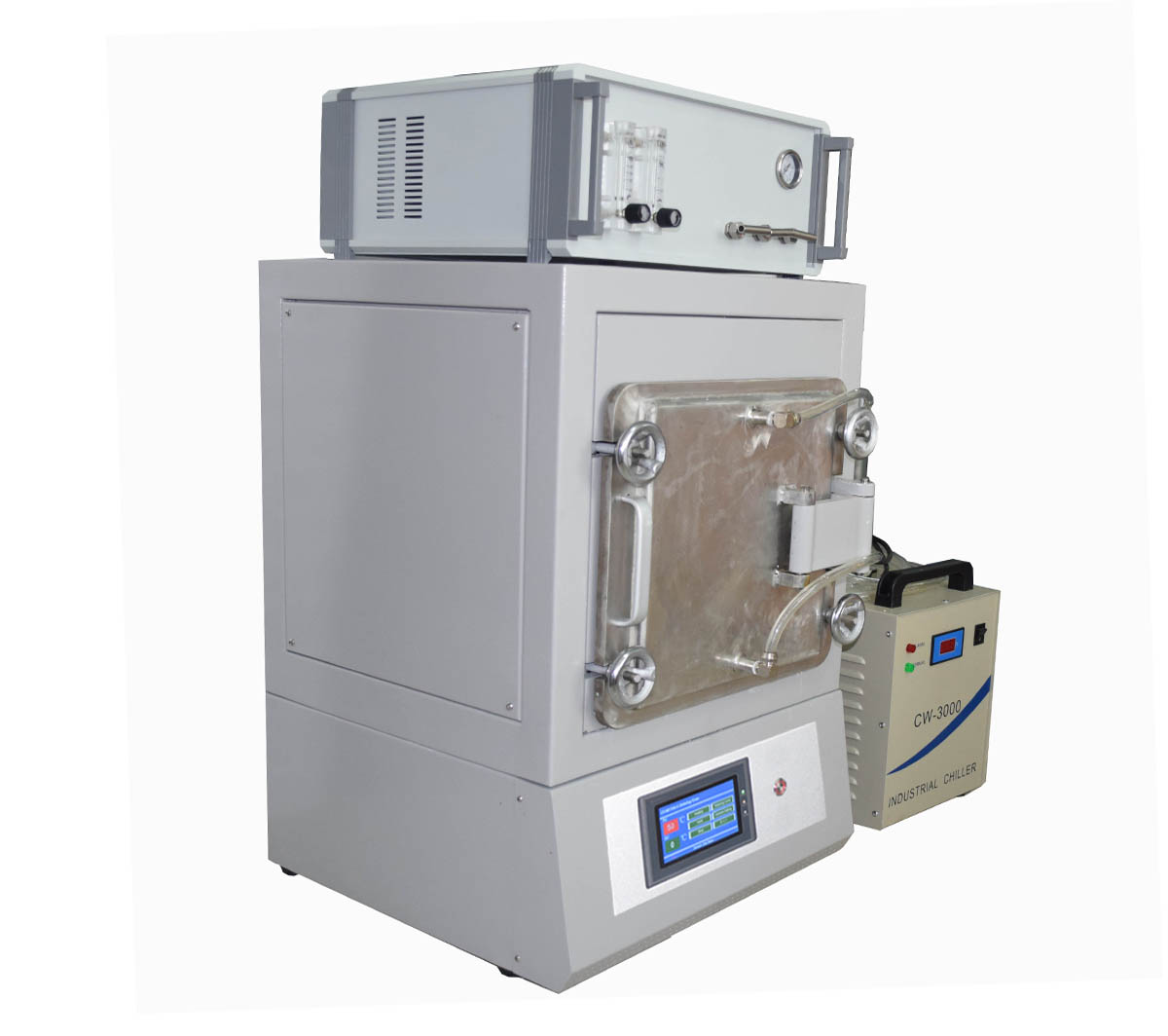

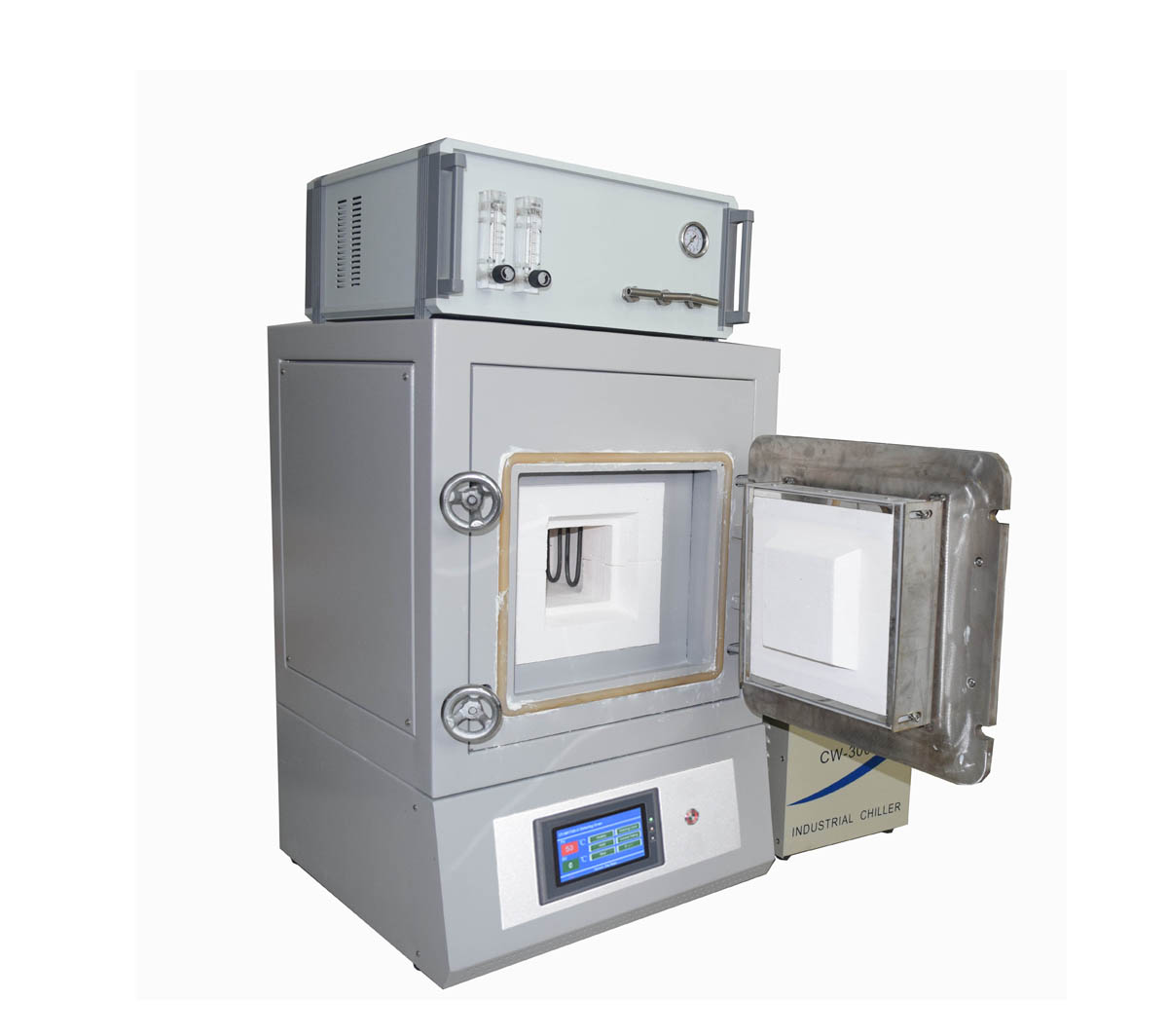

    CYKY serials 1600℃ atmosphere controlled muffle furnace is designed for material synthesis under controlled inert gas atmosphere up to 1600 ºC with better temperature uniformity.High-quality alumina fiber brick and high purity MoSi2 heating elements with 8L capacity, as well as vacuum sealed steel case with water cooling jacket and two gas float flow controller,allows various gas surround request. It is an ideal tool for preparing new materials which require a heat treatment under inert gas or oxidizing gas.

Model No.

CY-A1600-8IC-2FW

Controller

7" LCD touch panel

Chamber Dimension

200*200*200mm

Maximum Temperature

1650℃

Rated Temperature

1500℃

Heating Rate

0-20℃ (suggestion 10℃/min)

Temperature Control

30 programmable and PID automatic control

Temperature uniform

± 5℃

Heating Element

MoSi2

Thermocouple

B type

Furnace Shell Structure

Double furnace shell and is equipped with cooling fan

Water cooling capacity

50w/ ℃

Tank capacity

9L

Cooling water speed

15L/min

Atmosphere acceptable

nitrogen, argon and other inert gases

Gas mixer

2 gas way

16~160ml/min

25~250ml/min

Voltage

AC 220 -380V,50/60Hz, as customized

Quality Guarantee

One year
