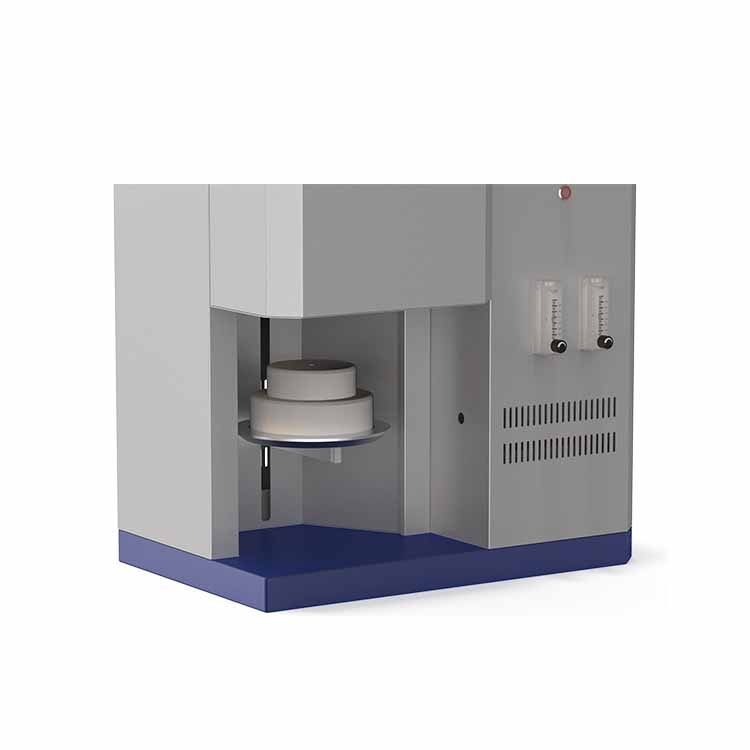

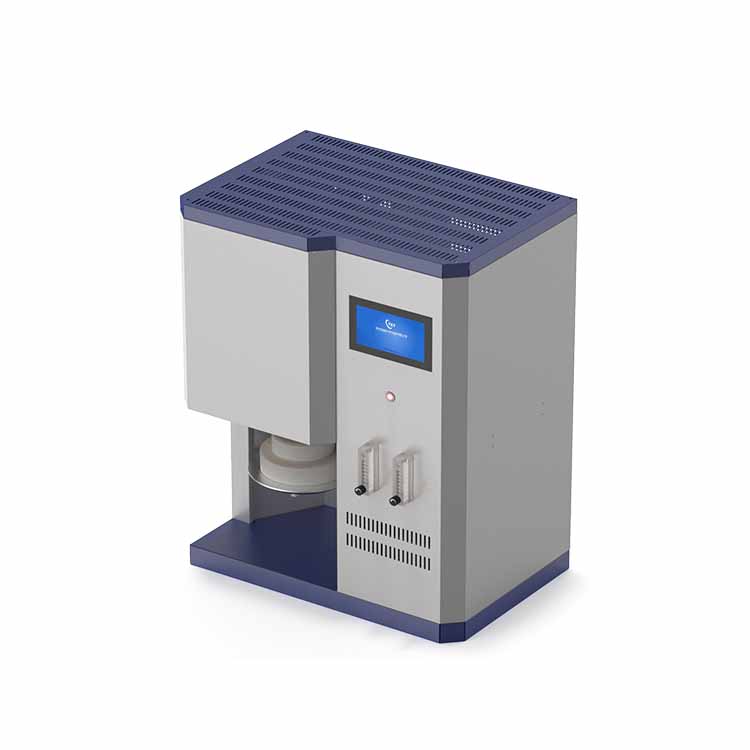

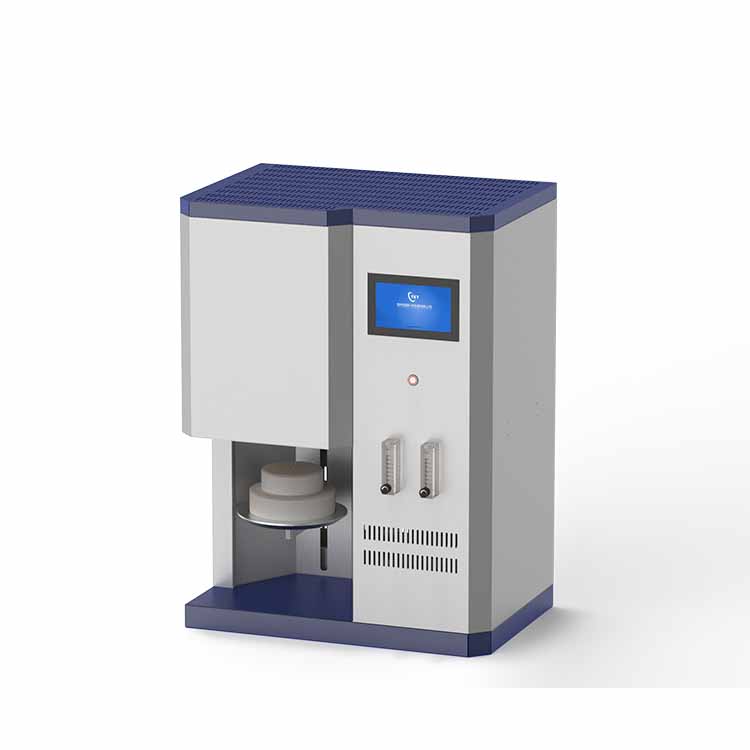

Multi-function sintering furnace adopts 1800℃ pure heating element and is heated on four sides. The furnace is equipped with a dedicated exhaust vent, which uses flue gas emissions to prevent crown pollution. The shape of the furnace is simple and the workmanship is fine. The double-layered liner structure is scientific and reasonable, energy-saving and environmentally friendly. It has been used by many denture processing factories at home and abroad and has received unanimous praise.
Scope of application: zirconia dental crown sintering and soft metal dental crown sintering.
Multi-function sintering furnace technical parameters:
Model | CY-B1700X |
Chamber structure | Lifting type, lift mechanism mute processing |
Chamber size | Φ120×120mm |
Chamber volume | 2.3L |
Chamber material | Imported alumina fiber |
Operating mode | HD full color LCD touch screen |
Working temperature | 0～1650℃ |
Heating rate | ≤10℃/min |
Heating zone | Single heating zone |
Temperature accuracy | ±1℃ |
Temperature control | PID automatic control |
Heating method | Four-sided heating |
Temperature measuring element | B-type thermal couple |
Gas | Pure air and inert gas, program automatically controls switching |
Gas interface | 1/4" ferrule connector (Ø8 pagoda-shape connector) |
Power supply | AC: 220V 50/60Hz |
