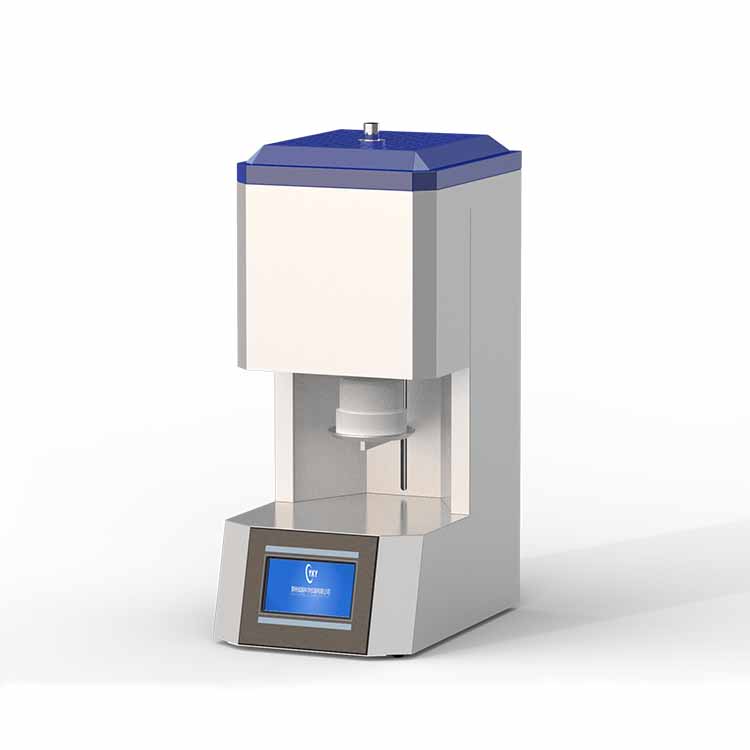

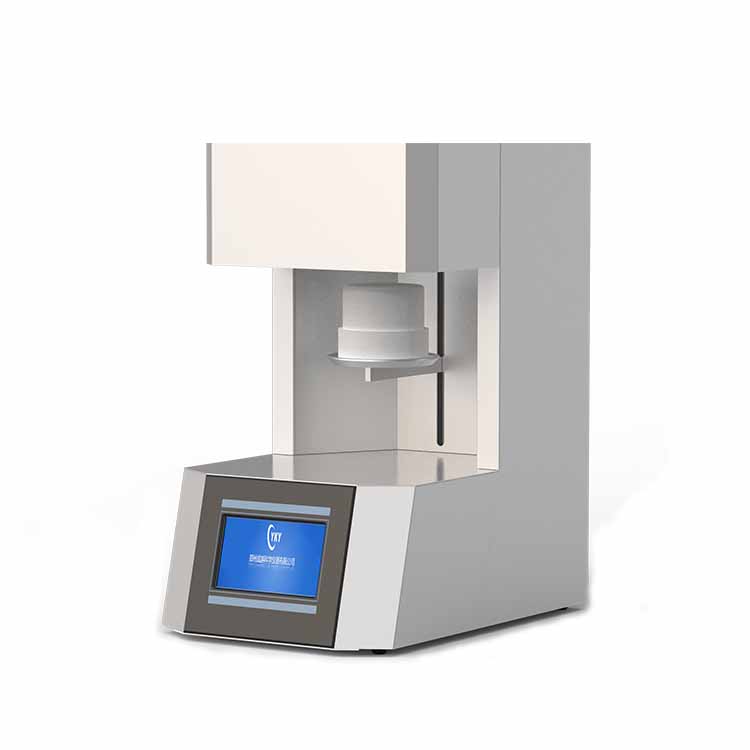

Zirconia sintering furnace

    This zirconia sintering furnace is mainly used for the sintering and crystallization of zirconia crowns in denture processing plants. All operations can be completed on the touch screen, which greatly improves your production efficiency.

The zirconia sintering furnace adopts the 1800℃ pure heating rod, which does not cause secondary pollution to the dental crown; the furnace adopts four-sided heating, which is more uniform than the traditional muffle furnace and crystallization furnace. The dental crown of the fired crown has better consistency. The double-layer liner structure is energy-saving and environmentally friendly. The intelligent temperature control can store dozens of heating curves, and the temperature control is precise and fast. The lifting furnace is convenient for loading raw materials and removing finished products.

Product application: sintering of zirconia dental crown

Zirconia sintering furnace technical parameters:

Model

CY-B1700-12IT

Chamber structure

Lifting type, lift mechanism mute processing

Chamber size

φ120x120mm

Chamber volume

1.4L

Chamber material

Imported alumina fiber

Operating mode

HD full color LCD touch screen

Working temperature

01650

Heating rate

≤30/min

Heating zone

Single heating zone

Temperature accuracy

±1

Temperature control

30 Steps programmable and PID automatic control

Heating method

Four-sided heating

Temperature measuring element

B-type thermal couple

Power supply

AC: 220V 50/60Hz
