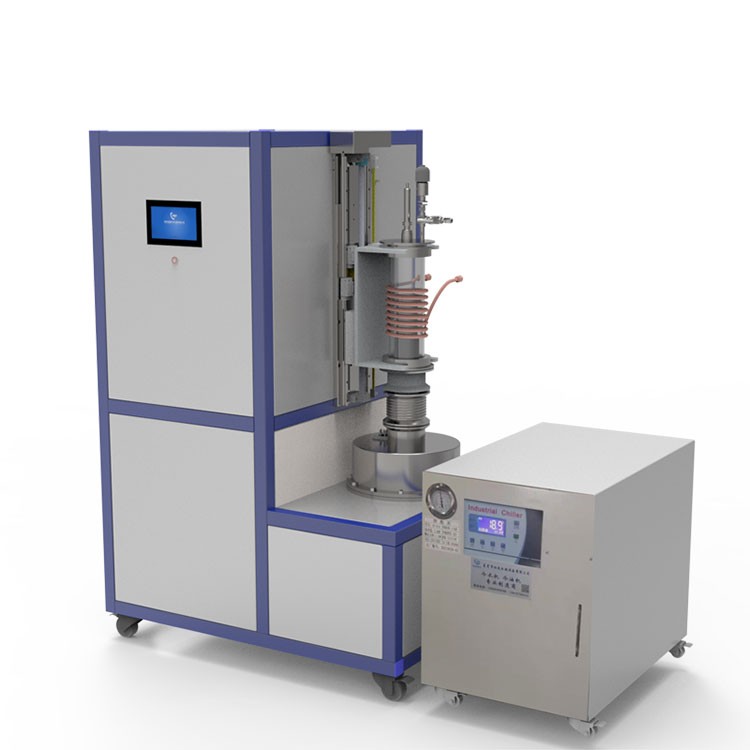

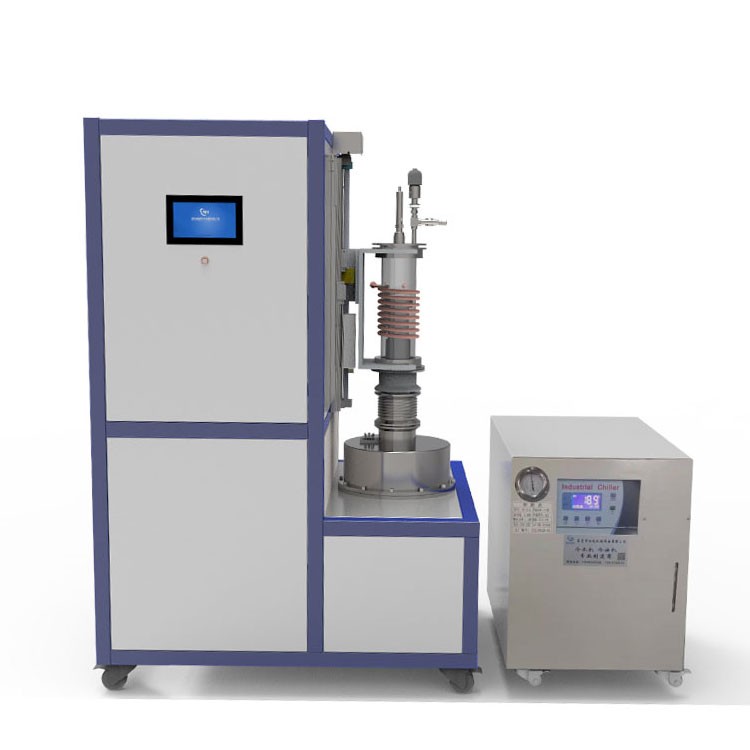

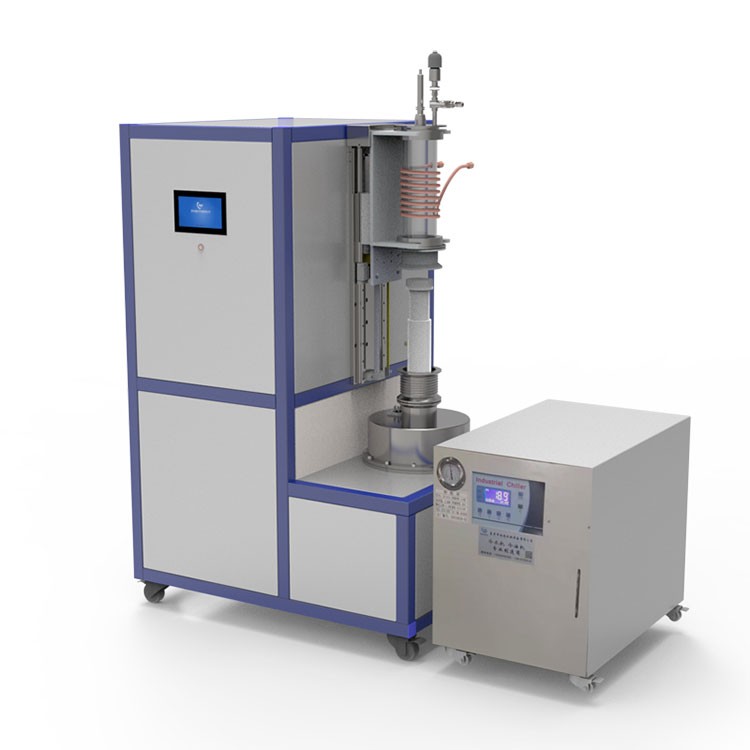

Induction Thermogravimetric Analysis Furnace 1200-1600C

Furnace   Structure

Using one   of tube furnace and modifying into vertical

Temperature   range is optional from 1200 ℃ to 1700 ℃

Max.   Temperature

1200 ℃ - 1600 ℃ selectable

Tube Size   and Materials

• 1" OD - 2" OD selectable. Click the picture below to see        tube specifications

• For < 1200°C Max.  please choose quartz tube

• For < 1500°C, please choose Mullite tube

• For < 1700°C, please choose Alumina tube

Force Sensor

• High precision force sensor with 0.05% accuracy.

• Sample amount: 1 g minimum; 100 g maximum.

Force   Sensor output data will connect to PLC or PC to show weight change curve   with temperature

Crucibles

• One 25Dx25H (mm) alumina crucible is included.  Please click        Pic. 1 to order more

• You may click Pic. 2 to choose ZrO2, BN, or Y2O3 crucible based on        your application

• The customized crucible is available upon request

Temperature   Controllers

• Programmable temperature controller （ Europe there for precise control of heating rate, cooling rate and        dwell time.

• Built-in PID Auto-Tune function with overheating & broken        thermocouple broken protection.

• Over-temperature protection and alarm allow for operation without        attendant(s).

• +/- 0.1 ºC temperature accuracy.

• One K-type thermocouple.

• RS485 Communications Port.



PC control   software and interface module are included

Vacuum

• A KF25 vacuum port is built-in to connect a vacuum pump

• Achievable vacuum level depends on the selected vacuum pump

• Click the Picture below to order a vacuum pump separately

Gas Delivery   （optional）

• 1/4" gas inlet and out are built-in with an optional mass flow        controller. The recommended gas flow rate is <200 sccm.



You may connect   the TGA furnace with MTI multi-channel gas delivery system for mixing gas   operation, or oxygen or a gas analyzer to the gas outlet port
