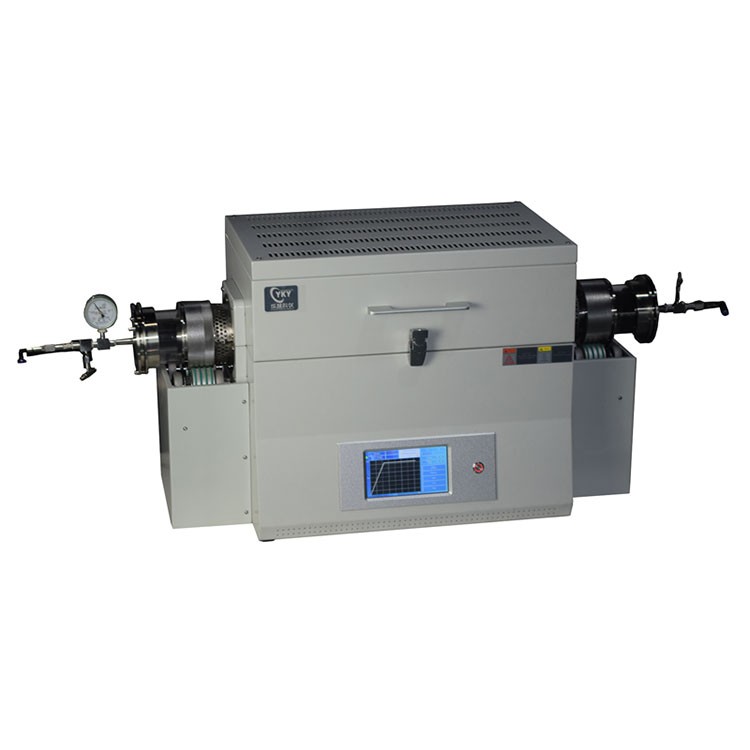

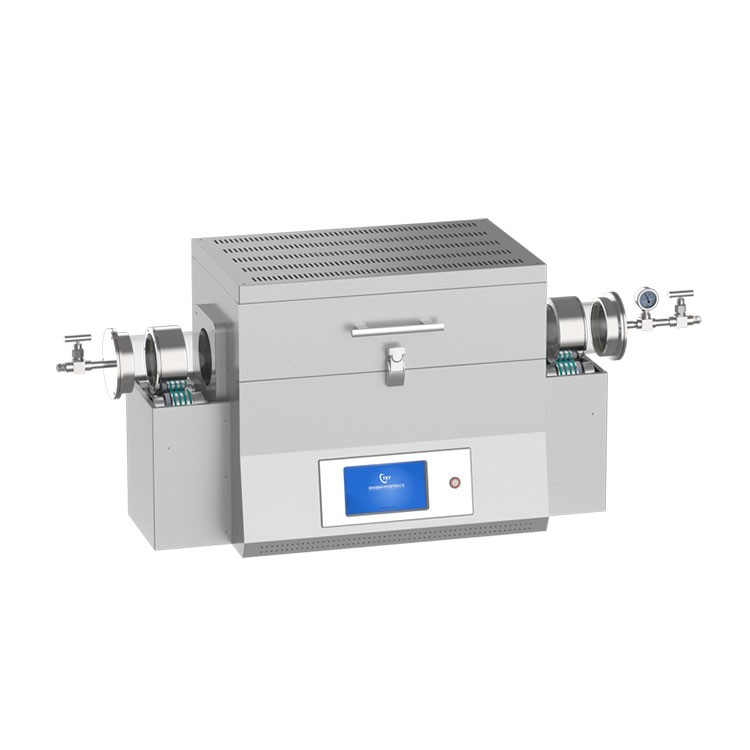

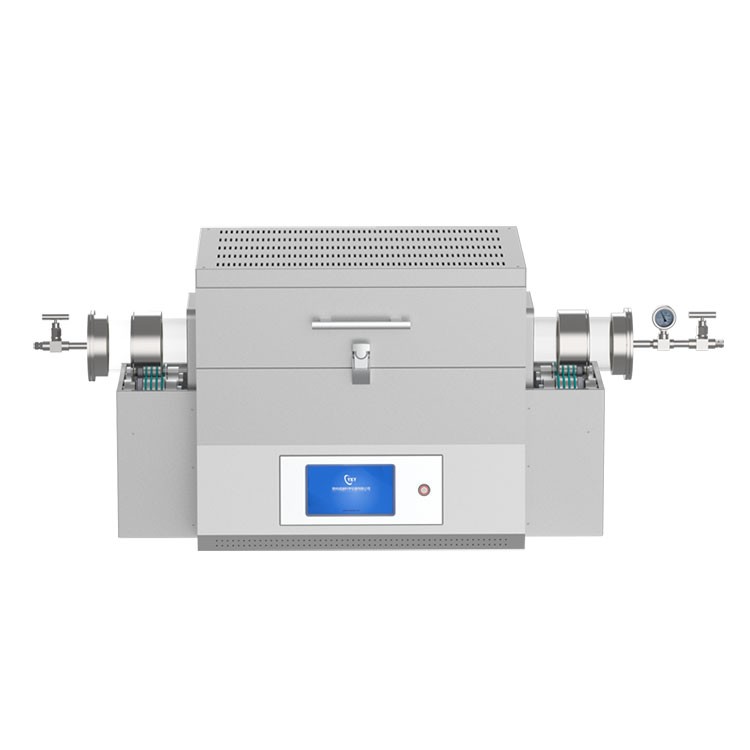

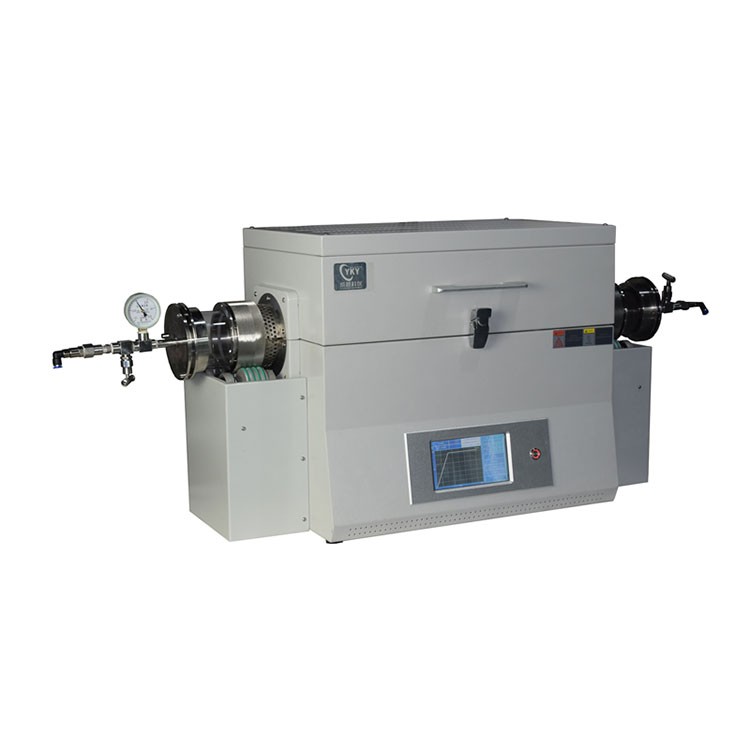

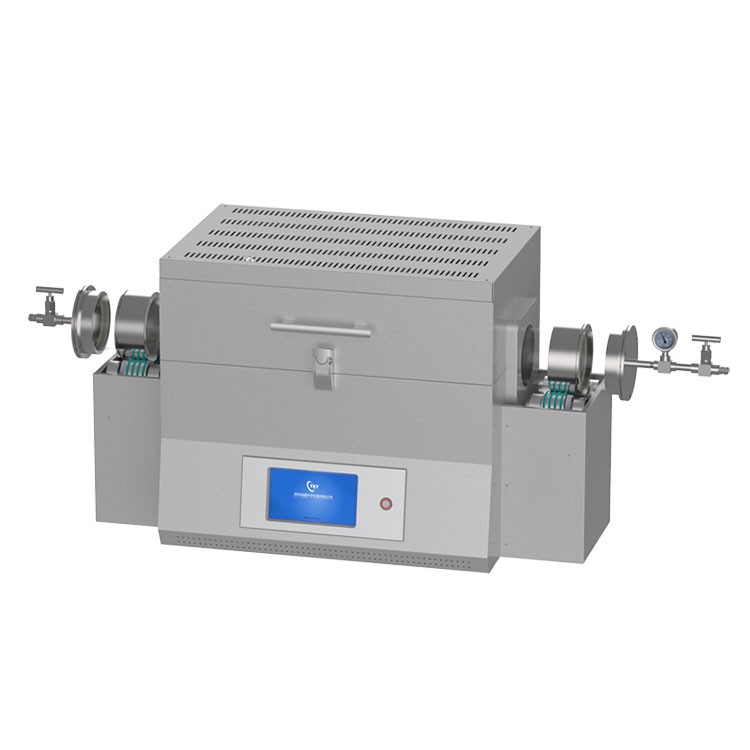

Small rotary tube furnace

Small rotary tube furnace is a single temperature zone rotating tube furnace, which can be used to wrap and modify powder materials by CVD method in an atmosphere protected environment

Inquire Now Next Product

Small rotary tube furnace is a single temperature zone rotating tube furnace, which can be used to wrap and modify powder materials by CVD method in an atmosphere protected environment. The equipment adopts friction drive, no additional fixation, and convenient disassembly of furnace tube, easy to take samples.

The rotary tube furnace is widely used for sintering inorganic compounds, the working tube can rotate 360° continuously through mechanical transmission, so that the material in the tube can be stirred and mixed to obtain uniform heating effect.

Small rotary tube furnace Technical parameters:

Project	Particulars
Service voltage	AC220V，50Hz
Maximum power	4.5KW
Heating zones	Single zone 440mm
Operating temperature	The highest 1200℃，continuous operating temperature ≤1100℃
Temperature control accuracy	±1℃
The temperature control mode	AI-PID 30 section process curve, can store multiple. Three temperature zone independent control, with overheating and broken couple protection
Furnace tube material	High purity quartz
Furnace tube size	φ100mm X 1000mm
Sealing mode	Vacuum stainless steel flange
Adjustable rotate speed	10-20rpm
