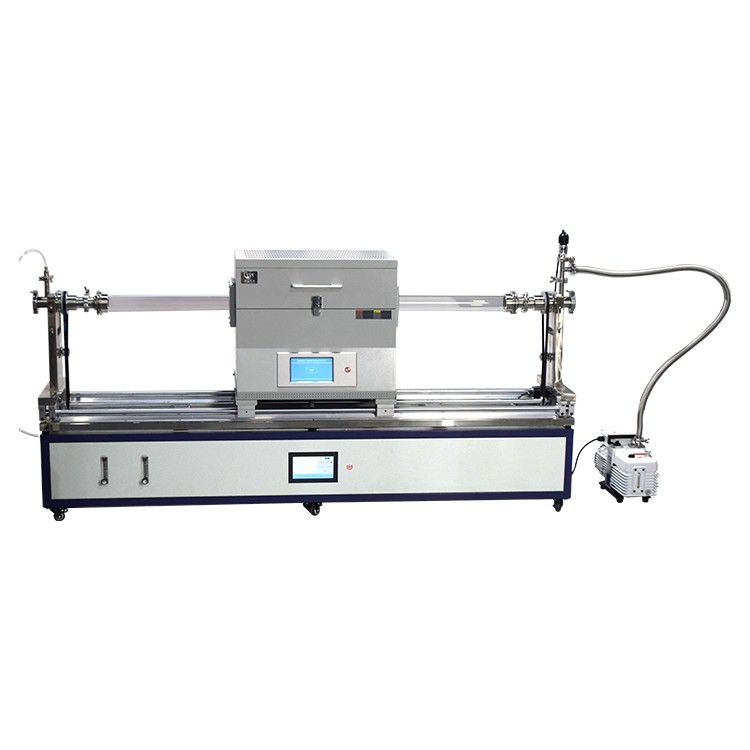

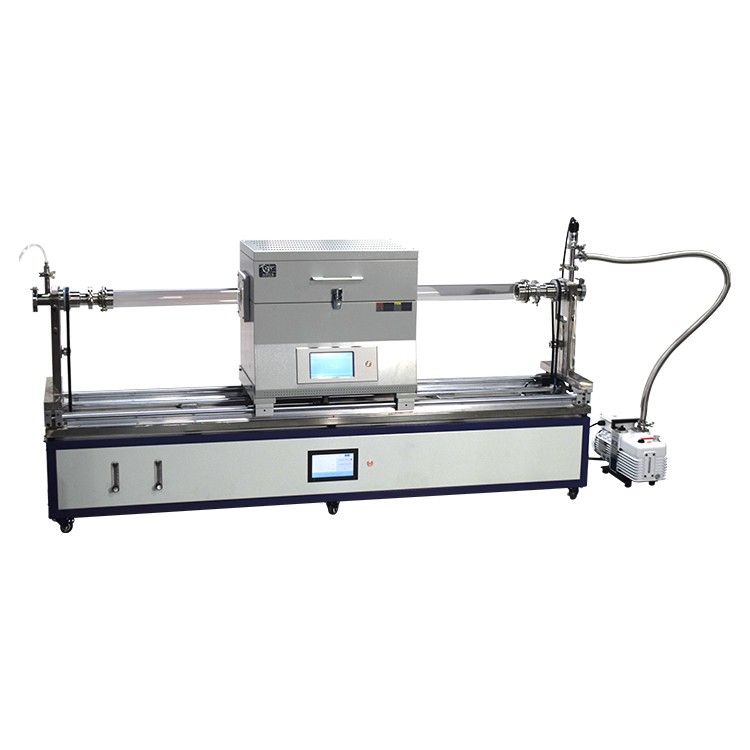

This is a double temperature zone slide tube furnace. There is a mixing partition board in the middle of the furnace tube, which can mix the powder and particles repeatedly with the rotation of the furnace tube. Through the mechanical drive, the working pipe can rotate 360°continuously, so that the materials in the tube can be mixed and heated evenly.

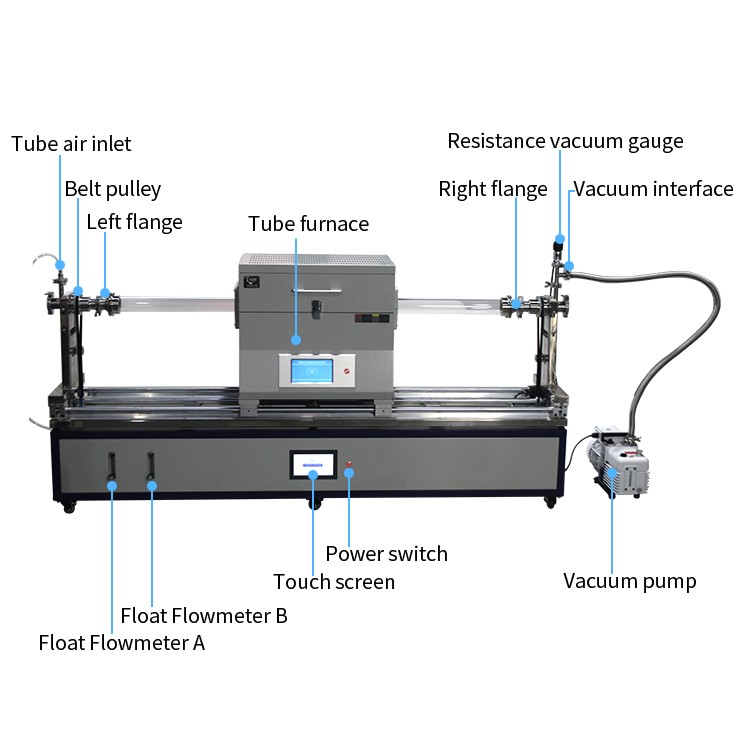

This product is a double temperature zone slide tube furnace. There is a mixing partition board in the middle of the furnace tube, which can mix the powder and particles repeatedly with the rotation of the furnace tube. Through the mechanical drive, the working pipe can rotate 360°continuously, so that the materials in the tube can be mixed and heated evenly. The furnace body can slide back and forth on the support to realize rapid temperature rise and fall.
Two way float flowmeter can be used to inject two kinds of gas into the pipeline; high performance mechanical pump can quickly pump furnace tube to vacuum; through the cooperation of pump and flowmeter, a variety of CVD processes can be realized.The rotating device is very suitable for continuously coating and modifying powder materials by CVD method in an atmosphere protected environment.
Technical parameters of rotary tube furnace:
Dual zones tube furnace
Model
CY-O1200-60IIT-R
Power
3KW
Tube material
High purity quartz
Tube diameter
60mm
Tube length
1600mm
Chamber length
440mm
Heating zone length
200mm+200mm
Working temperature
0~1150℃
Limit temperature
1200℃
Control accuracy
±1℃
Temperature control mode
30 or 50 segment program temperature control
Display mode
High definition full color LCD touch screen
Sealing mode
304 stainless steel vacuum flange
Power supply
AC:110V 50/60Hz 2.5kW
Slide rail
2030mm, sliding range 1500mm
Rotation speed
0~20rpm
Flowmeter
Model
CY-2F
Number of gas paths
2 channels
Type
float flowmeter
Range
A channel: 0~160mL/min; B channel: 0~100mL/min
Accuracy
4%
Pipeline pressure
Stainless steel pipe with pressure of 3Mpa
Flowmeter pressure
1 standard atmospheric pressure
Pipeline interface
φ8mm quick screw connector
Vacuum system
Vacuum pump
Two stage rotary vane pump
Pumping speed
1.1L/s
Suction connection
KF16
Pump limit vacuum
10E-1Pa
power supply
AC110V 50/60Hz
Desktop dual zones sliding rotary tube furnace video:
