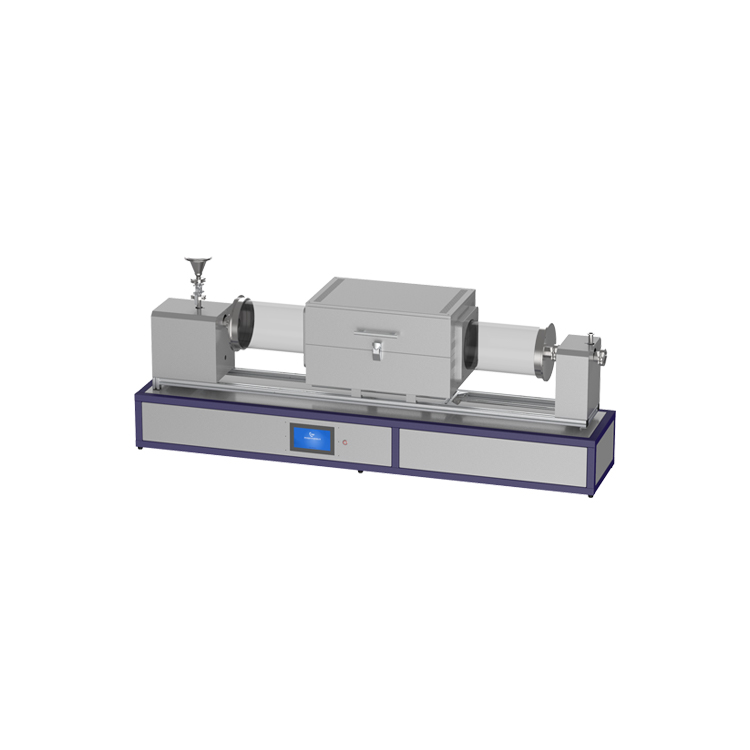

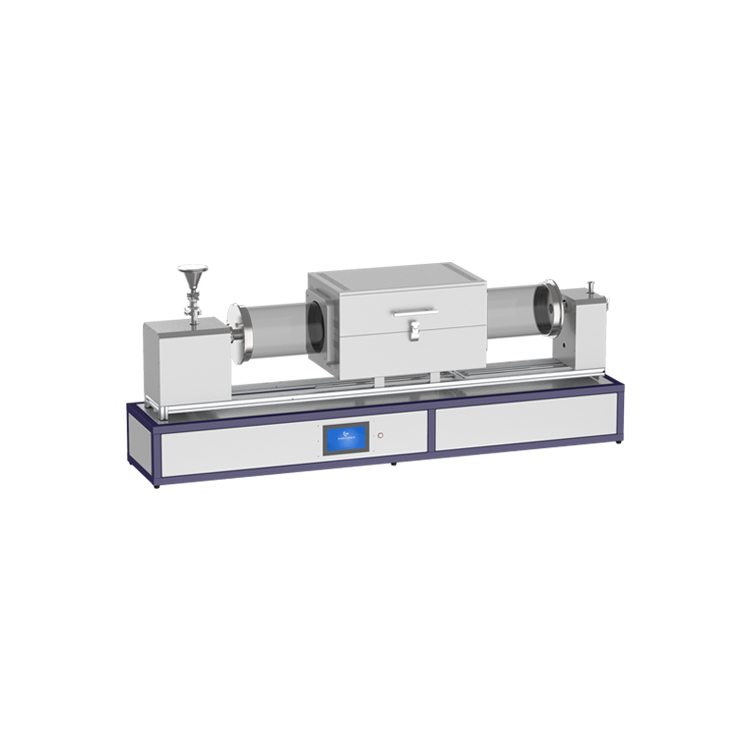

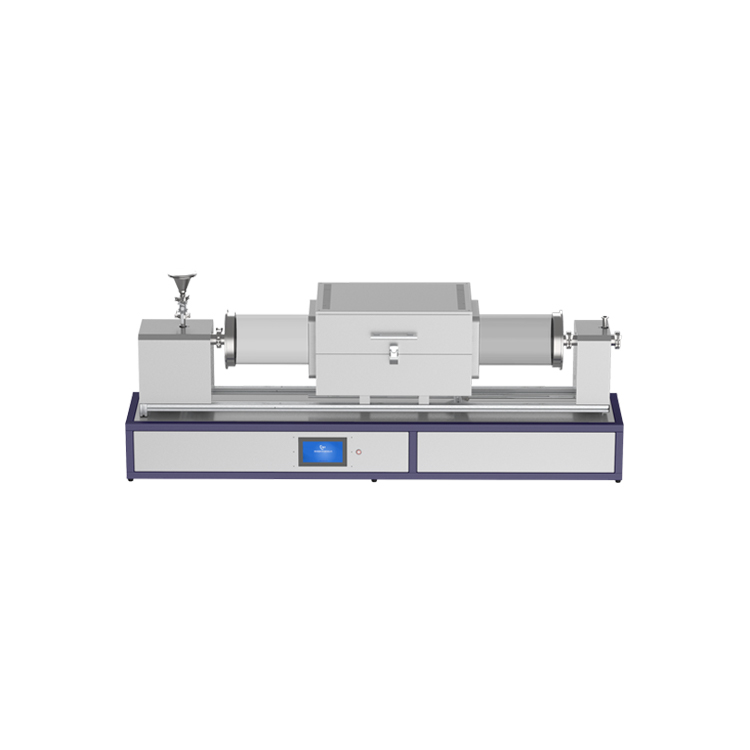

This equipment is a rotary furnace, equipped with a large-size furnace tube with a diameter of 200mm, and is equipped with a feeding mechanism and a rotating mechanism to ensure continuous and uniform reaction.
The laboratory rotary furnace is widely used in lithium battery materials (including lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide, lithium nickel cobalt oxide, cobalt oxide, cobalt powder, nickel powder and other positive and negative electrode materials), rare earth Materials (rare earth oxides, luminescent powder, polishing powder), magnetic materials, kaolin mineral materials, glaze pigments, ceramic equipment, active refractory materials, catalyst materials (vanadium, vanadium tetroxide, vanadium iron, etc.) carbonization, metal powder calcination, etc.
It is suitable for experiments or small batch production in experimental testing institutions, universities and colleges, scientific research institutes, industrial and mining enterprises.
Technical parameters:
Item | Detail |
Model | CY-SH40 |
Power supply | AC380V 50Hz 45kW |
Productivity | 0-40kg/h |
Max. working temperature | 500℃ |
Furnace tube size | φ200mm x 600mm |
Tilt angle | 0~10° continuously adjustable |
Rotation speed | 0~3.3rpm |
Dimensions | 1800mm x 870mm x 1750mm |
Temperature control accuracy | ±1℃ |
Temperature control method | AI-PID 30-segment process curve, with overheat and thermocouple failure protection |
Furnace tube material | High purity quartz |
