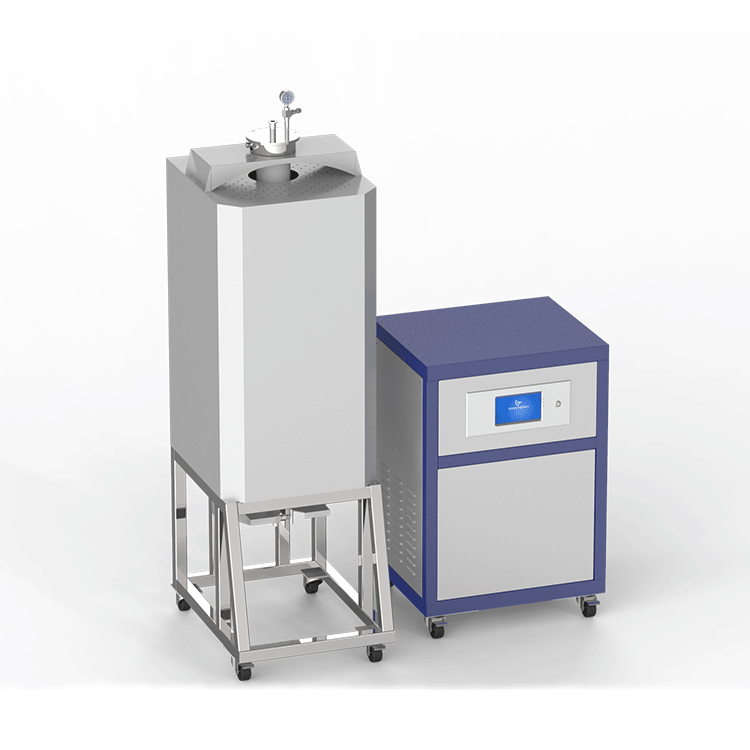

The CY-T1700-100I-TV is a fluidized bed vertical CVD system specially designed for powder experiments. The tube is a high-purity corundum tube with a microporous ceramic plate embedded inside the furnace tube. The powder can be placed on the microporous ceramic plate, gas is introduced from the lower end of the furnace tube, and the sample powder was suspended in the heating zone through a microporous ceramic plate to carry out an experiment. The instrument adopts advanced PID intelligent temperature control, and the temperature control accuracy is ±1℃. The control interface is a 7-inch high-definition true color LCD touch screen, graphic display, visual operation interface, easy to operate and intuitive to use, can greatly improve your experimental efficiency.
The application field is powder experiment.
Vertical fluidized bed tube furnace technical parameters:
Model | CY-T1700-100I-T-V |
Furnace tube material | High purity alumina |
Furnace tube diameter | 100mm |
Furnace tube length | 1200mm |
Furnace chamber length | 900mm |
Heating zone length | 600mm |
Constant temperature zone | 300mm |
Operating temperature | ≤1700℃ |
Temperature control accuracy | ±1℃ |
Temperature control mode | 30 or 50 segment program temperature control |
Display mode | LCD touch screen |
Sealing method | 304 stainless steel vacuum flange |
Flange interface | 1/4" ferrule connector (Ø8 pagoda-shape connector); KF16 vacuum port |
Vacuum | 4.4E-3Pa |
Power supply | AC:220V 50/60Hz |
Rated power | 10KW |
