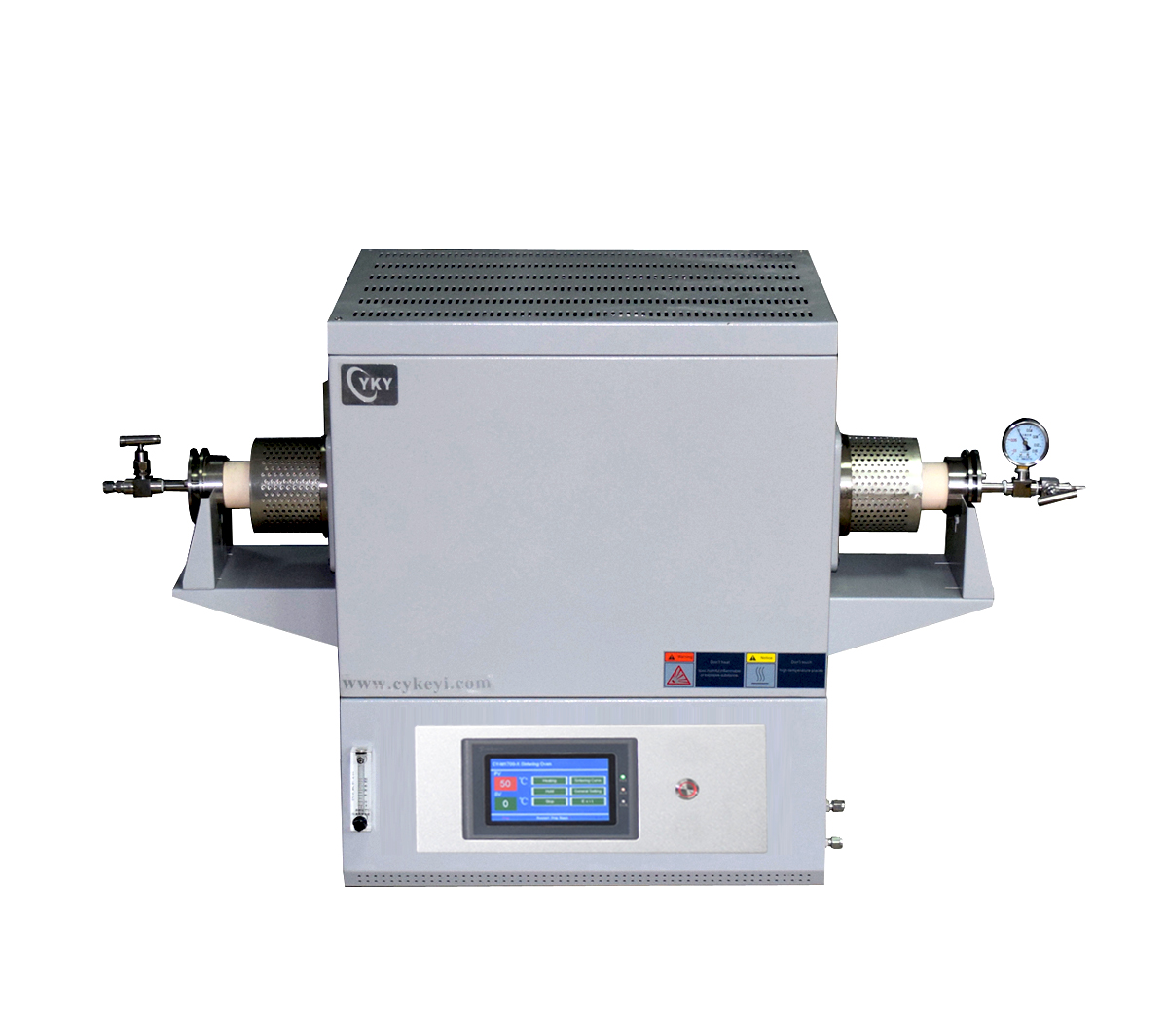

Laboratory 1700℃ Compact Corundum Tube Furnace with 170mm heating zone CY-T1700-50ITS Laboratory 1700℃ Compact Corundum Tube Furnace with 170mm heating zone CY-T1700-50ITS

Laboratory 1700℃ Compact Corundum Tube Furnace with 170mm heating zone CY-T1700-50ITS

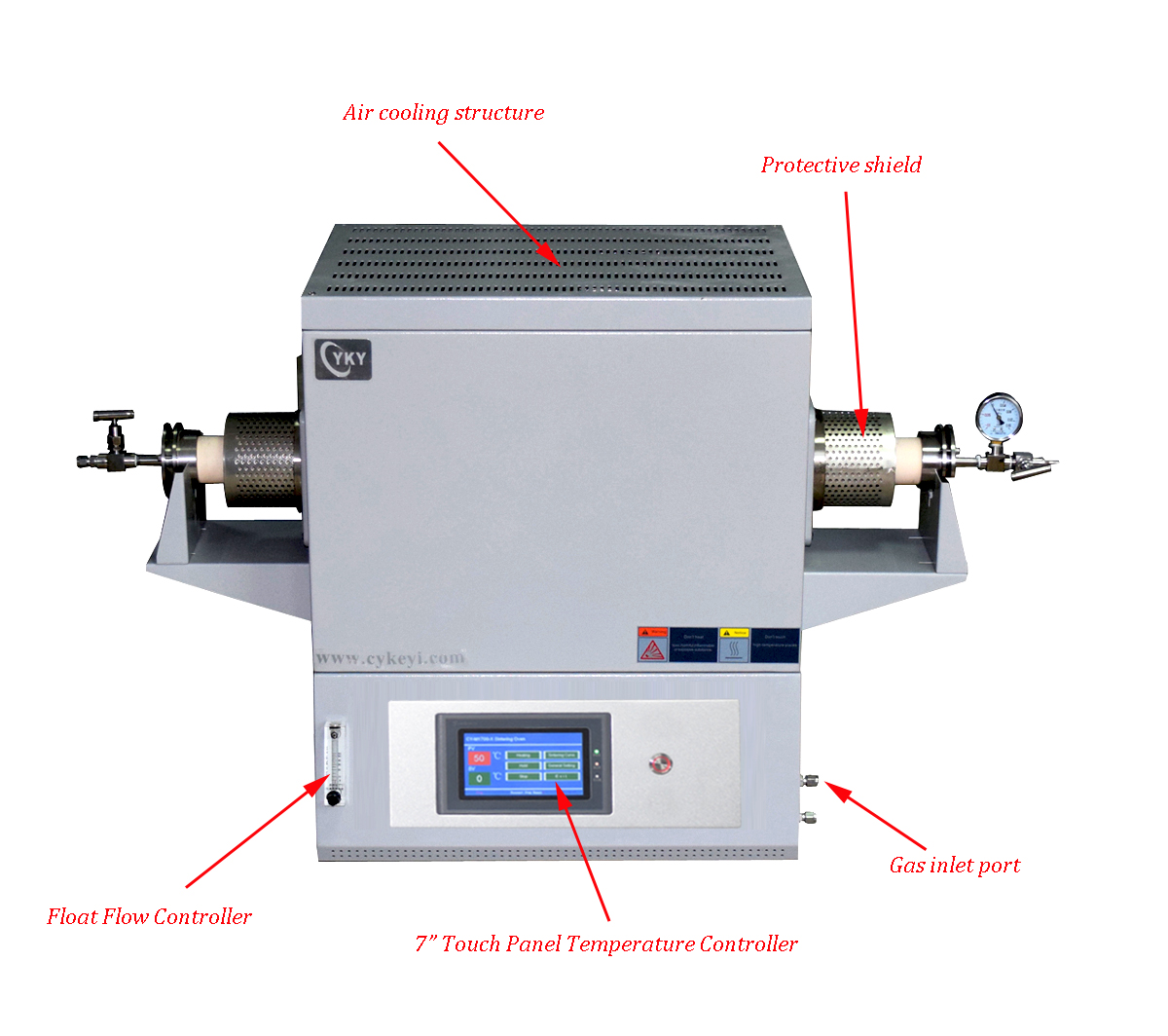

    CY-T1700-50ITS is a compact 1700℃ high temperature corundum tube furnace with High Purity MoSi2 heating Rods.The temperature of the furnace is controlled by a 30 segment programmable high precision SCR (Silicon Controlled Rectifier) digital controller with7” touch panel. It is widely used in material & chemical labs to sinter all types of new material samples under vacuum or other gas conditions up to 1700℃

Model No.

CY-T1700-50ITS

Display

7” LCD Touch Panel

Limiting temperature

1650℃

Working temperature

≤1600℃

Heating rate

0-20℃/min

Heating Zone length

170mm, constant temperature zone:80mm

Corundum tube diameter

OD50*1000mm, 60/80/100/120mm for option

Temperature accuracy

± 1℃

Heating element

High Purity MoSi2 Rod

Thermal couple

B TYPE

Cooling method

Double layer structure with fan cooling

Temperature control

30 steps programmable PID control

Chamber material

Alumina fiber

Over-temperature alarm

Yes

Over-current alarm

Yes

Sealing flange

S.S vacuum flange

Cooling method

air forced cooling

Gas mixer

One way with Float Flow Controller

Main Power

2.5Kw

Working voltage

AC220V,50Hz
