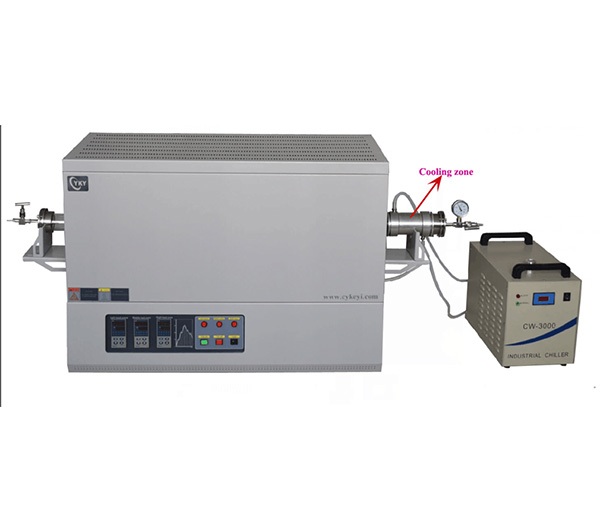

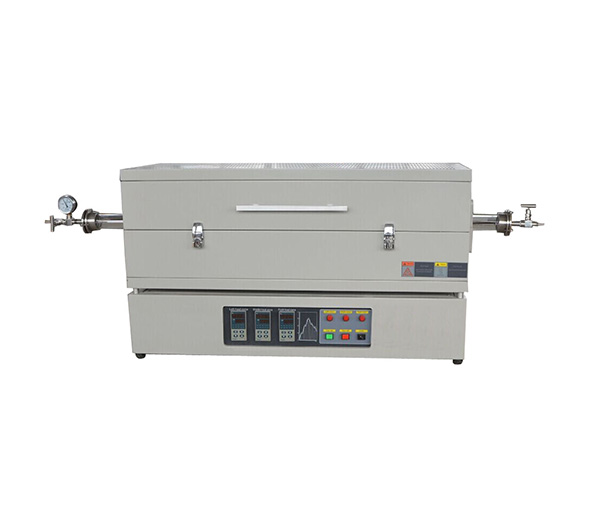

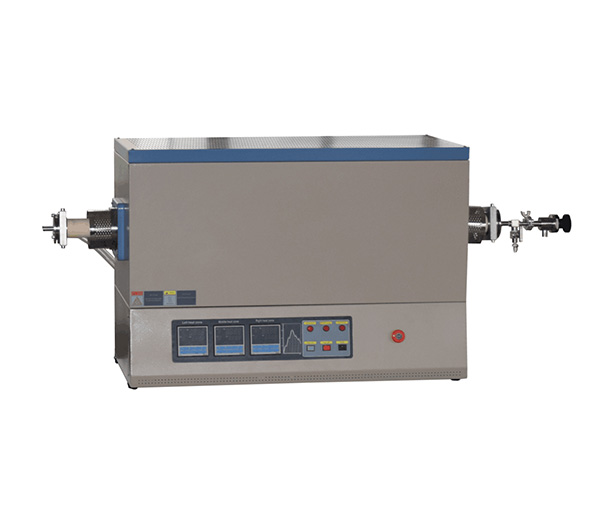

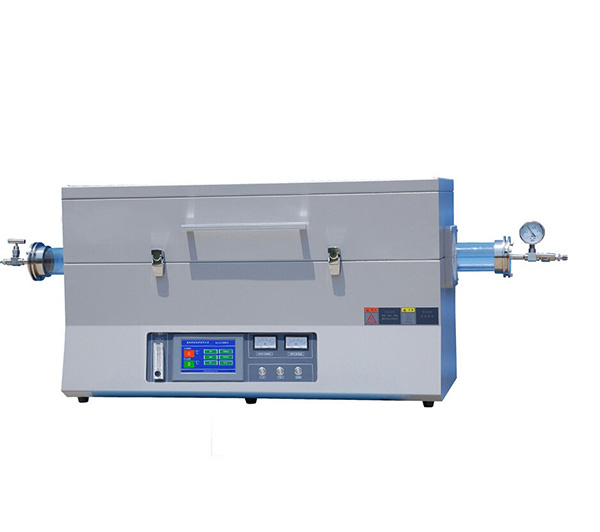

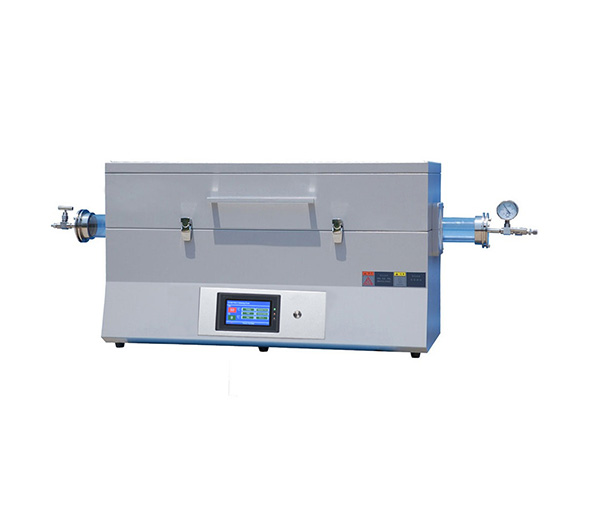

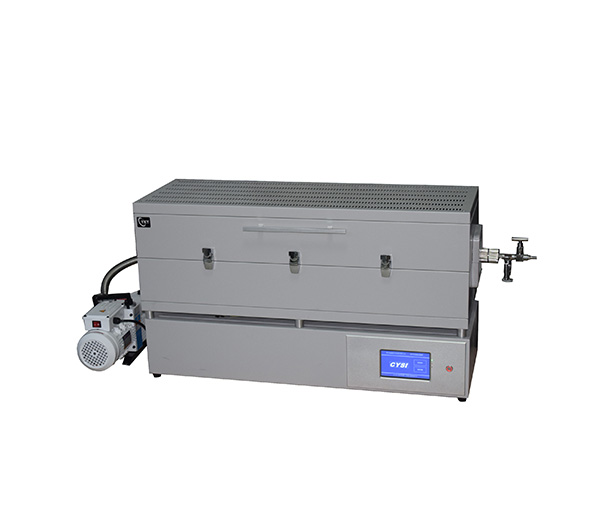

CY-O1200-80IIIC Tube Furnace

    CY-O1200-80IIIC tube furnace adopt with double layer steel structure with a max. working temperature of 1200℃ and built-in precision temperature controller can provide up to 30 segments of heating and cooling steps with +/- 1 °C accuracy.Double heating zone with separately temperature controller allows user monitor each heating zone separately.



It is widely used in

1.CVD experiment

2.Preparation of carbon nanotubes

3.Growth of graphene

4.Crystalline silicon substrate coating

5.Diffusion welding for metal materials

6.Heat treatment under the vacuum of atmosphere surroundings


Furnace Structure1.Double layer steel structure.2.High purity Al2O3 fibrous insulation with Max. energy saving3.Equipped with double cooling fan, to make sure furnace body temperature low than 60℃
Model No.CY-O1200-80IIIC
DisplayLED button controller or LCD touch panel( 5” &7” for your choice)
Limiting temperature1200℃
Working temperature≤1150℃
Heating rate0-20℃/min, adjustable
Heating zone length200+400+200mm, or as customized
Heating zoneThree heating zone
Max outer tube diameter50mm,60mm,80mm,100mm for choice
Tube length for use1000mm,1200,1400mm for option
Temperature accuracy± 1℃
Heating elementFe-Cr-Al alloy adopt by Mo
Thermal coupleK TYPE
Max Power6 kw
Temperature controlSeparately controller, each controller has 30 steps programmable with PID automatic control
Chamber materialAlumina fiber
Over-temperature alarmYes
Over-current alarmYes
Working voltage: 220V 50Hz, or as customized
