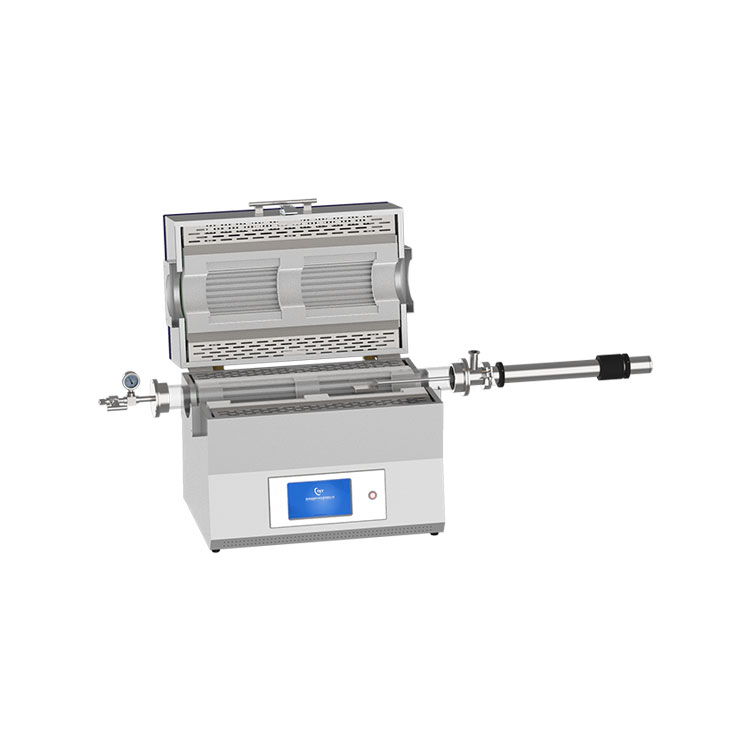

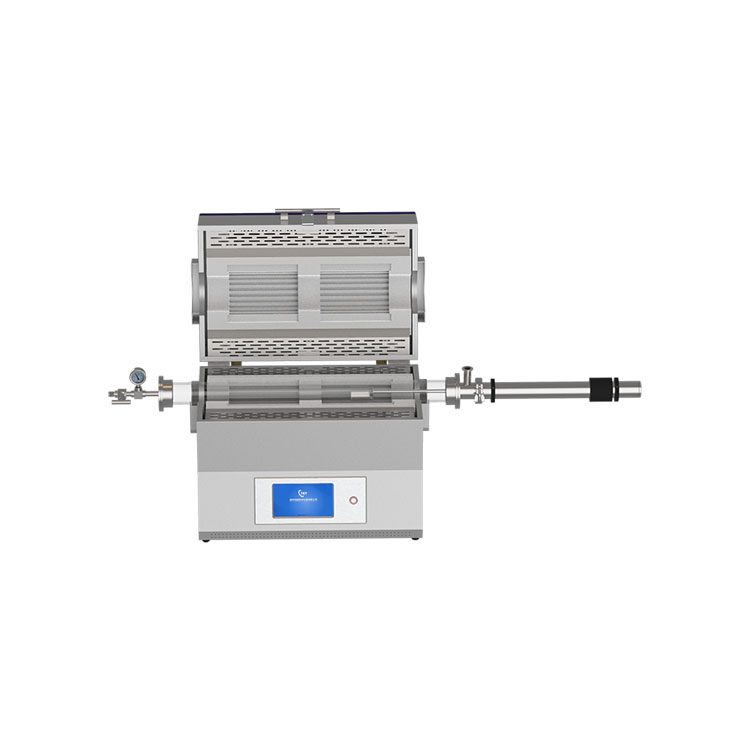

Double heating zone tube furnace with magnetic push rod

    The dual-temperature zone tube furnace is equipped with a magnetic push rod, which has an exquisite structure and high reliability, and can perform displacement operation on the sample in the tube while keeping the furnace tube vacuum tight.

The dual-temperature zone tube furnace is equipped with a magnetic push rod, which has an exquisite structure and high reliability, and can perform displacement operation on the sample in the tube while keeping the furnace tube vacuum tight. Combined with separate temperature control in dual temperature zones, it can realize a variety of heat treatment processes for users and is an ideal equipment for material research and material processing.

Technical parameters of tube furnace:

Item

Details

Supply voltage

AC220V, 50Hz

Maximum power

4KW

Heating rate

Maximum 20℃/min, recommended ≤10℃/min

Operating temperature

Maximum temperature≤1200℃; continuous working temperature≤1150℃

Heating temperature zone

Dual temperature zone 200mm+200mm

Furnace tube parameters

Length 1000mm O.D 60mm I.D 57mm

Temperature control accuracy

PID temperature control accuracy ±1℃

Thermocouple

K type thermocouple

Temperature control method

Separate temperature control in dual temperature zones

AI-PID 30-segment process curve, can store multiple

With overheating and thermocouple failure protection

Furnace chamber material

High purity alumina furnace chamber

Vacuum interface

KF16

Air inlet

6.35 Ferrule connector

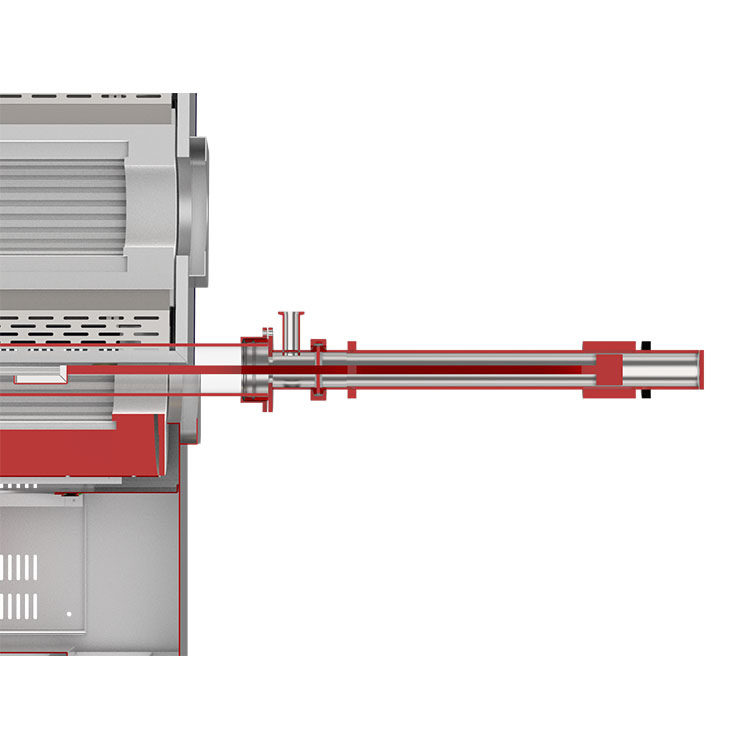

Magnetic push rod

Moveable length 500mm

Can shift samples in two temperature zones

To meet customer's heat treatment process

Using magnetic coupling connection,

Can ensure the vacuum of the furnace tube while pushing the sample

Dimensions

1300mm x 420mm x 550mm
