Rocking Tube Furnace with Quartz Tube & Vacuum Flange

Rocking Tube Furnace with Quartz Tube & Vacuum Flange

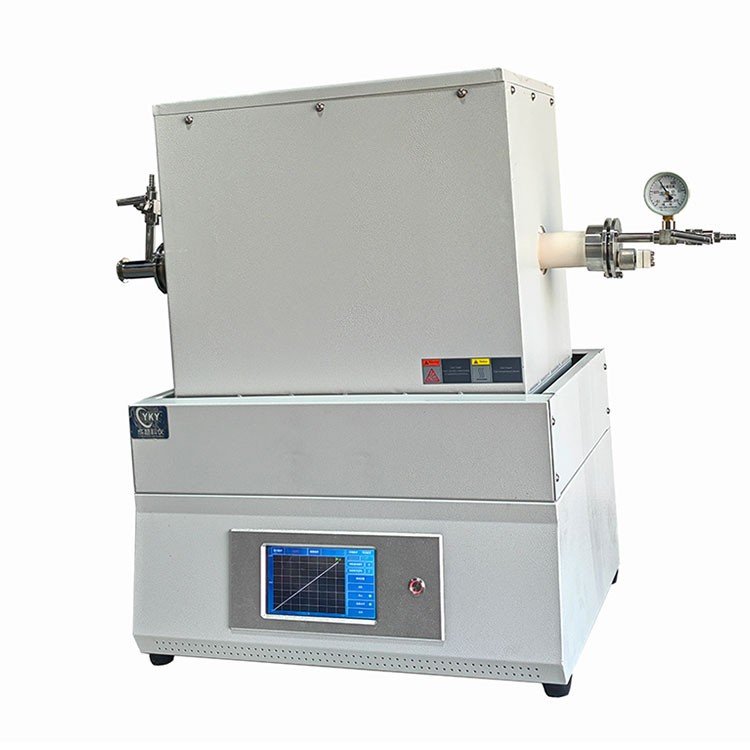

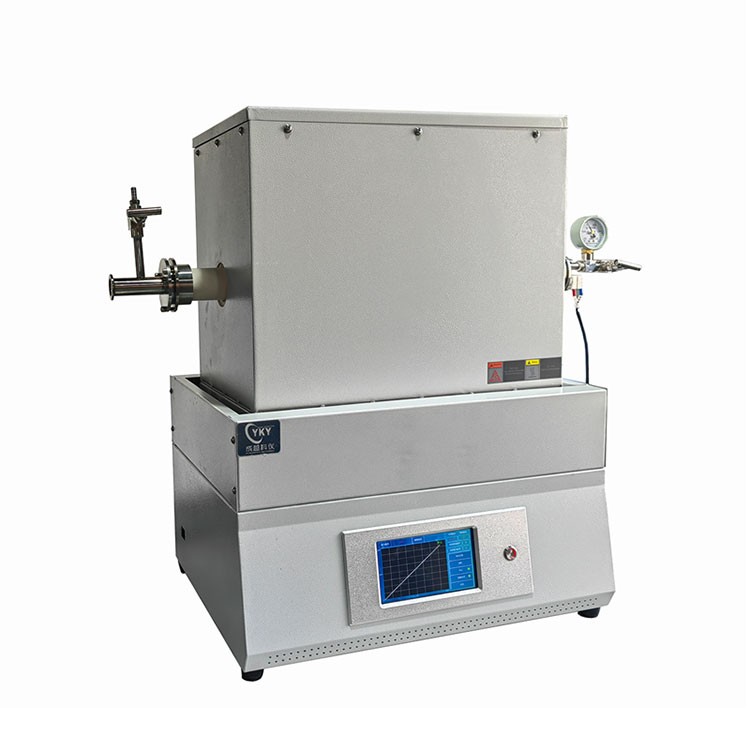

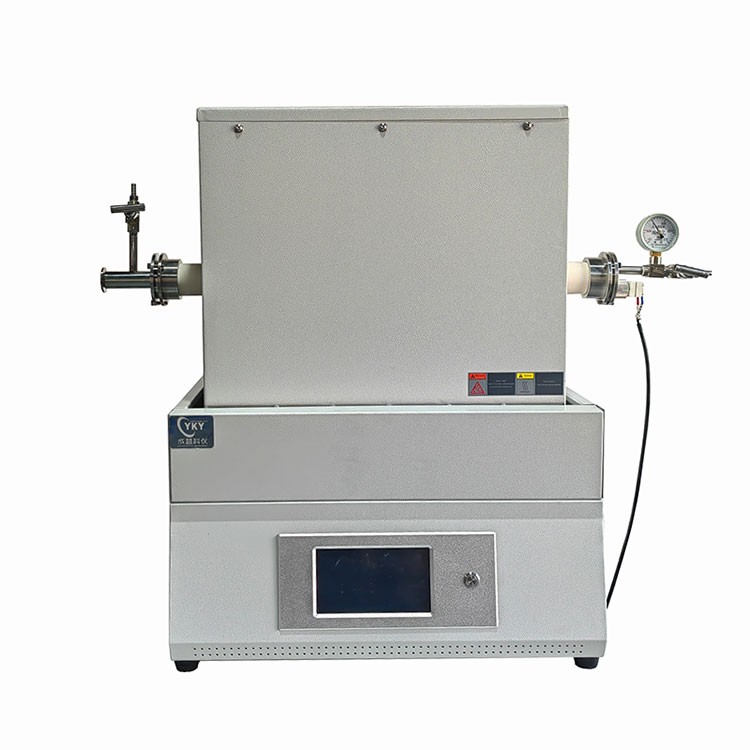

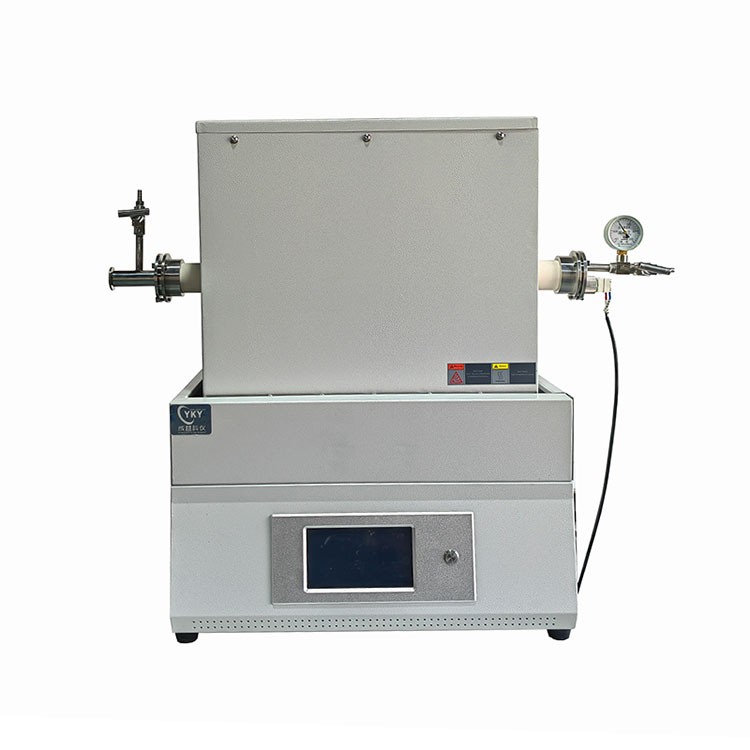

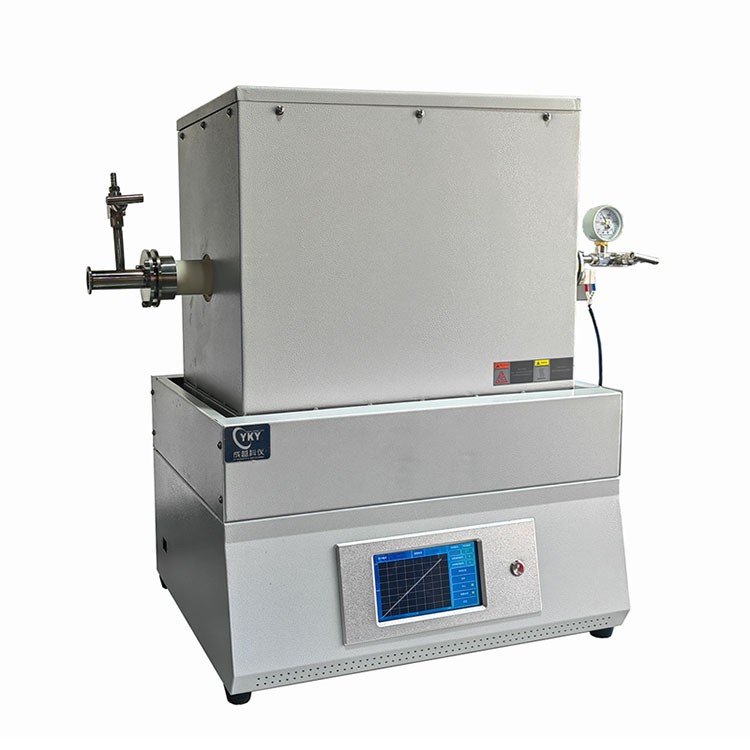

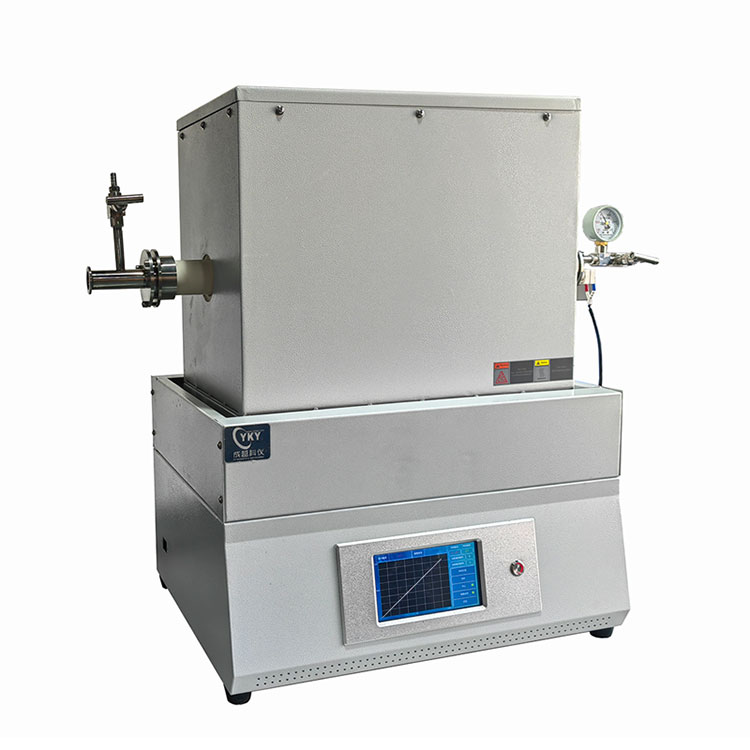

CY-1400X-SK is a compact rocking quartz tube furnace (1~2" optional ),which is which is designed to stir samples during heating or melting to get a more uniform reaction. The rocking stage can set rocking frequency and time for automatically running.It is useful tool for preparation thermoelectric material and growing 2D crystals.

Inquire Now Next Product

Rocking Tube Furnace with Quartz Tube

rocking quartz tube furnace technical parameter：

Furnace Structure	Energy saving high purity Al2O3 fibrous insulation liner Stainless steel shells with adjustable height
Power	AC 220V single phase
Working Temperature	Max. Temperature: 1400 °C (< 1 hr) Continuous working temperature: 1300 °C Max. Heating Rate: 10°C /min
Heating Zone	Heating Zone Length: 12" (300mm) Constant Temperature Zone: 3.1" (80mm)
Temperature Controller	PID automatic control and auto-tune function. 30 programmable segments for precise thermal processing. Built-in protection for the over-heated and broken thermocouple. Temperature Accuracy: +/- 1 °C. S type thermocouple.
Processing Tube	*Premier Grade alumina tube (2 pieces): 2 inch outer diameter. Two fibrous ceramic tube blocks are included for blocking heat radiation generated from the tube center. 2" Vacuum Flange set Two fibrous ceramic tube blocks are included for blocking heat radiation generated from tube center.
